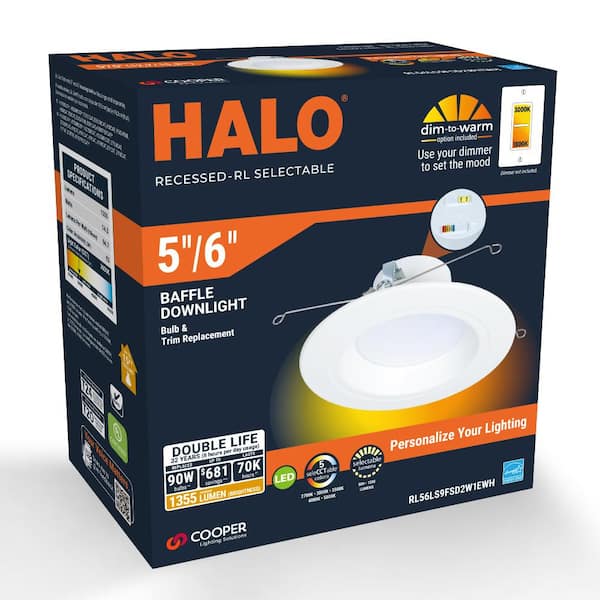

RL56 Series 5/6 in. Recessed LED retrofit module Selectable CCT and Lumens, Integrated LED Matte White

Apply Now
Pay $0.69 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Recessed LED downlight with a round trim
  • Compatible with select 5 in. and 6 in. aperture housings
  • 6 color temperature options, shower trim
  • View More Details
0 in stock
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
Product Details

About This Product

The RL56 is a 5/6 in. aperture recessed LED baffle trim retrofit module suitable for new construction, remodel and retrofit installation. This product is perfect for residential applications and easily installs in existing 5 in. and 6 in. housings. The field-selectable color temperature switch allows users to chose between 6 different color temperatures for the desired application need. Choose from 2700K warm light to 5000K cool light or set the mood using the Dim-to-Warm option. This product delivers 600 nominal Lumens, great for standard ceiling heights. The RL series is air-tite, wet location Listed and perfect for virtually all residential applications.


  • 5/6 in. aperture
  • Recessed baffle trim
  • Retrofits into existing 5 in. and 6 in. housings
  • 6-selectable color temperature options: dim-to-warm, 2700K, 3000K, 3500K, 4000K, 5000K
  • Dim-to-warm technology included: use your dimmer to warm color temperature from 3000K to 1800K
  • Selectable lumens: choose between 900 and 1200-nominal Lumens
  • 120-Volt input, phase cut dimming to 5%
  • Air-tite and wet location Listed
  • Perfect for residential applications
  • Click here for more information on Electronic Recycling Programs
  • Return Policy

Product Information

Internet # 324803704

Model # RL56LS9FSD2W1EWH

Store SKU # 1009458815


Dimensions: H 3.11 in, W 7.26 in, D 7.26 in


Actual Aperture Width (in.)

6 in

Assembled Depth (in.)

7.26 in

Assembled Height (in.)

3.11 in

Assembled Width (in.)

7.26 in

Housing Height (in.)

7.24 in

Maximum Cutout Size (in.)

6.38 in

Nominal Lens Aperture Size

5 in.,6 in.

Trim Size (Width)

7.25 in.


Actual Color Temperature (K)

2700, 3000, 3500, 4000, 5000

Color Family


Color Rendering Index (CRI)


Color Temperature

Warm White, Soft White, Neutral White, Bright White, Daylight



Compatible Bulb Type

Integrated LED

Damp/Wet Rating

Damp Rated, Wet Rated


Air Tight, Color Changing, Dimmable, Retrofit

Fixture Color/Finish


Fixture Material


IC Rating

IC Rated


Mounting Brackets


Indoor, Outdoor

Integrated LED Type


Maximum Bulb Wattage (W)

14.3 W

New Construction or Remodel

New Construction, Remodel

Package Quantity


Product Weight (lb.)

0.810 lb

Recessed Lighting Type

Housing Required



Trim Type



Line Voltage

Watt Equivalence


Warranty / Certifications

Certifications and Listings

Energy Star, ROHS, Title 20, Title 24, UL Certified

Manufacturer Warranty

5 Year limited

Questions & Answers

Q:Your dimming guide lists Lutron MACL-153-M dimmers as compatible, but everything flickers when turning on. Lutron says their testing shows your light is not compatible, but yet you show this dimmer on your list. What am I supposed to do now?
by|Mar 28, 2024
1 Answer
Answer This Question

A:  Please disconnect the dimmer and see if the lights still flicker. If they do then the lights are going bad, please replace the fixture with the help of the postsale consumer team, if the fixture won't flicker then it's a dimmer issue please try using another listed dimmer.

by|Apr 1, 2024
    Q:I can't find any information on the RL56 series recessed LED trim of how long they are supposed to last. Your wafter lights have a 50,000 hour rating, but I can't find anything about a hour rating on this product.
    by|Mar 26, 2024
    1 Answer
    Answer This Question

    A:  Please note that RL56LS9FSD2W1EWH has 50,000 hours of rating too.

    by|Apr 1, 2024
      Q:Does it come in bronze or have an optional bronze trim ring?
      by|Jan 24, 2024
      1 Answer
      Answer This Question

      A:  Please note that RL4LS9FSD2W1EWH is offered in Tuscan Bronze trim, refer to the below link for more information. https://images.thdstatic.com/catalog/pdfImages/d7/d73a2fc0-e721-4eb0-9a15-446aad9d9def.pdf

      by|Jan 29, 2024
        Q:Does halo offer an extended trim accessory for the retro 6”recessed fixture? I’m replacing a fixture that measures 7-1/2” diameter.
        by|Jan 9, 2024
        1 Answer
        Answer This Question

        A:  Please note OT400P and OT403P are both compatible with the RL56. Refer to the below link for more details. https://www.cooperlighting.com/api/assets/v1/file/Signify/content/f241e9dc715d4a43a8cead41007bcb7a/Halo-Accessories.PDF

        by|Jan 11, 2024
          Showing 1-4 of 14
