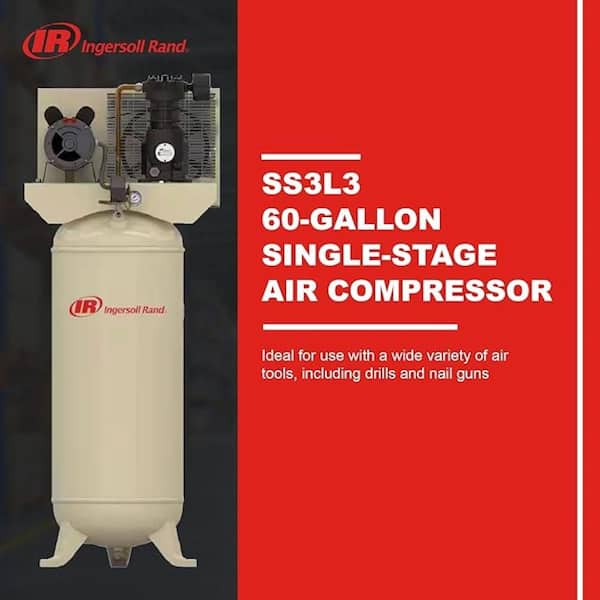

60 Gal, 3 HP Single Stage Stationary Electric Compressor

$899.99
Apply Now
$undefined.00 /mo† suggested payments with months† financingApply Now
  • 230/1/60 135PSI, 11.3CFM@90PSI 135MAX PSI 60 Gal Tank 3HP Motor
  • Manual Drain, 100% Continuous Duty, Auto Start/Stop, ASM in USA
  • Electronic Drain Valve *Sold Separately* Home Depot # 313338537
  • View More Details
icon
Free & Easy Returns In Store or Online
Return this item within 30 days of purchase. Read Return Policy

Product Details

About This Product

Designed for any environment, our 3 HP single stage compressor is ideal for almost anyone, from individuals that thrive on do-it-yourself projects to the professional air compressor user. When performance is defined by maximum operating pressure, increased air flow and extended duty cycles, Ingersoll Rand is the product of choice. You will get a compressor that features maximum air power, reliable precision engineered components and a durable design that is built to last.

Highlights

  • 100% continuous duty, weather resistant powder-coat finish
  • Manual drain system
  • Manual thermal overload protection of the 3HP motor
  • Open feet design for ease of drain
  • Easy to change filter for clean air intake
  • Automatic stop and start pressure switch
  • 230-volt, single phase, 60 Hz
  • 60 gallon vertical tank
  • Twin cylinder
  • 1/2 in. NPT outlet
  • 11.3 CFM @ 90 PSI
  • 135 MAX PSI
  • Assembled in the USA
  • 78 dBA
  • Requires .47 Liters of All Season Select Lubricant *SOLD SEPARATELY* Home Depot Item# 312894970

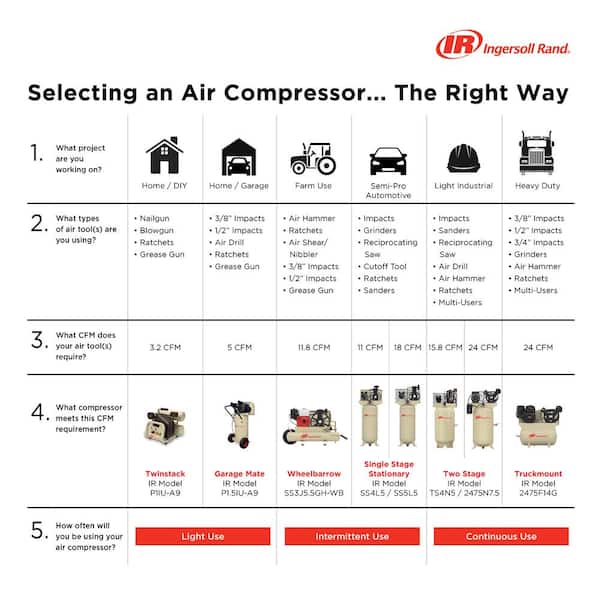

  • Need help? CLICK HERE to view our Air Compressor Buying Guide
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 202889695

Model # SS3L3

Specifications

Dimensions: H 23 in, W 23 in, D 20 in

Dimensions

Product Depth (in.)

20 in

Product Height (in.)

23 in

Product Width (in.)

23 in

Details

Air Delivery SCFM @ 40PSI

11.3

Air Delivery SCFM @ 90PSI

10.3

Amperage (A)

14.7 A

Application Use

Air Brushing, Blow Cleaning, Bolting, Brad Nailing, Cutting, Drilling, Finish Nailing, Framing Nailing, Grinding, HVLP Painting, Hobby Nailing, Hobby Painting, Inflation, Roof Nailing, Sanding, Spraying, Stapling, Surface Prep, Wrenching

Battery Amp Hours

No Battery

Charger Included

Charger Not Included

Compressor Tank Capacity (gal.)

60 gal

Compressor Type

Industrial

Compressor Volume Rating

Standard

Compressor/Air Tool Features

Tank Pressure Gauge

Condition

New

Decibel Rating (Outdoor)

85 dBA

Horsepower (hp)

3 hp

Included

No additional components or accessories are included

Lubrication Type

Oil

Maximum Pressure (PSI)

135 PSI

Number of Total Batteries Included

0

Phase Type

1 Phase

Portable

No

Power Source

Electric

Power Type

Corded Electric

Product Weight (lb.)

300 lb

Reconditioned

No

Returnable

30-Day

Stage Count

Single Stage

Tank Material

Steel

Tank Style

Vertical

Tools Product Type

Air Compressor

Voltage (V)

230 V

Voltage (v)

230v

Warranty / Certifications

Certifications and Listings

CSA Listed

Manufacturer Warranty

12 months parts and labor

Questions & Answers

26Questions
caret
Q:Is this ASME rated tank?
by|Jun 4, 2023
1 Answer
Answer This Question

A:  Yes

by|Apr 4, 2024
    caret
    Q:does oil come with the new compressor
    by|Feb 12, 2023
    1 Answer
    Answer This Question

    A:  No, Ingersoll Rand All Season Select would need to be purchased separately or a startup kit which would include oil and the filter

    by|Apr 5, 2024
      caret
      Q:Is this a twin cylinder or single cylinder?
      by|Jan 26, 2023
      1 Answer
      Answer This Question

      A:  Twin Cylinder

      by|Apr 4, 2024
        caret
        Q:Can supply be 208V single phase?
        by|Jan 9, 2023
        1 Answer
        Answer This Question

        A:  This unit is 230-1-60 voltage. If you have any further questions our technical team is available at 800-247-7378

        by|Apr 22, 2024
          Showing 1-4 of 26

          Customer Reviews

          4 out of 5

          • 4 out of 24 reviews
          • 75% recommend this product
          Filter by:
          Showing 1-10 of 24 reviews
          So far, so good.
          Came packaged well and in excellent condition. After installation it seems to be working well. Lost some pressure overnight but nothing substantial. Not much use on it yet so can’t really comment on durability. It is shipped without oil in the compressor and none supplied. You must purchase oil separately and fill before start up. There is no regulator, you get tank pressure out of the outlet. There is no side outlet on the tank like many others have, just at the top pressure switch. The condensate drain is inconvenient at the bottom of the tank, had to remove and re-pipe out to the side. There is a quick start booklet included but you must go to IR website for the owner’s manual and warranty. So far haven’t been able to download and print manual yet.
          by
            • Recommended
            2 found this review helpful
            by
            • Verified Purchase
            by
            • Verified Purchase
            by
            • Verified Purchase
            shipped 200 miles away from me and wont redirect so i...
            shipped 200 miles away from me and wont redirect so i canceled
            by
            • Verified Purchase
            by
            • Verified Purchase
            by
            • Verified Purchase
            Arrived in perfect condition, excellent condition & Superior quality....
            Arrived in perfect condition, excellent condition & Superior quality.
            by
            • Verified Purchase
            by
            • Verified Purchase
            3HP compressor
            Great compressor. Easy ordering process. Would buy over and over again
            by
            • Verified Purchase
            • Recommended
