Model # 31860

1-3/8 in. Carbide Hole Cutter

$37.99
Apply Now
Pay $12.99 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Carbide Hole Cutter precisely cuts material up to 3/16 in. thick
  • Cuts stainless steel, mild steel, iron, copper, and brass sheet
  • Perfect for 1 in. conduits and pipes
  • View More Details
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
Product Details

About This Product

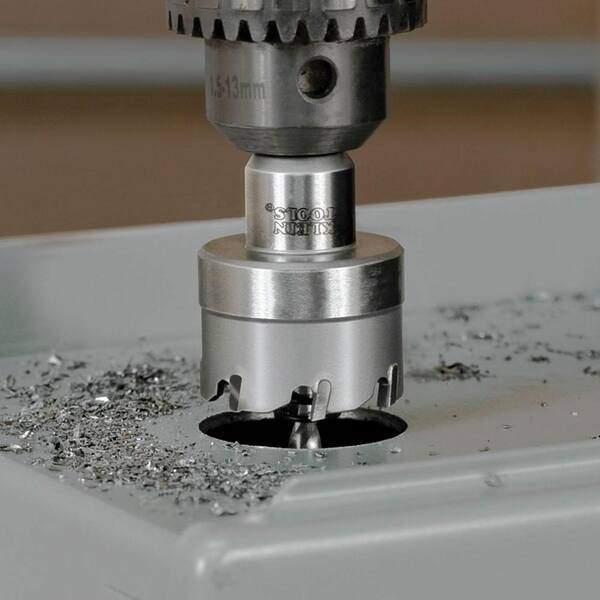

This carbide hole cutter cuts quick, precise holes in a variety of materials. Integrated flange prevents the operator from drilling beyond the sheet metal. Split point pilot drill bit prevents bit walking.

Highlights

  • Heavy duty, durable carbide hole cutters for long life
  • Cuts quick, precise holes in stainless steel, mild steel, iron, copper and brass sheet up to 3/16-Inch (0.5 cm) thick
  • Split point pilot drill bit prevents bit walking
  • Integrated flange prevents the operator from drilling beyond the sheet metal
  • Conduit and pipe sizes: 1-Inch (2.5 cm)
  • Uses replacement pilot bit 31874
  • Click here for more Klein Tool products
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 203499103

Model # 31860

Additional Resources

Shop All Klein Tools

Specifications

Dimensions

Bit Diameter

1-3/8 in

Bit Length (in.)

4.7

Drilling Depth (in)

0.63

Hole Saw Diameter (in)

1-3/8"

Shank Diameter

3/8 in

Details

Arbor included

Yes

Arbor Size

3/8

Bit Material

Carbide

Drill Bit Type

Hole Saw

Drill Bit Type(s) Included

Hole Saw

Individual/Set

Individual

Material Cut

Multi-Purpose

Min Chuck Size Required

3/8 In.

Pilot Bit Included

Yes

Returnable

90-Day

Shank Style

Hex

Teeth Per Inch

N/A

Tools Product Type

Power Tool

Questions & Answers

4Questions
caret
Q:Where replacement that?s item
by|Sep 5, 2022
1 Answer
Answer This Question

A:  Replacement pilot bits are available, Klein Tools model # 31874

by|Sep 6, 2022
    caret
    Q:Can this be used with a hand drill? Or is it designed to be used with a drill press? If it works with a hand drill, does it require an arbor?
    by|Feb 1, 2021
    2 Answers
    Answer This Question

    A:  I used a battery drill. Worked perfect.

    by|Sep 21, 2021

      A:  Yes, Klein Tools’ Carbide Hole Cutters can be used with a hand drill. They do not require an arbor.

      by|Feb 1, 2021
        caret
        Q:Will this cut C4 channel steel? How long will it last if it can be used for C4 channel steel?
        by|Jun 6, 2020
        1 Answer
        Answer This Question

        A:  The Klein Tools model # 31860 Carbide Hole Cutter is designed to cut holes in stainless steel and mild steel, iron, copper, and brass sheet up to 3/16 in. thick.

        by|Dec 26, 2023
          1 found this answer helpful
          caret
          Q:i want to know the inside diameter of the holes saw. I want to use the slug. I am looking for 1-3/16 diameter. Anyone help me ? Thanks
          by|Dec 6, 2019
          2 Answers
          Answer This Question

          A:  I don't have an exact answer, but the cutter blades are a bit less than 1/8 " wide. So, times 2, minus 1 3/8, the slug is about 1 1/8". It will have a 1/4' hole in the middle, and the edges of the slug will taper.

          by|Apr 1, 2020

          A:  The inside diameter is approximately 1.175”

          by|Dec 9, 2019
            1 found this answer helpful
            Showing 1-4 of 4

            Customer Reviews

            4.1 out of 5

            • 4.1 out of 11 reviews
            • 100% recommend this product
            Filter by:
            Showing 1-10 of 11 reviews
            Holy hole cutter!! I bought this for its low price, and it performed above my expectations. I b...
            Holy hole cutter!! I bought this for its low price, and it performed above my expectations. I bought a stainless steel kitchen sink with one hole, but I needed to have 5 more holes for a regular faucet, side sprayer, and hand soap and dish soap dispensers. I used low rpm and some 3 in 1 oil with the drill/hole cutter. It worked very well. The holes have clean edges, and took only about 1 minute each. The spring that's over the drill bit is a great feature! It pushes the cut-out disk out of the hole cutter, so you don't have to pry it out after each hole. The two-step starter drill bit really makes the process easier. I probably will never have a need for it again, but it still looks like new. Great tool for the price!
            by
            • Verified Purchase
            • Recommended
            1 found this review helpful
            A step up from a hole saw, when more precise openings are required, this cutter does the job. The...
            A step up from a hole saw, when more precise openings are required, this cutter does the job. The milling type cutting faces of the tool make quick work of precise hole cutting, compared to a typical hole saw. The tool is provided with an hex key, for replacement of the pilot bit (p/n 31874), should that be necessary. Although my drill press could not be slowed down to the recommended speed (270 rpm), there was only minimal chatter and the final hole was clean and almost burr free, compared to a conventional hole saw, which left a ragged edge on the circumference of the hole. Even at the excessive rpm used, there was no visible damage to the teeth of the cutter after making the hole in the steel test piece. The integral spring "pops" the slug out as soon as the cutter breaches the bottom of the hole.
            by
            • Recommended
            Incredible! Cut thru 3/16 plate like a hot knife thru...
            Incredible! Cut thru 3/16 plate like a hot knife thru butter. Still has sharp as new.
            by
              the tool is good but it took forever to get...
              the tool is good but it took forever to get it shipped from wherever it's coming from to my local Home Depot store. By the time I received the 3pcs of 1-3/8" Carbide hole cutter, I had already bought 3 of the same size/different brand hole cutter from a different vendor and got the job done. Shipping is HD's weakest link.
              by
              • Verified Purchase
              This did a great job of cutting a clean hole...
              This did a great job of cutting a clean hole through a 4mm thick stainless steel sink. Use a cutting oil like Tap Magic and a center punch to make sure you get started properly. Stop every minute or so to brush out the shavings and apply more oil and it should cut through cleanly.
              by
              • Verified Purchase
              The pilot bite broke as it hit aluminum frame...
              The pilot bite broke as it hit aluminum frame
              by
              • Verified Purchase
              This was ordered for a neighbor. He has used...
              This was ordered for a neighbor. He has used these in the past and was happy it came so quickly.
              by
              • Verified Purchase
              Delivery was too slow so I had to return the...
              Delivery was too slow so I had to return the item instead of use it. I wound up using a less quality product instead and was disappointed in having to do so.
              by
              • Verified Purchase
              Great cutter, works well for the need we had.
              Great cutter, works well for the need we had.
              by
              • Verified Purchase
              • Recommended
              Way better than a hole saw
              Way better than a hole saw
              by
              • Verified Purchase
              • Recommended
