Internet #300859679

Model #CL330

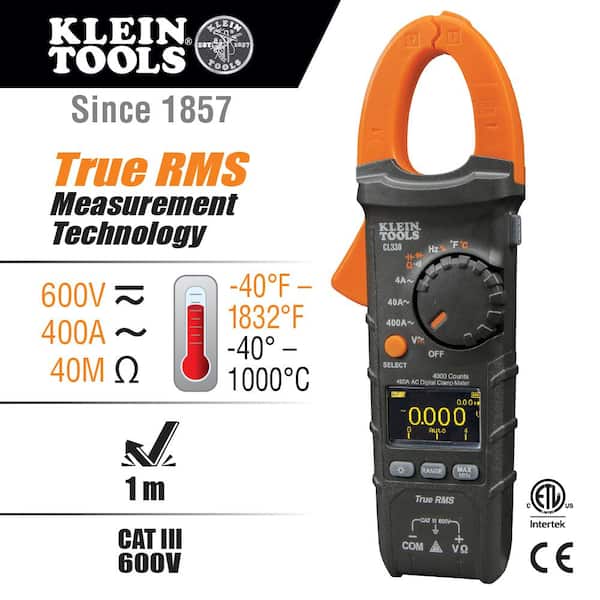

400A AC Auto-Ranging Digital Clamp Meter

  • Measures current, voltage, temperature, resistance and continuity
  • Employs automatically ranging TRMS technology for high accuracy
  • Features a bright, high- visibility dual-line OLED display screen
  • See More Details

Frequently Bought Together

+
+
Price:
$8974

Product Overview

Klein Tools CL330 is an automatically ranging True Root Mean Square (TRMS) digital clamp meter that measures AC current via the clamp, AC/DC voltage, resistance, continuity, frequency, capacitance and tests diodes via test-leads and temperature via a thermocouple probe. It features a super bright high visibility dual-line OLED display screen that optimizes view ability in dark or bright environments and when viewed at angles far away from normal to the display.
  • California residents
  • Features best-in-class high-visibility dual-line OLED display screen, which presents information in reverse contrast to standard meters
  • High-visibility in reduced ambient lighting, as well as bright outdoor environments and at acute angles to display
  • Provides all common measurements such as AC current, AC/DC voltage, continuity, resistance, capacitance, frequency, diodes and temperature
  • True RMS measurement technology
  • Dual-mode display can present simultaneous measurements
  • Bar graph emulates performance of an analog meter for visualizing fast moving events
  • Rugged Klein 'tough meter' industrial design stands up to jobsite demands
  • Includes test leads, K-type thermocouple, 3xAAA batteries and a protective carrying case
  • CAT III 600-Volt safety rating
  • Click Here to Learn More on How to Use Electrical Testers and Meters
  • Shop all Klein Tools multimeters here



  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

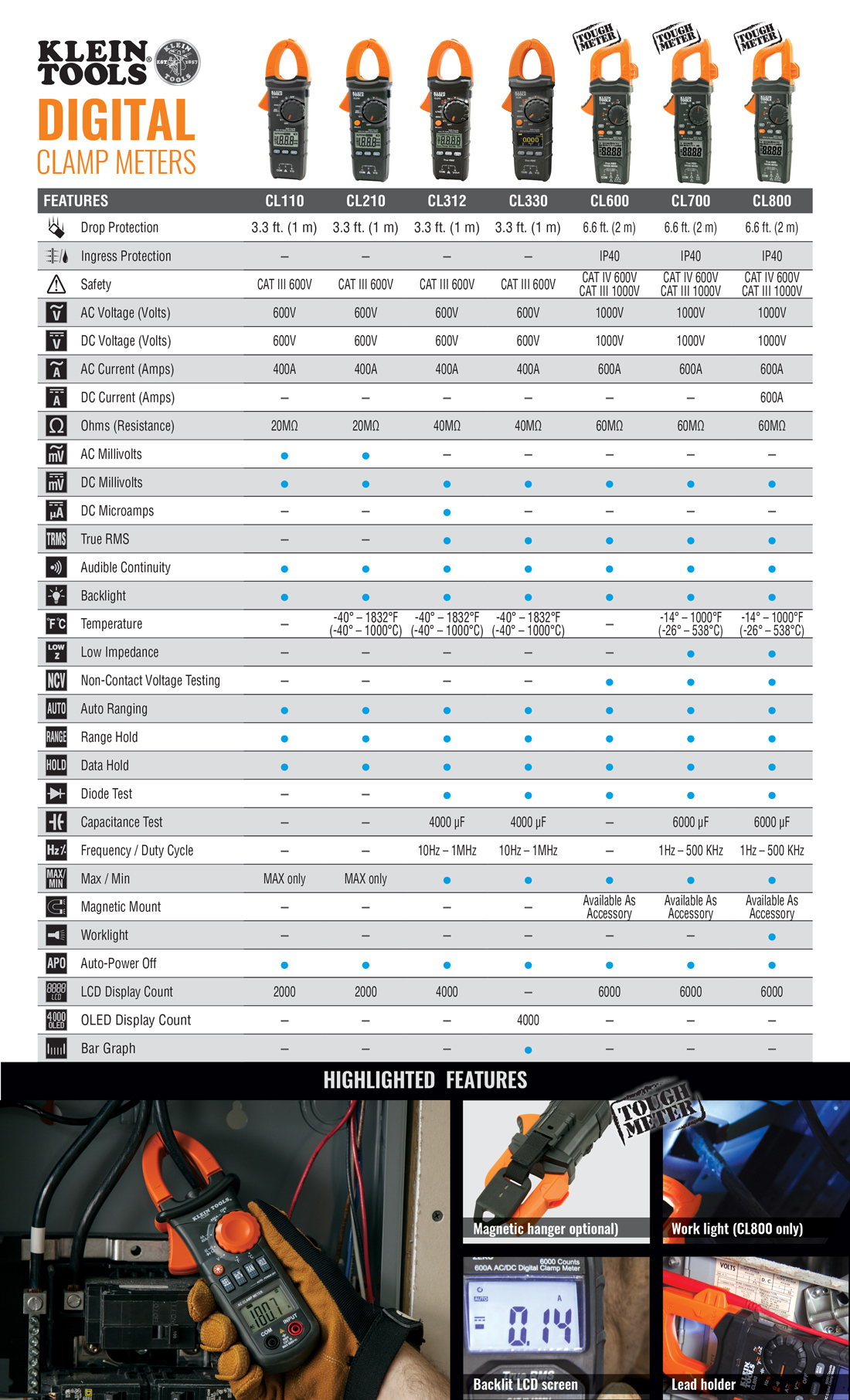

Compare Similar Multimeters

600 Amp AC True RMS Auto-Ranging Digital Clamp Meter
current product
400A AC Auto-Ranging Digital Clamp Meter
600 Amp AC True RMS Auto-Ranging Digital Clamp Meter with Temp600 Amp AC/DC True RMS Auto-Ranging Digital Clamp Meter
BrandKlein ToolsKlein ToolsKlein ToolsKlein Tools
Name600 Amp AC True RMS Auto-Ranging Digital Clamp Meter400A AC Auto-Ranging Digital Clamp Meter600 Amp AC True RMS Auto-Ranging Digital Clamp Meter with Temp600 Amp AC/DC True RMS Auto-Ranging Digital Clamp Meter
Price
$6997
$79.99
Save $10.02 (13%)
$8974
$9997
$13997
Ratings
(58)
(27)
(75)
(124)
Test Meter TypeClamp/MultimeterClamp/MultimeterClamp/MultimeterClamp/Multimeter
Display TypeLCDLEDLCDLCD
Electrical Tools FeaturesAuto Ranging,Backlit,DC Polarity Indicator,Data Hold,Handheld,Integral Lead Storage,Interchangeable LeadsAudible Alert,Auto Ranging,Backlit,DC Polarity Indicator,Data Hold,Dual Voltage Indication,Handheld,Interchangeable LeadsAudible Alert,Auto Ranging,Backlit,DC Polarity Indicator,Data Hold,Handheld,Integral Lead Storage,Interchangeable LeadsAudible Alert,Auto Ranging,Backlit,DC Polarity Indicator,Data Hold,Handheld,Integral Lead Storage,Interchangeable Leads
Control TypeDigitalDigitalDigitalDigital
Voltage (volts)100060010001000
View ProductView ProductView ProductView Product

Specifications

Dimensions

Product Depth (in.)
3.03 in
Product Height (in.)
1.64 in
Product Width (in.)
1.61 in

Details

Battery Power Type
Alkaline
Battery Size
AAA
Category Rating
III
Control Type
Digital
Display Type
LED
Electrical Tools Features
Audible Alert,Auto Ranging,Backlit,DC Polarity Indicator,Data Hold,Dual Voltage Indication,Handheld,Interchangeable Leads
Measures/Detects
Amperage,Capacitance,Duty cycle,Frequency,Resistance,Temperature,Voltage
Number of Batteries Required
3
Number of Functions
12
Number of Ranges
32
Product Weight (lb.)
0.9
Returnable
180-Day
Test Meter Type
Clamp/Multimeter
Tools Product Type
Test Meter
Type
Clamp
Voltage (volts)
600

Warranty / Certifications

Manufacturer Warranty
Please refer to the attached warranty document in the Product Overview section above under Info & Guides.

Questions & Answers

2Questions5Answers

What meter is the one pictured above on sale, CL110, or a CL210?

Asked by Aquaman January 3, 2020
1
Answer

CL330

I am looking for a muti-meter that can measure as low as 1 to 12 volts

Asked by patrick December 22, 2018
4
Answers

This meter will do the job. The bar graph is really helpful

Customer Reviews

  • 27 Customer Reviews
  • 4.6 out of 5 stars overall
92% of customers recommended.
Overall Ratings
5star-icon(20)
4star-icon(5)
3star-icon(0)
2star-icon(1)
1star-icon(1)
Sort By:
Works great
Works great
Was this helpful?
0
0
At first looked good ,clamps measured ok ,but then I tried to check fuses in ac box and one fuse ...
At first looked good ,clamps measured ok ,but then I tried to check fuses in ac box and one fuse was ok but the other one was burned ...not ,my friend checked it with fluke meter and easily showed that both fuses were good ,test leads are not good at all ,meter might be fine but I'm not buying it so I have to buy better test leads ,returned it yesterday
Was this helpful?
0
0
Easy To Use And Super Easy To Read
Quality :
5
Value :
5
Seeds Program Review
(What's this)
Finally, a meter that’s easy to read in all conditions. The screen is clear and bright with three brightness settings. No more struggling to get the screen in the right position to get a clear view of the readout. This Meter is about two thirds the size of other Clamp Meters and yet it offers all the features of the larger units and more. This unit is only 9" x 2.5" x 1.5" thick and weighs in at only 11 ounces. Also, the meter has most of the more common tests of a multimeter. From simple voltage tests thru measuring cycles per second, in circuit diode and capacitor tests. The meter even comes with a fast reading temperature probe. Since this meter is smaller it is very easy to operate with just one hand. The test selector dial and hold button are easy reach and use with just your thumb. The clamp lever is placed where your index finger lands on the meter to make opening the clamp easy. The meter does have an auto shut off after about 15 minutes of inactivity. The longer time limit before auto shutdown is nice since it gives plenty of time to accomplish longer tests and setups. The meter comes with a set of removable red and black probes that have removable high voltage tip shields. Also supplied, a nice zippered storage pouch to keep everything in one handy place. This is a very nice meter, that will do almost any test that are commonly needed. Its smaller, light weight and the readout is bright and large even in direct sunlight. Overall this meter is easy to use, very accurate and affordable. If you're looking for one main meter this is one to consider.
Was this helpful?
1
0
Reliable Everyday Pro Quality Clamp Meter
Quality :
5
Value :
5
Seeds Program Review
(What's this)
I am not a professional electrician but I consider myself to be an advanced amateur and often tackle small electrical projects that others shy away from. I have several conventional meters with probes but they are all invasive in that the probes have to be touching live electrical components to obtain a measurement. That means there is an increased element of risk to the user. This clamp meter negates the invasive requirement and measurements are obtained more easily, more quickly and more safely using the clamp. The auto range feature works great and in comparisons with other meters the measurements are accurate too and that gives me great confidence. The unit comes with probes so it can be used in the ‘old fashioned way’. The probes engage in the meter with a positive click and they have dust covers for protection when stored. A thermocouple temperature sensing attachment is also included. See a video of this in use here, https://youtu.be/1LeBoDxacJI This CAT III standard meter claims drop protection for one metre (36 inches) as well. That is good to know but not a feature I would want to test too often. The digital screen is easy to read, provides a ton of information and has three levels of brightness. It is easy to read the screen in a multitude of lighting conditions from twilight to bright sunshine and the corresponding conditions inside buildings. Two things niggle me though; the loud bleep that can be heard every time a change is made to the meter settings which cannot be turned down or off. On the other hand where electricity is concerned it is good to have as many warnings as is possible! And the Klein Tools splash screen that lights up the digital display when the tool is turned on. I don’t mind the manufacturer reminding me that this piece of brilliance is made by them but it stays on a little longer than I would like – about two seconds - and, if time was money for me, this tool could cost me a lot in the long run. Bear in mind, I shared the two items that annoyed me a bit and when I consider the whole package that Klein Tools have delivered here then I am very firmly a fan and recommend that others like me, advanced amateurs, and true professionals should definitely add this model CL330 to their new clamp meter shortlist.
Was this helpful?
1
0
An Excellent Value
Quality :
5
Value :
5
Seeds Program Review
(What's this)
I have two other more expensive clamp meters and the Klein CL330 held up very well in comparison with them. I verified that the accuracy of all functions was within specification, usually much closer than the tolerances allowed. This meter has many features not normally found in this price range - an OLED display that can be easily read in many lighting conditions and off-angle, the ability to capture min/max/ave readings for all functions, a carrying case with belt loop, a low 4A range setting for increased resolution, temperature sensor, capacitance range from 10pF to 4F, and HZ measurements to 1MHz. The meter can be used with one hand. I could easily reach all the controls using either my left or right hand alone. Be default it will automatically turn off after 10 minutes but that can be disabled. This meter doesn't measure DC current at all, and only measures AC current using the clamp, not the leads. It has a non-defeatable beep when functions are changed that I found slightly annoying.
Was this helpful?
3
0
Very nice
Quality :
4
Value :
4
Seeds Program Review
(What's this)
Klein CL330 400A Auto-Ranging Digital Clamp Meter. This is a very capable Meter very good OLED display. Well packaged with test leads, thermocouple, pouch and batteries. The clamp opens enough for easy wire measurements. Cat lll safety rating high impact plastic construction and feels good in your hand. The thermocouple is a little on the cheap side but is functional . This Meter has many functions to handle most electrical need from basic line voltage to Diode and capacitance tests . With auto Range it will do the basics for you. The data hold and audible continuity is also very helpful . The frequency duty cycle works well. AC,DC,AC CURRENT, DC MILLIVOLTS this Meter can do It all. In comparison to my very expensive Fluke the values are right on. I do love the display too. Another good tool for my everyday tool bag.
Was this helpful?
0
0
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
Was this helpful?
0
0
Good to go out the box...
Good to go out the box
Was this helpful?
0
0
Nice meter and it’s display is very easy to read....
Nice meter and it’s display is very easy to read. The ammeter jaws are a bit big for smaller spaces, but manageable if you take your time. My only negative is the case that was included. It is pretty cheap and has no padding at all. It would have been nice if it had just a little padding.
Was this helpful?
0
0
Product seems to work very well. I have a fluke that I had for the last 30 years and it serves me...
Product seems to work very well. I have a fluke that I had for the last 30 years and it serves me well for Automotive applications but this one has a few features that the fluke does not have. Hopefully it will hold as long! First impression is it looks to be well made and the screen is easy to read in all light situations. I give it a 4 rating because it looks good and for the price I paid it seems like a very good deal, but time will tell if the clamps hold up, they seem to be a little damage prone.
Was this helpful?
0
0
