Internet #204481243

Model # 554431

0010121544314

Little Giant

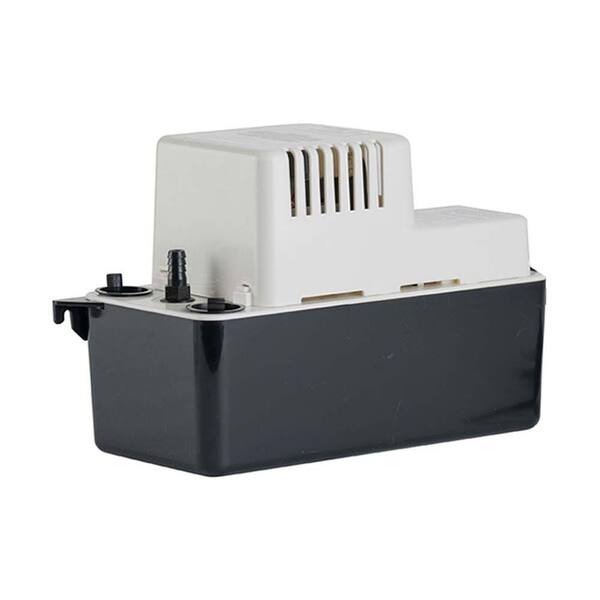

VCMA-20ULT 115-Volt Condensate Removal Pump

$ 55 23

Overview

The VCMA-20ULT has a 1/2 gal. capacity. Little Giant VCMA Series is ideal for collecting, detecting, and the automatic removal of condensate from air conditioning equipment, de-humidifiers, high efficiency furnaces, condensing boilers, and other equipment where an automatic drain pump is required. Also suitable for high efficiency oil and gas-fired condensing furnace and condensing boiler equipment.
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

The VCMA-20ULT has a 1/2 gal. capacity. Little Giant VCMA Series is ideal for collecting, detecting, and the automatic removal of condensate from air conditioning equipment, de-humidifiers, high efficiency furnaces, condensing boilers, and other equipment where an automatic drain pump is required. Also suitable for high efficiency oil and gas-fired condensing furnace and condensing boiler equipment.
  • 1/30 HP high performance motor
  • ABS tank, motor cover and volute
  • Stainless steel pump shaft
  • Snap-action pump switch
  • Removable 3/8 in. barbed check valve
  • Click here for more information on Electronic Recycling Programs
  • California residents see Prop 65 WARNINGS

Product Overview

Model #: 554431
Internet #: 204481243

The VCMA-20ULT has a 1/2 gal. capacity. Little Giant VCMA Series is ideal for collecting, detecting, and the automatic removal of condensate from air conditioning equipment, de-humidifiers, high efficiency furnaces, condensing boilers, and other equipment where an automatic drain pump is required. Also suitable for high efficiency oil and gas-fired condensing furnace and condensing boiler equipment.

  • 1/30 HP high performance motor
  • ABS tank, motor cover and volute
  • Stainless steel pump shaft
  • Snap-action pump switch
  • Removable 3/8 in. barbed check valve
  • Click here for more information on Electronic Recycling Programs
  • California residents see Prop 65 WARNINGS

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Key Features

Product Overview
Key Features
The VCMA-20ULT has a 1/2 gal. capacity. Little Giant VCMA Series is ideal for collecting, detecting, and the automatic removal of condensate from air conditioning equipment, de-humidifiers, high efficiency furnaces, condensing boilers, and other equipment where an automatic drain pump is required. Also suitable for high efficiency oil and gas-fired condensing furnace and condensing boiler equipment.
  • 1/30 HP high performance motor
  • ABS tank, motor cover and volute
  • Stainless steel pump shaft
  • Snap-action pump switch
  • Removable 3/8 in. barbed check valve
  • Click here for more information on Electronic Recycling Programs
  • California residents see Prop 65 WARNINGS

Product Overview

Model #: 554431
Internet #: 204481243

The VCMA-20ULT has a 1/2 gal. capacity. Little Giant VCMA Series is ideal for collecting, detecting, and the automatic removal of condensate from air conditioning equipment, de-humidifiers, high efficiency furnaces, condensing boilers, and other equipment where an automatic drain pump is required. Also suitable for high efficiency oil and gas-fired condensing furnace and condensing boiler equipment.

  • 1/30 HP high performance motor
  • ABS tank, motor cover and volute
  • Stainless steel pump shaft
  • Snap-action pump switch
  • Removable 3/8 in. barbed check valve
  • Click here for more information on Electronic Recycling Programs
  • California residents see Prop 65 WARNINGS

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Compare Similar Products
Brand Little Giant Little Giant Little Giant Little Giant
Name VCMA-20UL 230-Volt Condensate Removal Pump VCMX-20UL 115-Volt Condensate Removal Pump VCMA-20ULT 115-Volt Condensate Removal Pump EC-1K-DV 110/240-Volt Mini EC Series Condensate Removal Pump Kit for Indoor Ductless Mini Split Air Conditioner Units
Price
$54.13
$54.16
$55.23
$156.21
Ratings (3) (3) (1) (0)
View Product View Product View Product View Product

Specifications

Dimensions

Maximum Pumping Height (ft.)
20
Product Depth (in.)
11
Product Height (in.)
7.03
Product Width (in.)
5

Details

Amperage (amps)
1.5
Cord Length (ft.)
6
Features
No Additional Features
Housing Material
Thermoplastic
Included
No Additional Items Included
Inlet Connection
Plain end
Maximum Discharge Flow (gallons/hour)
48
Maximum Discharge Pressure (psi)
8.7
Maximum Horsepower (hp)
.03
Outlet Connection
Barb/rib
Power Type Required
AC
Product Weight (lb.)
5lb
Returnable
90-Day
Tank Capacity (gallons)
0.5
Voltage
115v

Warranty / Certifications

Certifications and Listings
CSA Certified
Manufacturer Warranty
Limited Warranty

Specifications

Dimensions

Maximum Pumping Height (ft.)
20
Product Depth (in.)
11
Product Height (in.)
7.03
Product Width (in.)
5

Details

Amperage (amps)
1.5
Cord Length (ft.)
6
Features
No Additional Features
Housing Material
Thermoplastic
Included
No Additional Items Included
Inlet Connection
Plain end
Maximum Discharge Flow (gallons/hour)
48
Maximum Discharge Pressure (psi)
8.7
Maximum Horsepower (hp)
.03
Outlet Connection
Barb/rib
Power Type Required
AC
Product Weight (lb.)
5lb
Returnable
90-Day
Tank Capacity (gallons)
0.5
Voltage
115v

Warranty / Certifications

Certifications and Listings
CSA Certified
Manufacturer Warranty
Limited Warranty

Questions & Answers

what is the differance between the 3 models of the VCMA-20 units?

what is the differance between the 3 models of the VCMA-20 units?
Asked by: norman
I am sorry but I do not have the necessary information to answer your question definitively. There are scores of variants in the VCMA series so I am not sure which 3 you are speaking about. If you pull up the spec sheet on the listing you will see specifics of many of the variations listed. I can tell you some of the common differences are, with or without discharge tube, 120 volts vs 240 volts, and with or without a safety switch.
Answered by: chris
Date published: 2017-01-16
  • y_2019, m_9, d_16, h_15CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.13
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_1
  • loc_, sid_204481243, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 8ms
  • QUESTIONS, PRODUCT

Customer Reviews

VCMA-20ULT 115-Volt Condensate Removal Pump is rated 4.0 out of 5 by 1.
Rated 4 out of 5 by from The pump was exactly what I wanted and identical to... The pump was exactly what I wanted and identical to the one that had failed after many.many years. My only complaint was the the drain tubing turned out to be about 2 feet short of what I needed, but it was easily remedied with the purchase of more tubing.
Date published: 2018-06-20
