#1 Home Improvement Retailer

Internet # 321505325

Model # DIYM218HPW00C12

Store SKU # 1010109603

DIY 18,000 BTU 1.5-Ton 2-Zone 21 SEER Ductless Mini-Split AC and Heat Pump with 9K+9K & 25,75ft Lines

$3723.53
/bundle
Apply Now
$undefined.00 /mo† suggested payments with months† financingApply Now
  • High-efficiency ductless mini split system: 22 SEER
  • Easy DIY mini split installation with pre charged R410A lines
  • Air handlers/lines: 9K,9K/25,75ft
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
Product Details

About This Product

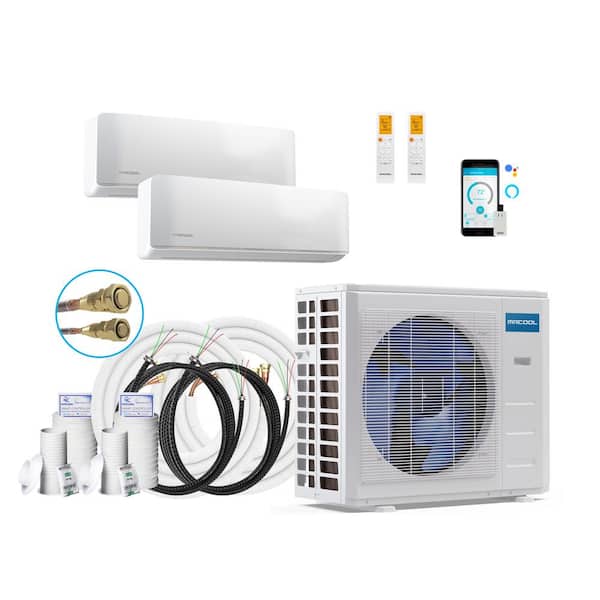

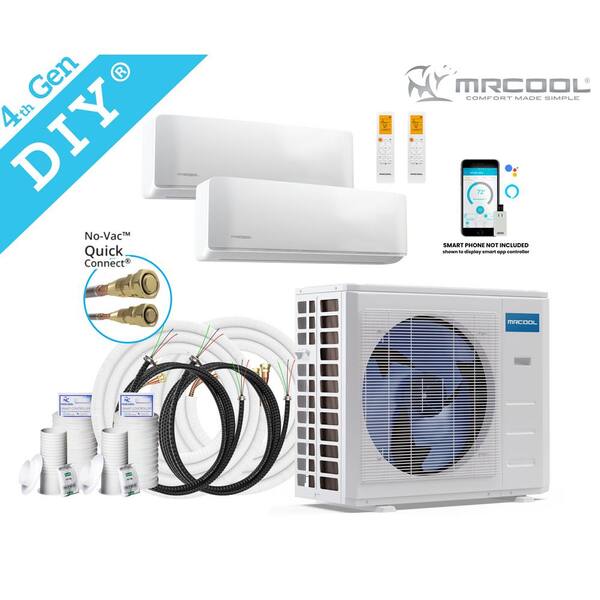

This MRCOOL DIY 18,000 BTU 1.5 Ton 2 Zone Ductless Mini Split Air Conditioner and Heat Pump with Wall Mounted Air Handlers bundle includes: 18K BTU Condenser, two 9K BTU Wall Mounts, 25/25/50ft. Quick Connect lines (1/4 X 1/2), 75ft. Coupler Kit(s) (1/4 X 1/2), 2 Remotes, and 2 Smart HVAC Wi Fi kits. Each 9K BTU Wall Mount is capable of heating and cooling up to 300 Sq Ft. MRCOOL offers an easy DIY ductless mini split installation with their patented DIY pre charged quick connect line sets that makes connecting refrigerant piping as simple as turning a few wrenches. The innovative Gold Fin anti corrosion technology makes this a great choice for those in coastal regions where corrosion is more likely. With a sleek design and quiet operation, the mini split wall mounted air handler is efficient and economic. Whether it be new construction, retrofit, greenhouse, server room or anything between they are designed to effectively and efficiently cool and/or heat your desired location. It can be operated with the included remote, Alexa, or Google Assistant. This system is backed by a 7 year compressor warranty and 5 year parts warranty.

Highlights

  • Energy Star Certified efficiency: 21.2 SEER2, 9.6 HSPF2
  • Designed to efficiently provide ductless heating and cooling up to a combined 750 Sq Ft
  • Easy DIY installation: pre-charged R 410A quick connect line doesn't require special tools, equipment, or training
  • SmartHVAC app: wifi control compatible with Alexa and Google assistant you can control your DIY anywhere with your apple or android smart device and an Internet connection
  • Low ambient cooling: cooling down to 5F this feature makes the MRCOOL DIY the ideal system for computer server rooms, greenhouses, and any other application that requires cooling all year
  • Offers 7 Year Compressor warranty and 5 Year Parts warranty
  • The sum of the length of all line-sets for this system shall not exceed 123 ft. The maximum length for each air handler is 75ft.
  • Please note: 9K air handlers require 1/4 x 1/2 line-sets.
  • Click here for more information on Electronic Recycling Programs
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 321505325

Model # DIYM218HPW00C12

Store SKU # 1010109603

Specifications

Dimensions

Air handler depth (in.)

7.44

Air handler height (in.)

11.69

Air handler width (in.)

36.02

Condenser depth (in.)

13.46

Condenser height (in.)

26.5

Condenser width (in.)

35.04

Details

Air direction/circulation

4-way

Air handler weight (lb.)

23.81

Amperage (A)

18 A

BTU Cooling Rating

18000 BTU

BTU Heat Rating

18000 BTU

Color Family

White

Color/Finish

White

Condenser weight (lb.)

100.53

Coverage Area (sq. ft.)

750

Decibel (Sound) Rating

59 dBA

Decibel Rating

59 dBA

Filter Type

Washable

Included

Remote Control, Self-diagnostic tools

Line Set Length (Ft.)

25 ft x 75 ft

Mini Split Features

Fan only option, Mobile App, Multi-zone compatible, Timer, Wifi

Minimum Outdoor Temperature (F)

5 degrees F

Mount Location

Wall Mount

Number of cool settings

3

Number of Fan Speeds

Variable

Number of Tons

1.5 ton

Pack Size

1

Power Options

Hardwired

Remote Access

Remote Access

Requires Hub?

No Hub Required

Returnable

90-Day

Smart Home

Smart Home Enabled

Smart Home Protocol

Wi-Fi

Voice Control Hub Required

No Hub Required for Voice Control

Voltage (v)

208/230v

Wattage (watts)

Not Measured

Works With

Alexa, Alexa, Google, Google Assistant

Zone Capacity

2 Zone

Warranty / Certifications

Certifications and Listings

AHRI Certified

Manufacturer Warranty

5 year part;7 year compressor;Limited liftetime compressor

Seasonal Energy Efficiency Ratio (SEER)

21

Questions & Answers

141Questions
caret
Q:Do they require a neutral wire?
by|Apr 7, 2024
1 Answer
Answer This Question

A:  No, it does not require a neutral wire.

by|Apr 13, 2024
    caret
    Q:How do you clean the vents? Can you remove any parts from the vent housing for cleaning?
    by|Mar 18, 2024
    1 Answer
    Answer This Question

    A:  You can remover the blower wheel for proper cleaning. We have a YouTube video for a fan motor replacement and in this video it will show you how to remove the blower wheel. https://www.youtube.com/watch?v=kAY6i8VpTBo

    by|Mar 19, 2024
      caret
      Q:Does this mini split require a drain inside the wall?
      by|Feb 20, 2024
      1 Answer
      Answer This Question

      A:  The air handlers do have drain hoses that connect to them. The drain hose will need to lead somewhere for the condensation to drain.

      by|Mar 11, 2024
        caret
        Q:Is this a 4th generation?
        by|Feb 16, 2024
        1 Answer
        Answer This Question

        A:  Yes! This bundle, DIYM218HPW00C00, is a 4th gen system.

        by|Feb 16, 2024
          Showing 1-4 of 141

          Customer Reviews

          4 out of 5

          • 4 out of 63 reviews
          • 71% recommend this product
          Filter by:
          Showing 1-10 of 63 reviews
          What good is it if it can’t regulate temparatures
          I cannot recommend it based on my experience with the software. The one thing I just assumed it would be able to do is maintain a temperature. My experience is that It has no ability to maintain a temperature. If I set it to 70 and auto, it will be 76 or 65 randomly at any given time (see example screen shots, this is how it has been set all day and you can see the room temp). I have had a truly terribly experience with this product, and would strongly recommend you don’t buy it.
          by
          Response from MR COOL TeamMar 18, 2024
          Please email us at support@mrcool.com or call us directly at 270-366-0457 for assistance with this issue. mrcool
            I had it shipped to store, it arrived within a week, all the parts were wrapped on skid which the Home Depot employee helped me load into my truck. I was happy with the purchase
            by
            • Verified Purchase
            Temperature is way off.
            The temperature setting is only correct maybe 20% of the time. When set to 70 degrees, the unit will hold for a while then get stuck and the temperature will drop to 60 degrees or lower if it could. Other times it lets the temperature get over 80 degrees and will only kick on with a manual power cycle. I'm afraid to install it in my small child's room for fear it could cook or freeze them in the middle of the night.
            by
            Response from MR COOL TeamSep 22, 2023
            We do apologize for this. Please email me directly at csmanager@mrcool.com. mrcool
              2 found this review helpful
              • Verified Purchase
              Great product, but MrCool support sucks
              The installation was simplified by the fact that it was for a newly delivered shed and I needed to have electrical service provided anyway. The unit required a 240V setup. Turned it on and the PC 03 error appeared. Contacted MrCool by email (recommended route) and the case was handed over to an "in-house technician" with warning that this might take a while. 2 weeks later (and more messages) and no word. I figured my mistake out myself. MrCool support sucks. Home Depot was great.
              by
                • Recommended
                • Verified Purchase
                • Verified Purchase
                No I received a 27000 btu and I wanted a 24000 and I wanted 25 foot line sets and received 16 foot line sets which are not going to work so I stuck having to exchanging them and I don’t really have time for that
                by
                  Defective Unit
                  I purchased this minisplit system for its ease of installation and great reviews. I failed to take into account the bad reviews thinking I wouldn’t be one of those people. I installed this system with no issues…at first. Two months after install the pc-03 error code popped up indicating low refrigerant. Called hvac tech to come out and do a leak test. Found leak at connection, refilled system for $454, tech went on his way. Two months later, same code popped up again. Same tech comes out finds the true source of the leak which is at the condensor. Manufacture defect. MRCOOL admits fault quite easily and has sent me a new condensor within warranty of course. Herein lies the issue with MRCOOL. I asked who is going to refill my system once the condensor is swapped out. Clearly the system will be low and will not function properly. The system takes R-410a which has recently been deemed destructive to the environment and is longer going to be in production. Therefore, its price has skyrocketed. My new quoted price for refill is over $700, maybe alittle more or alittle less. MRCOOL had stated that they will not refill the system they dont cover that. So, because of their poor quality of manufacture not only did an extremely toxic substance leak out into the environment twice. MRCOOL has said that they are passing that cost down to the customer. I am expected to pay over $1000 to refill a system that has leaked because of a manufacturers defect. I do not accept this and neither should anyone else.
                  by
                  Response from MR COOL TeamDec 22, 2023
                  We do apologize for the inconvenience. Please email me directly at csmanager@mrcool.com. mrcool
                    • Recommended
                    1 found this review helpful
                    Straight forward to install. Product works fantastic, it’s super quiet on the inside and outside. So far very happy. Only complaint is how they attach the pre charged lines to the condenser. Very hard to not have extra loop left in the line which is unsightly and frankly difficult to accommodate the bend necessary to line it up with the condenser connection.
                    by
                    • Verified Purchase
                    Showing 1-10 of 63 reviews
