DIY 36,000 BTU 3-Ton 3-Zone 21.5 SEER Ductless Mini-Split AC and Heat Pump with 24K+9K+9K & 25,25,25ft Lines

$4537.00
/bundle
Apply Now
$undefined.00 /mo† suggested payments with months† financingApply Now
  • High-Efficiency Ductless Mini Split System: 21.5 SEER
  • Easy DIY Mini Split Installation with Pre Charged R410A Lines
  • Air Handlers/Lines: 9K,9K/25,25ft and 24K/25ft
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

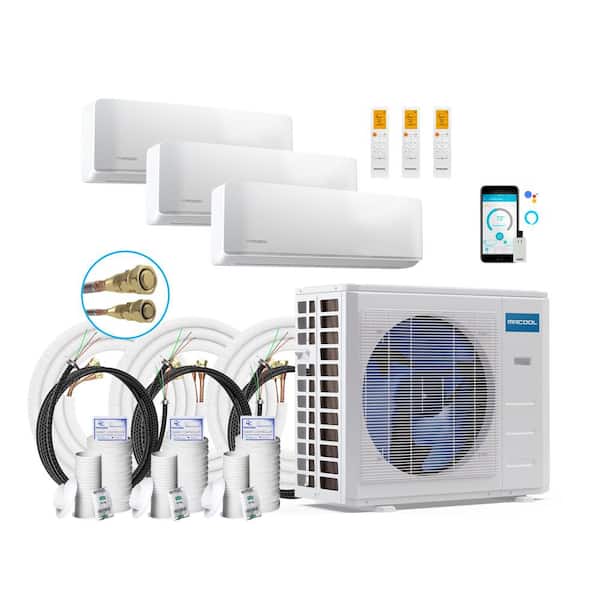

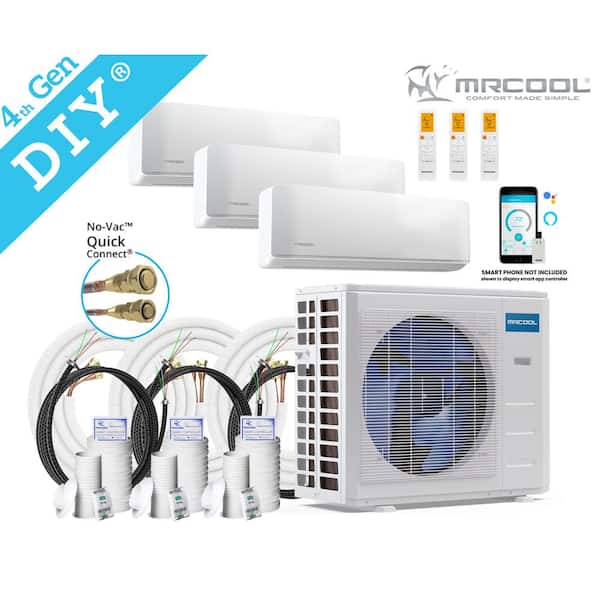

This MRCOOL DIY 36,000 BTU 3 Ton 3 Zone Ductless Mini Split Air Conditioner and Heat Pump with Wall Mounted Air Handlers bundle includes: 36K BTU Condenser, two 9K BTU Wall Mounts, one 24K BTU Wall Mount, 25/25ft. Quick Connect lines (1/4 X 1/2), 25ft. Quick Connect lines (3/8 X 5/8), 3 Remotes, and 3 Smart HVAC Wi Fi kits. Each 9K BTU Wall Mount is capable of heating and cooling up to 300 Sq Ft. The 24K BTU Wall Mount is capable of heating and cooling up to 1000 Sq Ft. MRCOOL offers an easy DIY ductless mini split installation with their patented DIY pre charged quick connect line sets that makes connecting refrigerant piping as simple as turning a few wrenches. The innovative Gold Fin anti corrosion technology makes this a great choice for those in coastal regions where corrosion is more likely. With a sleek design and quiet operation, the mini split wall mounted air handler is efficient and economic. Whether it be new construction, retrofit, greenhouse, server room or anything between they are designed to effectively and efficiently cool and/or heat your desired location. It can be operated with the included remote, Alexa, or Google Assistant. This system is backed by a 7 year compressor warranty and 5 year parts warranty.

Highlights

  • Energy efficiency: 21.5 SEER2, 8.8 HSPF2
  • Designed to efficiently provide ductless heating and cooling up to a combined 1500 Sq Ft
  • Easy DIY installation: pre-charged R 410A quick connect line doesn't require special tools, equipment, or training
  • SmartHVAC app: wifi control compatible with Alexa and Google assistant you can control your DIY anywhere with your apple or android smart device and an Internet connection
  • Low ambient cooling: cooling down to 5F this feature makes the MRCOOL DIY the ideal system for computer server rooms, greenhouses, and any other application that requires cooling all year
  • Offers 7 Year Compressor warranty and 5 Year Parts warranty
  • The sum of the length of all line-sets for this system shall not exceed 221.5 ft. The maximum length for each air handler is 75ft.
  • Please note: 9K air handlers require 1/4 x 1/2 line-sets; while 24K air handlers require 3/8 x 5/8 line-sets.
  • Lifetime technical support
  • Works with Alexa
  • Works with Google assistant
  • Click here for more information on Electronic Recycling Programs
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 317477491

Model # DIYM336HPW03C35

Store SKU # 1009469371

Specifications

Dimensions

Air handler depth (in.)

19.57

Air handler height (in.)

16.93

Air handler width (in.)

42.52

Condenser depth (in.)

19.88

Condenser height (in.)

35.04

Condenser width (in.)

42.91

Details

Air direction/circulation

4-way

Air handler weight (lb.)

60.19

Amperage (A)

27 A

BTU Cooling Rating

36000 BTU

BTU Heat Rating

36000 BTU

Color Family

White

Color/Finish

White

Condenser weight (lb.)

390

Coverage Area (sq. ft.)

1500

Decibel (Sound) Rating

65 dBA

Decibel Rating

65 dBA

Filter Type

Washable

Included

Remote Control, Self-diagnostic tools

Line Set Length (Ft.)

25 ft x 25 ft x 25 ft

Mini Split Features

Defrost, Fan only option, Overload protection, Sleep setting, Timer, Wifi

Minimum Outdoor Temperature (F)

-13

Mount Location

Wall Mount

Number of cool settings

4

Number of Fan Speeds

Variable

Number of Tons

3 ton

Pack Size

1

Power Options

Hardwired

Remote Access

Remote Access

Requires Hub?

No Hub Required

Returnable

90-Day

Smart Home

Smart Home Enabled

Smart Home Protocol

Wi-Fi

Voice Control Hub Required

No Hub Required for Voice Control

Voltage (v)

208/230v

Wattage (watts)

Not Measured

Works With

Alexa, Alexa, Google, Google Assistant

Zone Capacity

3 Zone

Warranty / Certifications

Certifications and Listings

AHRI Certified, CSA Certified

Manufacturer Warranty

5-year Parts/7-year Compressor;Limited Lifetime Compressor

Seasonal Energy Efficiency Ratio (SEER)

21.5

Questions & Answers

48Questions
caret
Q:Is everything in the DIYM327HPW01C28. bundle gen 4?
by|May 20, 2024
1 Answer
Answer This Question

A:  Yes, everything in DIYM327HPW01C28 is a generation 4.

by|May 22, 2024
    caret
    Q:Is DIYM327HPW01C28 eligible for the federal rebate? I see on the Mr Cool website that model DIY-MULTI3-27HP230C is eligible, but I can't seem to match that with a specific bundle.
    by|May 16, 2024
    1 Answer
    Answer This Question

    A:  The condenser is what the guidelines for the rebate will go by. Condenser model DIY-MULTI3-27HP230C is the condenser that is with the bundle, DIYM327HPW01C28.

    by|Jun 2, 2024
      1 found this answer helpful
      caret
      Q:Quick question: does the 26 amps power the outside unit and the 3 inside units? Or does the 26 amps just power the outside unit and we need additional amperage to power the 3 inside units?
      by|May 1, 2024
      1 Answer
      Answer This Question

      A:  The 26 amps will power the entire system. You will not need any additional breakers for the system. However, the maximum amperage is a 40 amp breaker.

      by|May 6, 2024
        caret
        Q:How far will an air handler blow the air? Basically, if you are trying to cool and heat 2 rooms next to each other and the air can blow into both can that work?
        by|Dec 23, 2023
        1 Answer
        Answer This Question

        A:  It is possible. Placement of the air handler will play a big role in this. We do not have an exact distance of the air flow the air handlers reach.

        by|Dec 26, 2023
