50 Gallon Flo Well Stormwater Dry Well System Kit with 3 Side Panels & 1 Cover

(192)Questions & Answers (101)
$128.00
Apply Now
Pay $103.00 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Alternative to heavy stone-filled dry wells
  • 2 ½ times more detention volume compared to gravel dry wells
  • Collects, detains, and slowly releases water out into soil
  • View More Details
Store
0 in stock
caret

Product Details

The right solution for draining areas in yards prone to flooding, the Flo-Well Dry Well System is installed underground to collect, temporarily store, and slowly release excess water into the ground. The gravel-free interior provides 250% more detention volume than comparable sized gravel dry wells. Traditionally a dry well is an underground hole filled with heavy stone and gravel. With the Flo-Well Dry Well drainage system only a small amount of gravel is needed at the base of the tank to prevent scouring, and no heavy equipment is needed to install. Water collected upstream with a catch basin or channel drain is carried by pipes into the Flo-Well Dry Well, and seeps out through the open bottom and weep holes (punched out as needed). For local areas that require stormwater detention and infiltration on property, the Flo-Well Dry Well System is an accepted product, either installed by itself or as part of a larger integrated setup. The Flo-Well Dry Well also works well with rain gardens and bioswales to manage the flow and absorption of runoff from impervious surfaces. We're here to help! NDS offers free tools such as the Flo-Well Drainage calculator, Home Drainage Center, and NDS Stormwater Drainage mobile app to help make your project a success. The preferred choice of contractors, NDS is dedicated to helping you with the products, tools, and support you need to get the job done right the first time.
  • Protect property from water damage by collecting, detaining, and infiltrating stormwater runoff
  • Flo-Well Dry Wells are ideal for both residential and commercial locations including yards, playgrounds, golf courses, and wash-down areas
  • Connect to 4 in. Sewer and Drain Pipe through top cover knockout; 12 side-panel knockout points connect to 4 in. Sewer and Drain and Schedule 40 Pipes; knockout points stay securely in place if not needed
  • Gravel-free interior provides 250% greater water holding capacity than comparable gravel-filled dry wells
  • The Flo-Well Dry Well can be buried or stacked up to 8 ft. deep and supports pedestrian traffic including lawn tractors
  • Side panels, when assembled, form a 24 in. dia. X 24 in. tall cylinder; with addition of cover the overall height is 28-3/4 in. with 50 gallons storage capacity
  • Special ribbed design on side panels adds structural strength for long-lasting durability; no need to pack gravel inside
  • Thirty 1 in. knockout weep holes provide additional infiltration capacity, simply punch out with a firm tap using a hammer and wrap Flo-Well Dry Well with filter fabric wrap (sold separately) to prevent soil intrusion. Use a bottom panel (sold separately) to the Flo-Well Dry Well to prevent soil erosion or provide a base for a sump pump
  • The Flo-Well Dry Well System works as a stand-alone product or in conjunction with other compatible NDS products such as Catch Basin Drains, EZ Drain French Drains, and Pop-Up Drainage Emitters as part of a complete drainage system
  • Can be installed alone; when using more than one, install additional Flo-Well Dry Wells side by side, 18 in. apart; units can also be stacked up to 4 high when able to dig deep without hitting bedrock. No heavy equipment needed to install
  • Comes with 3 side panels and top cover, unassembled
  • Flo-Well Dry Well is made of high-density polyethylene (HDPE) using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking
  • Use with additional Flo-Well Dry Well components such as the Bottom Panel, Surface Drain Inlet with 6 in. Grate, and Filter Fabric Wrap; use additional Flo-Well Dry Well Kits to increase detention and infiltration
  • Use with a Pop-Up Drainage Emitter to discharge collected water at a point of release
  • Use with EZ Drain Gravel-Free French Drain System for additional detention and infiltration capacity, or in high groundwater situations
  • Onsite stormwater management protects the watershed downstream, and limits excess runoff which can lead to negative impacts such as erosion, pollution, and flooding
  • Founded in 1972, NDS is the preferred choice of professionals and the leader in stormwater management with proven products, tools, and support to help you get the job done right
  • Landscapes Compatibility Chart
  • Return Policy
  • California residents
caret

Specifications

caret

Questions & Answers

101Questions
caret
Q:Can you stack 2 of these?
by|Mar 4, 2023
1 Answer
Answer This Question

A:  Hi Craig, or Flo-Well system can be stack. When staking Flo-Well the bottom lid must be used. The bottoms lib stabilizes the units and reduces stress as the soil compaction around the circumference of the units.

by|Mar 7, 2023
    caret
    Q:Which type of rocks do I use
    by|Nov 28, 2022
    1 Answer
    Answer This Question

    A:  Hi Julio, NDS recommend 1/4" TO 1-1/2" clean gravel as backfill.

    by|Feb 5, 2023
      1 found this answer helpful
      caret
      Q:Is this product drinking water safe? Thinking about use as a spring catchment
      by|Nov 6, 2022
      4 Answers
      Answer This Question

      A:  I am using it as a spring catchment for collecting waste to irrigation purposes. While I can't answer your question directly it is made of just plastic and see no reason it would not be safe for drinking water assuming your source is ok.

      by|Nov 11, 2022

        A:  This is not a tank,  it has not bottom  is not for storage

        by|Nov 10, 2022

          A:  Absolutely NOT!   Potable water must be stored in approved containers that were manufactured for that purpose.  There are potable water small tanks that would suit your purpose and provide potable water storage.  Don't assume a crystalline appearing spring or well is safe year round.  Do multiple laboratory testing, filtration and equipment sanitation.  Todays ground water in many cases needs treatment before consuming.

          by|Mar 10, 2023
            1 found this answer helpful

            A:  Hi Ryan, The NDS Flo-Well is not intended as a spring catchment or for use as potable water storage. A Flo-Well provides strormwater runoff detention & infiltration and encourages groundwater recharge.

            by|Nov 15, 2022
              caret
              Q:Is a horizontal drain and grate available
              by|Aug 29, 2022
              1 Answer
              Answer This Question

              A:  Hi Dick, NDS does offer a 4" Sch. 40 surface drain inlet with grate item# FWSD69, which connects to the cover of the Flo Well

              by|Sep 1, 2022
                Showing 1-4 of 101
                caret

                Customer Reviews

                4.3 out of 5
                (192)
                • 4.3
                  out of 192 reviews
                • 92%recommend this product
                Filter by:
                Showing 1-10 of 192 reviews
                Jan 21, 2020
                It's been about a month and it's working great. Havent had any issues
                It's been about a month and it's working great. Havent had any issues
                by
                • Verified Purchase
                • Recommended
                1 found this review helpful
                Sep 18, 2018
                just installed it
                Just installed this last night to help collect the rain water from my gutters. Seemed to be straight forward and easy to use. I used duct tape to hold the joins together while instlalling otherwise they would pop apart
                by
                  • Recommended
                  5 found this review helpful
                  May 1, 2018
                  Pros: -Lightweight -Customizable -Accurate product description -Simple Cons: -Additional parts...
                  Pros: -Lightweight -Customizable -Accurate product description -Simple Cons: -Additional parts required as per installation -additional digging required for aggragrate and optional NDS top drain if used Recommendations: -glue pieces together after assembling -use sharp blade to remove knockouts
                  by
                  • Verified Purchase
                  • Recommended
                  6 found this review helpful
                  May 31, 2016
                  Great product, good directions/easy install, works like a charm!
                  Flo well was easy to install with clear directions and good quality materials. Already had a couple heavy downpours and it's working like a charm. Picture taken with top off for perspective, final install will be completely covered up to overflow emitter on top.
                  by
                  • DIY
                  • Verified Purchase
                  10 found this review helpful
                  Oct 19, 2014
                  Solved my sidewalk drainage problem
                  I had a drainage problem next to a paver sidewalk every spring after the snow melted and during heavy rain storms. Due to poor grading of the yard there really wasn't anywhere for the water to go. I installed this and added the top grate. We had a couple of down pours since the install and it is working great. The water no longer floods the sidewalk as the area in the yard where the water used to collect now drains properly.
                  by
                  • Verified Purchase
                  • Recommended
                  30 found this review helpful
                  Feb 23, 2023
                  by
                  • Verified Purchase
                  Jan 18, 2023
                  by
                  • Verified Purchase
                  Dec 14, 2022
                  Worked like a champ!!!...
                  Worked like a champ!!!
                  by
                  • Verified Purchase
                  Oct 26, 2022
                  by
                  • Verified Purchase
                  Oct 13, 2022
                  Seems to work. The knock outs did not knock out....
                  Seems to work. The knock outs did not knock out. I had to cut them some first.
                  by
                  • Verified Purchase
                  Showing 1-10 of 192 reviews

                  Frequently Bought Together

                  +
                  +
                  Price:
                  $12800

                  • Compare Similar Catch Basins

                  14 in. x 14 in. Storm Water Pit and Catch Basin for Modular Trench and Channel Drain Systems with Aluminum Grate
                  current product

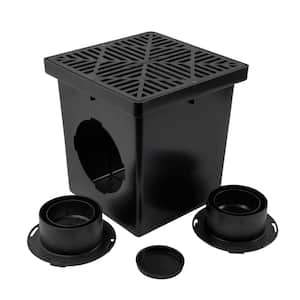

                  50 Gallon Flo Well Stormwater Dry Well System Kit with 3 Side Panels & 1 Cover                  		Top Rated12 in. Square Catch Basin Drain Kit 2-Opening Basin, Black Plastic Grate, 2 Outlet Adapters and 1 Outlet Plug (4-Pack)Deep Series 18 in. L x 18 in. W x 24 in. H Catch Basin with Class A Galvanized Steel Grate
