1-1/2 in. Galvanized DWV Pipe Hanger

$2.78
  • Pipe hanger built to hold DWV pipes in place
  • Enables the expansion and contraction of multiple pipes
  • Diagonal nail holes let you fit the hanger in small areas
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

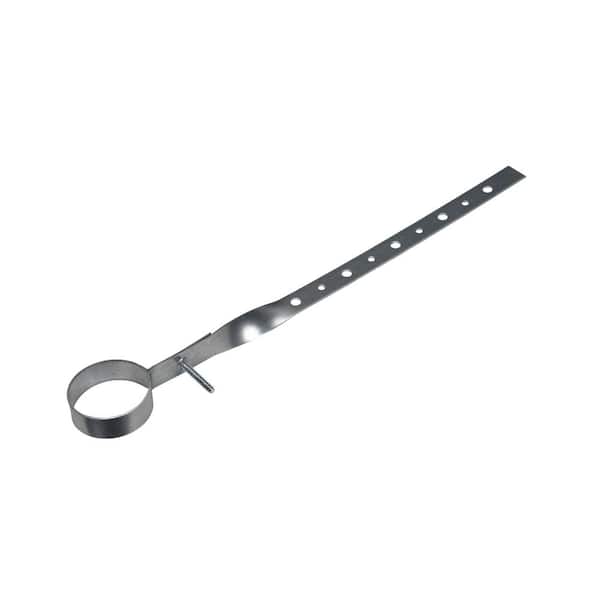

Oatey Galvanized DWV Pipe Hangers are designed for use with PVC, ABS, galvanized, black iron and cast iron piping. Made of galvanized steel, these pipe hangers are available in a variety of sizes and enable the expansion and contraction of multiple pipes. An adjustable strap and keyholes allow for fast installation, and pre-loaded ring shank nails are corrosion resistant. Oatey products have earned the trust of plumbing professionals for over 100 years.

Highlights

  • 1-1/2 in. galvanized steel pipe hanger
  • Supports DWV piping systems to joists and rafters
  • Enables the expansion and contraction of multiple pipes
  • For use with PVC, ABS, galvanized, black iron and cast iron piping
  • Adjustable strap and keyholes for fast installation
  • Fits 1-1/2 in. pipes
  • Pre-loaded ring shank nails are corrosion resistant
  • Rigorously tested and proven to last in many conditions
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 301505462

Model # 33563

Store SKU # 237569

Specifications

Dimensions: H 1 in, W 1 in, D 1 in

Dimensions

Maximum compatible pipe size (in.)

1.50

Pipe/rod size (in.)

1.5

Product Depth (in.)

1 in

Product Height (in.)

1 in

Product Width (in.)

1 in

Details

Compatible Pipe Material

Multi-Purpose

Compatible Threaded Rod Size (in.)

0

Corrosion Resistant

Yes

Finish Family

Stainless Steel

Hardware Required

No

Maintenance, Repair & Supplies Product Type

Pipe Hangers & Supports

Material

Galvanized Steel

Minimum compatible pipe size (in.)

1.5

Number in Package

1

Pack Size

1

Pipe Hangers & Supports Type

DWV Hangers

Product Weight (lb.)

0.196 lb

Quantity Per Package

1

Returnable

90-Day

Warranty / Certifications

Manufacturer Warranty

1 year limited

Questions & Answers

3Questions
caret
Q:I want to support a run of pipe that runs under and across the basement floor joists. Is it OK to twist into the correct orientation? IF Not, any suggestions? Thanks.
by|Aug 14, 2023
1 Answer
Answer This Question

A:  We do not recommend altering the product. Securing it in the correct orientation is the best practice.

by|Aug 21, 2023
    caret
    Q:How much weight can it carry?
    by|Dec 13, 2021
    1 Answer
    Answer This Question

    A:  The galvanized hanger has a safe working load of 46LBS but is only as strong as the items securing it to the object hanging from.

    by|May 3, 2023
      1 found this answer helpful
      caret
      Q:how long is the strap part above the part that clamps onto the pipe?
      by|Jun 24, 2020
      1 Answer
      Answer This Question

      A:  9"

      by|Jun 8, 2024
        3 found this answer helpful
        Showing 1-3 of 3

        Customer Reviews

        4.6 out of 5

        • 4.6 out of 52 reviews
        • 100% recommend this product
        Filter by:
        Showing 1-10 of 52 reviews
        I recently installed a new sump pump in my basement. I used a 2-inch PVC pipe for the ejection li...
        I recently installed a new sump pump in my basement. I used a 2-inch PVC pipe for the ejection line. The distance from the pump to where the line exited the building was about 60 feet and so there were several spots where the pipe would go "thump" when the pump turned on and then off. To get this to quit, I used a series of 2-inch Galvanized DWV Hangers. I used some with the plastic coating and some without and it didn't seem to make any difference. Both types totally eliminated that annoying thumping sound.
        by
        • Recommended
        This all metal galvanized pipe hanger works fine for most needs, copper, PVC, etc. Exact measurem...
        This all metal galvanized pipe hanger works fine for most needs, copper, PVC, etc. Exact measurements are included with the pictures in my review. It's inexpensive and easy hangs onto wood or concrete walls with the appropriate fasteners (not included). I use these to support runs of cable as well as plumbing, under rafters, and what not. They also work great for hanging tools in the shop, strong and sturdy and inexpensive. What more could you ask for? I'd recommend it.
        by
        • Recommended
        2 found this review helpful
        Great Hanger. This is being used for my Water Heater to keep the pipe from vibrating. It is ma...
        Great Hanger. This is being used for my Water Heater to keep the pipe from vibrating. It is made from a durable aluminum and is very sturdy. The lock screw loosens and tightens very easily, I bent the metal are after measuring it with my hand, so as sturdy as it is, it performed without any special metal bending machine. After installation it did the job it was meant to do.
        by
        • Recommended
        6 found this review helpful
        This product is a good solution for securing a 2” drain line. It is easy to use and to bend into ...
        This product is a good solution for securing a 2” drain line. It is easy to use and to bend into place to navigate any plumbing obstructions. Once in place, the hanger holds the pipe securely, helping to minimize pipe vibrations and damage. The galvanized metal construction should hold up well without rusting in damp and humid environments. The installation might be easier to complete in tight quarters if you consider loosely placing the collar onto the pipe and sliding it along the pipe to the supporting location, before securing the strap to a joist and tightening the pipe collar. That's what I did. A good product I would recommend to others.
        by
        • Recommended
        The Oatey pipe hanger is the easy way to support a 2" DWV pipe. It is made of galvanized steel ma...
        The Oatey pipe hanger is the easy way to support a 2" DWV pipe. It is made of galvanized steel making it strong. It has a removable adjustment screw that can be adjusted up to 2 1/2" and even though it is made for 2" you could support a pipe that is smaller. After you have the hanger around the pipe or item to be supported you attach it to the joist or other fixed object with nails or screws.
        by
        • Recommended
        1 found this review helpful
