Internet #100174549

Model #420842

Store SKU #1003316833

Store SO SKU #125490

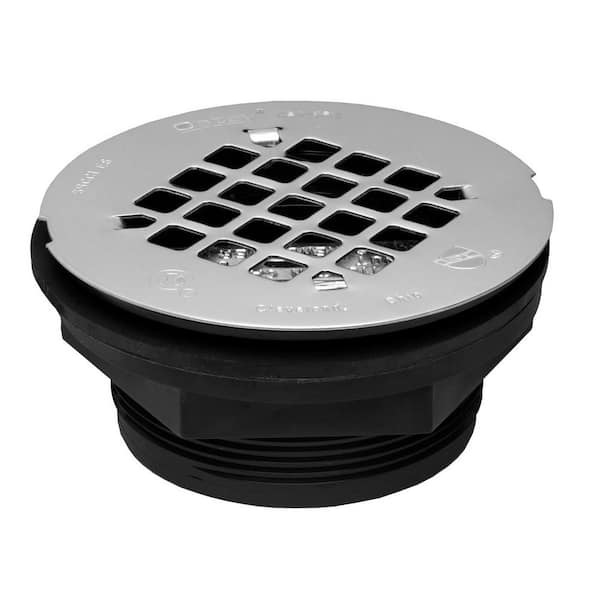

Round No-Caulk Black ABS Shower Drain with 4-1/4 in. Round Snap-In Stainless Steel Drain Cover

  • Design allows for use on snap-in preformed shower drains
  • Snap strainer onto drain body during shower drain assembly
  • Stainless steel strainer acts as drain cover for shower
  • See More Details

Frequently Bought Together

+
+
Price:
$968

Product Overview

Preformed shower base with drain

Preformed Shower Base

Oatey preformed shower base drains come in a variety of materials to connect to the DWV system in a dwelling.

Tile shower with drain

Tile Shower Base

Oatey tile shower drains are designed for use on tile shower bases where a liner with weep holes is used.

General purpose drain in laundry room floor

General Purpose Drains

Oatey general purpose drains, such as the bell trap and snap-in, are recommended for use in residential drain applications.

Various different PVC shower drain sizes

Variety of Sizes

Oatey's drain offering is available in multiple sizes to fit the job.

Round snap-tite and screw-tite strainers

Strainer Types

Oatey's strainers are available in snap-tite or screw-tite to fit your drain needs.

Various different strainer finishes and materials

Strainer Finish & Material

Oatey offers a variety of strainer finishes and materials, such cast iron and oil rubbed bronze.

PVC, CPVC, and ABS pipe icon

Variety of Options

Oatey's drains fit a variety of pipe sizes and materials, with options including PVC, ABS, cast iron and brass.

No-calk drain

Brass & Plastic No-Calk

No-calk shower drains are designed with a drain body that seals to the shower base with washers.

Solvent weld drain

Solvent Weld

Solvent weld shower drains are designed for an easy installation by sealing to the pre-formed shower base with washers.

Rounded drain with square strainer

Round or Square

Tile shower drains are available with a round or square strainer and are designed for use on built-up tile bases.

Cast iron drain

Cast Iron

Cast iron shower drains are ideal for use in tile or marble shower applications.

General purpose drain

General Purpose

General purpose drains are available in a wide range of sizes, materials and configurations.

Bell trap drain

Bell Trap

Bell trap drains are designed for use in garage, patio and other outdoor areas to drain water to a well.

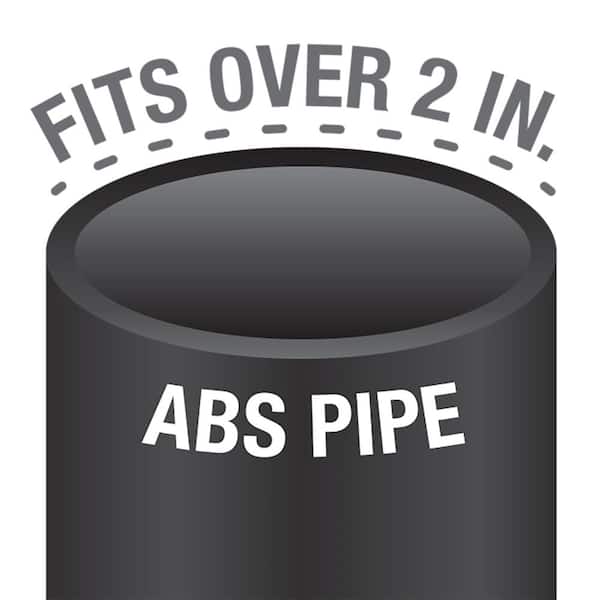

The Oatey 2 in. ABS Shower Base Drain with 4-1/4 in. Strainer is ideal for use with pre-formed shower stall bases (not included). The drain assembly includes a 4-1/4 in. stainless-steel strainer that snaps into place on the drain body after installation. Compatible with 2 in. Sch. 40 ABS or PVC drain piping (not included).
  • Black ABS plastic body
  • Use with a pre-formed shower stall base (not included)
  • Strainer top can be replaced with the 4-1/4 in. universal snap-tite designer finish strainer (not included)
  • Mechanical compression gasket secures 2 in. Sch. 40 DWV pipe (not included) to the drain body
  • Compression gasket helps to create a watertight seal
  • Comes with a 4-1/4 in. stainless-steel strainer
  • Strainer snaps onto the drain body after installation

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Drain opening (in.)
1
Product Depth (in.)
4.25
Product Height (in.)
2
Product Width (in.)
4.25 in

Details

Application
Tub & Shower
Color Family
Black
Color/Finish
Black
Features
No Additional Features
Finish
Black
Material
Steel
Number of Screws
2
Open/close function
No
Pack Size
1
Plumbing Part Type
Tub Complete Drain Assembly
Returnable
180-Day
Sink Accessory Type
Strainer/Stopper
Style
Grid

Warranty / Certifications

Manufacturer Warranty
1 year

Questions & Answers

7Questions13Answers

I bought a 4" PVC drain. The thread from Male to female don't coincide?? Are the threads differen...

Asked by John September 28, 2020
1
Answer

Please contact Oatey at technical@oatey.com for further assistance.

Where the rubber gasket goes? Top of shower base or under base?

Asked by Guga November 25, 2019
2
Answers

The rubber gasket & fiber slip washer are installed under the shower base.

Why is there no tool for the nut? It has a 3 1/2 in nut. Almost every house has 16 in on center l...

Asked by Venter October 22, 2019
2
Answers

There are several types of tool that are made to fit the drain nut. Google: Channellock 212 4-1/4-Inch Jaw Capacity Plier for Oil Filters PVC and Sink Strainers. Suggest that you just cut off old nut with a cold chisel. You can install the new one with a large channel lock pliers. Note: Assemble new drain receiver and tighten BEFORE attaching/gluing to ABS. this way you will have room to turn the pliers at a 90 degree angle to tighten nut.

Where should the top of the drain pipe be inside the drain before you start to tighten the caulki...

Asked by Gene October 21, 2019
2
Answers

The top of your drain pipe should finish ¾” below the top of No-Caulk barrel flange after the shower base is set into its final location.

How do I attach the drain pipe?

Asked by bc August 10, 2019
2
Answers

ABS Cement.

do I use plumer putty between top of shower pan and drain

Asked by scott May 12, 2019
2
Answers

Use only silicon based sealer on top of fiberglass opening. Do not use plumbers putty or it will leak.

How to remove drain cover

Asked by Duane March 2, 2019
2
Answers

slip a flat screw driver blade under metal cover edge and pry up. Upon re-assembly you might have to bend out the small taps on the cover to make it fit tightly.

Customer Reviews

  • 17 Customer Reviews
  • 4.5 out of 5 stars overall
100% of customers recommended.
Overall Ratings
5star-icon(11)
4star-icon(5)
3star-icon(0)
2star-icon(0)
1star-icon(1)
Sort By:
Had to use caulk on the dam thing wouldn't stop...
Had to use caulk on the dam thing wouldn't stop leaking
Was this helpful?
0
0
Does what you want it to do with satisfying resalts
Does what you want it to do with satisfying resalts
Was this helpful?
0
0
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
Was this helpful?
0
0
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
Was this helpful?
0
0
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
Was this helpful?
0
0
5 Star Review
Rating provided by a verified purchaser
Was this helpful?
1
0
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
Was this helpful?
0
0
Much easier to install than the alternatives, after needing to...
Much easier to install than the alternatives, after needing to move waste pipe to accommodate location of new shower pan drain.
Was this helpful?
0
0
Installation instructions would be appreciated. ...
Installation instructions would be appreciated.
Was this helpful?
0
0
Worked good when I needed a low profile drain to...
Worked good when I needed a low profile drain to line up with existing waste line.
Was this helpful?
0
0
