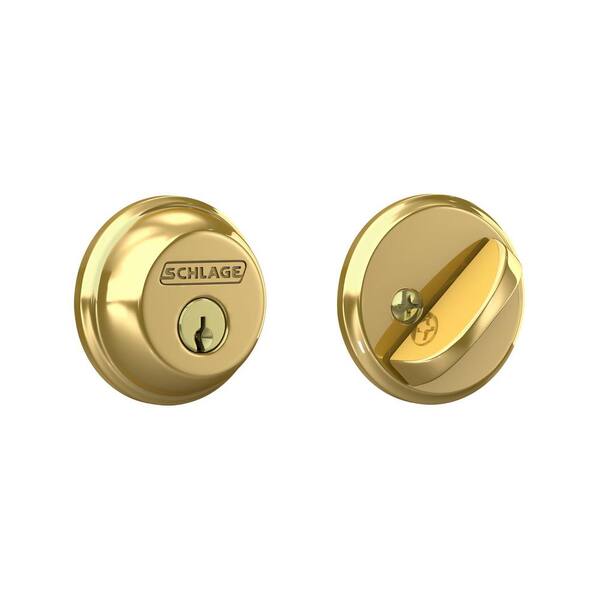

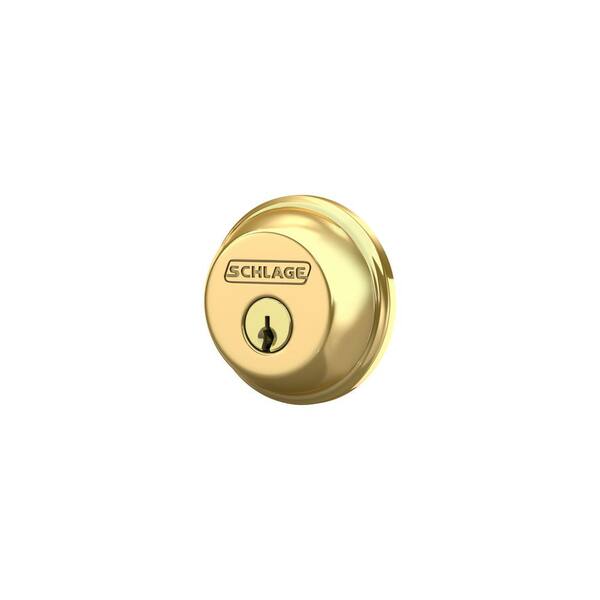

B60 Series Bright Brass Single Cylinder Deadbolt Certified Highest for Security and Durability

$32.97
Apply Now
Pay $7.97 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Operates with key outside, thumb turn inside
  • All-metal chassis for added strength and durability
  • Grade 1/AAA certified BHMA rating for Security, Durability,Finish
  • View More Details
Store
0 in stock

Product Details

About This Product

The Schlage Single Cylinder Bright Brass Deadbolt adds an extra layer of security to your interior or exterior knob/lever. This deadbolt fits on metal or wooden doors measuring from 1-3/8 in. to 1-3/4 in. thick. Deadbolt operates with keys on both the exterior and the interior.

Highlights

  • IDEAL USE: Deadbolt thrown or retracted by key from outside or by inside turn unit; perfect for use on entry doors with 2 bore holes as additional layer of security; includes lockset and 2 keys
  • ADVANCED SECURITY FEATURES: Ideal for front and exterior doors where security and style matter; includes 1" deadbolt with anti-drill plates and anti-pick pins to help protect against kick-ins, prying, drilling, picking and bumping
  • CERTIFIED HIGHEST SECURITY: Premium metal construction and quality craftsmanship for everyday strength and peace of mind; Grade 1/AAA certified BHMA rating for Security, Durability and Finish
  • EASY INSTALL: Self-aligning screw holes make setup easy and hassle-free; includes parts to upgrade double bore hole doors with keyed security; fits both right and left handed doors; upgrade a door handle yourself with no skill required, only a screwdriver
  • HASSLE-FREE FIT: Universal latch slides easily to fit standard doors with 2-3/8" or 2-3/4" backsets, no tools required; fits door thickness 1-3/8" to 1-7/8"; integrated strike reinforcer with 3 in screws to help protect against forced entry
  • TRUSTED WARRANTY: Schlage locks are backed by a limited lifetime mechanical and finish warranty; see Schlage warranty for full details
  • Click here to shop all Schlage products
  • Click here for more Schlage Door Hardware products
  • Return Policy

Product Information

Internet # 318710873

Model # B60.N.G.505.605

Store SKU # 1006964939

Specifications

Dimensions: H 2.5 in, W 2.5 in, D 0.88 in

Dimensions

Assembled Depth (in.)

0.88 in

Assembled Height (in.)

2.5 in

Assembled Width (in.)

2.5 in

Backset Size (in.)

Adjustable

Deadbolt Bore Hole Diameter (in.)

2.13 in

Deadbolt Cross Bore Diameter (in.)

2.13 in

Deadbolt Strike Height (in.)

2.75 in

Deadbolt Strike Width (in.)

1.13 in

Deadbolt Throw Length (in.)

1.0 in

Deadbolt Trim Ring Diameter (in.)

2.5 in

Projection (in.)

1.0 in

Required Door Thickness (in.)

1-3/8 in to 1-3/4 in

Details

Commercial/Residential

Residential

Deadbolt strike

Round corner

Deadbolt Type

Single Cylinder Deadbolt

Door Handing

Universal

Door Lock Style

Classic

Door Locks & Knobs Product Type

Deadbolts

Electronic/Mechanical

Mechanical

Features

Easy Installation

Finish

Bright Brass

Finish Family

Polished Brass

Hardware Color Family

Brass

Included

Installation Instructions, Mounting Hardware

Interior/Exterior

Exterior

Keyway

C

Material

Metal

Product Weight (lb.)

1.25 lb

Security/ANSI Grade

ANSI Grade 1 (Best)

Total Number of Keys Included

2

Warranty / Certifications

Certifications and Listings

ANSI Certified, BMHA Certified

Manufacturer Warranty

Limited Lifetime Mechanical and Finish Warranty; see Schlage full warranty for details

Questions & Answers

45Questions
caret
Q:Does Shlage make a deadbolt (comparable to this model preferably) that can be used on a 2.25 inch thick door?
by|May 21, 2024
1 Answer
Answer This Question

A:  Yes, we offer a thick door kit for this lock that you can purchase to install on a door that is thicker than standard door prep. With the purchase of the lock and the the purchase of the thick door kit you would be able to install with no issues. The part number for that kit is 61-072.

by|May 22, 2024
    caret
    Q:Can I match the key to the Encode Plus Wifi lock?
    by|Jan 20, 2024
    1 Answer
    Answer This Question

    A:  Yes, all residential Schlage locks can be keyed alike by a professional Locksmith. If you have any other questions or require any further assistance, please call us at 888-805-9837 or email consumerschlage@allegion.com.

    by|Jan 22, 2024
      caret
      Q:Can these be matched with keyed alike locks
      by|Dec 1, 2023
      1 Answer
      Answer This Question

      A:  Yes, you can request the locks be keyed alike or have the cylinders rekeyed after purchase. If you have any other questions or require any further assistance, please call us at 888-805-9837 or email consumerschlage@allegion.com.

      by|Mar 17, 2024
        1 found this answer helpful
        caret
        Q:Will this lock work on an interior door?
        by|Nov 13, 2023
        1 Answer
        Answer This Question

        A:  Yes, as long as the interior door has a standard cross bore hole prepped for a deadbolt. If you have any other questions or require any further assistance, please call us at 888-805-9837 or email consumerschlage@allegion.com.

        by|Nov 13, 2023
          Showing 1-4 of 45

          Customer Reviews

          4.6 out of 5

          • 4.6 out of 573 reviews
          • 95% recommend this product
          Filter by:
          Showing 1-10 of 573 reviews
          Finally feeling safe with my new deadbolt
          [This review was collected as part of a promotion.] I had this single cylinder gold deadbolt installed yesterday and slept peacefully last night. Feeling safe.
          by
            • Recommended
            Schlage single cylinder B60N G 505
            [This review was collected as part of a promotion.] I've put in many doorknobs and deadbolts. Thiscwas by far the hardest to get lined up to screw together. Bolt mechanism was bigger than old one and I had to widen hole. Bolt did not line up with frame hole and had to ground brass frame edge to get it to fit.
            by
              • Recommended
              by
              Response from Schlage Customer CareApr 12, 2024
              Hello, we're sorry to hear you're unsatisfied with the B60. Please contact us at consumerschlage@allegion.com or 888-805-9837 so we may assist you. Allegion_Schlage
              • Verified Purchase
              Easy install, good price
              [This review was collected as part of a promotion.] Easily and quickly installed, I installed this lockset on an entry door to a cocktail bar. I have used, installed, and trusted Schlage for decades.
              by
                • Recommended
                Deadbolt brass
                [This review was collected as part of a promotion.] Smooth operation and easy to install. Big handle for locking purposes. Makes it easy to operate even for older people that have arthritis in hands. Install it on my parents house and they love it.
                by
                  • Recommended
                  Great features!
                  [This review was collected as part of a promotion.] I bought this item today, I am very happy! I will buy more
                  by
                    • Recommended
                    Beautiful Finish as Well as Great Quality
                    [This review was collected as part of a promotion.] Just bought this to replace our old Schlage deadbolt which was 30 years old since my son-in-law broke off a key in it. It is so easy to install. I trust the brand name of Schlage and use that in all fixtures on my jobs as well as home because it's dependable and if great quality
                    by
                      • Recommended
                      Simple replacement with good security!
                      [This review was collected as part of a promotion.] Just replaced old front door deadbolt with this unit. 20 year old unit was sticking. Simple and easy to do. Appreciate the security it offers! Reasonable price too.
                      by
                        • Recommended
                        Single cylinder easy install
                        [This review was collected as part of a promotion.] Replaced a two cylinder deadbolt of a different brand with this one and no mods were needed so an easy install. Looks great and nice to be able to easily lock the deadbolt for greater security.
                        by
                          • Recommended
                          Installed with ease !
                          [This review was collected as part of a promotion.] I bought this to replace an old lock that broke. It installed easily amd looks great !
                          by
                            • Recommended
