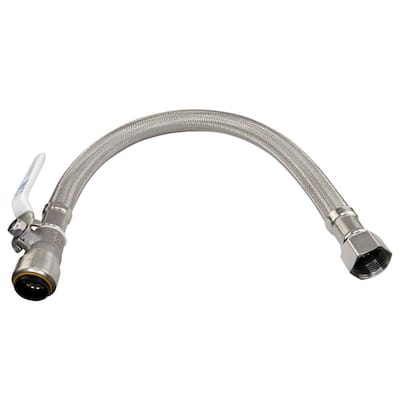

Max 1/2 in. Push-to-Connect x 3/4 in. FIP x 18 in. Braided Stainless Steel Water Heater Connector Ball Valve

$36.26
Apply Now
Pay $11.26 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Fastest way to connect PEX, copper, CPVC, or PE-RT pipe
  • Half the insertion force with double the burst pressure
  • Can be installed on wet lines and pressure tested immediately
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

SharkBite Max flexible water heater connectors are the fastest and easiest way to connect your water heater to existing pipes in your home. A newly designed stainless steel collet retainer delivers additional strength and durability and provides a 200 psi pressure rating. SharkBite Max connectors do not require a PEX tube liner, and a re-engineered body allows you to insert the pipe using less force and greater ease. No soldering, clamps, unions, glue, or special tools required. After inserting to pipe, stainless steel teeth bite down and grip the pipe tightly while a specially formulated O-ring compresses around the pipe to create a watertight seal. The flexible stainless steel braided hose reduces the need for extra joints or fittings, allowing for faster installs. Available in additional lengths (12 in. x 24 in.) and with integrated ball valve shut off.

Highlights

  • Compatible with PEX, copper, CPVC PE-RT, or HDPE pipe
  • Approved for electric and gas water heaters with flue vent
  • Requires no special tools to install on hot or cold-water lines
  • Can be installed on wet or dry lines pressure tested immediately
  • Rotatable after installation and removable
  • PEX tube liner not required
  • Approved for underground and behind-the-wall applications with no access panels (wrapping required when burying underground)
  • Low-lead DZR corrosion-resistant brass body
  • Rated to 140°F and 200 psi
  • Code approved, IAPMO Listed for details, see specification
  • 25-year warranty when used with PEX, copper, CPVC and PE-RT pipe, see warranty
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 323676137

Model # UR3068FX18BV

Store SKU # 1001254910

Specifications

Dimensions: H 2.15 in, W 1.29 in, D 18 in

Dimensions

Product Depth (in.)

18 in

Product Height (in.)

2.15 in

Product Length (in.)

18 in

Product Width (in.)

1.29 in

Details

Application

Potable Water

Compatible Brand/Model

Universal

Finish Family

Silver Metallic

For Use With

Electric Tank, Electric Tankless, Gas Tank, Gas Tankless

Material

Stainless Steel

Pack Size

1

Product Weight (lb.)

0.94 lb

Returnable

90-Day

Warranty / Certifications

Manufacturer Warranty

Must be installed per installation instructions.

Questions & Answers

9Questions
caret
Q:Can I connect to expansion tank ?
by|Apr 8, 2023
1 Answer
Answer This Question

A:  Hi, The SharkBite 1/2 in. Push-to-Connect x 3/4 in. FIP x 18 in. Braided Stainless Steel Water Heater Connector is designed to connect to appliances that have MIP threads. We have some more questions about your application. If you will call tech support at 877-700-4242 we will gladly assist you with your questions. (Kind regards,)

by|Apr 10, 2023
    caret
    Q:Will this push onto schedule 1/2” schedule 40 pvc?
    by|Mar 4, 2021
    4 Answers
    Answer This Question

    A:  Yes,very easy to use.

    by|May 7, 2023

      A:  Hello, The SharkBite 1/2 in. Push-to-Connect x 3/4 in. FIP x 18 in. Braided Stainless Steel Water Heater Connector with Integrated Ball Valve will not connect to Schedule 40 PVC. If you have any more questions or would like some guidance on some of our products that will work for you contact tech support at 877-700-4242. Kind regards,

      by|May 13, 2022
        1 found this answer helpful

        A:  This is not intended to be used with PVC.

        by|May 13, 2022
          1 found this answer helpful

          A:  PVC or cooper

          by|Aug 13, 2022
          1 found this answer helpful
          caret
          Q:can this be used on the hot water output side of the tank? what is the max temp. rating?
          by|Jun 27, 2020
          5 Answers
          Answer This Question

          A:  Hello, SharkBite braided water heaters connectors are suitable for temperatures of up to 200°F and are suitable for use on the hot side of the water heater as long as this temperature is not exceeded. Most water heaters are set at 120°F but we recommend checking your system's temperature to be sure. If you have additional questions please don't hesitate to reach out to our technical support department at 877-700-4242. Best Regards,

          by|Feb 21, 2024
            1 found this answer helpful

            A:  I used it on both hot and cold side. No issues..

            by|Feb 21, 2024
            1 found this answer helpful

            A:  Yes on my water-heater 3 years

            by|Feb 21, 2024
            1 found this answer helpful

            A:  Yes it can be used on either side. I don’t think there is a max temp issue.

            by|Mar 21, 2024

              A:  I don't know the max temp rating but in the description it specifically says hot and cold water lines for hot water heater. I used these on hot & cold lines of my mom's hot water heater when I installed it over 3 years ago and no issues

              by|Jun 27, 2020
              caret
              Q:How many times can you disconnect and reconnect at the same location before the unit starts to leak if ever.
              by|Dec 16, 2019
              2 Answers
              Answer This Question

              A:  As many times as you need ! Sharkbite products are awesome !

              by|Dec 17, 2019

              A:  Hello, SharkBite Universal fittings are intended to be a permanent connection and are not designed for repeated connection and disconnection. If the need arises to change a fitting after initial installation this can be done given that proper care is taken when removing and reinstalling SharkBite Universal fittings (steps below). If the fitting has been installed and removed more than 4 times we recommend using a new fitting and only using the previously installed fitting for testing applications. 1. SharkBite disconnect tongs or SharkBite disconnect clips must be used when removing the fittings. 2. The initial pipe and the new pipe must be clean and free from scratches and burrs. 3. Mark the correct insertion depth, insert the fitting to the mark, turn the water back on and check for leaks. Best Regards,

              by|Feb 21, 2024
                2 found this answer helpful
                Showing 1-4 of 9

                Customer Reviews

                4.9 out of 5

                • 4.9 out of 236 reviews
                • 100% recommend this product
                Filter by:
                Showing 1-10 of 236 reviews
                I installed this to the cold water feed line to my new Tankless Hot Water works good.. I bought i...
                I installed this to the cold water feed line to my new Tankless Hot Water works good.. I bought it and the tankless hot water at Home Depot..
                by
                • Verified Purchase
                • Recommended
                not good at all
                I used this connection for my boiler , after several months its rusted and start dripping water , not for long use .
                by
                  • Recommended
                  2 found this review helpful
                  I, unfortunately, did not end up using this hose due to, of all things, the valve. My water heate...
                  I, unfortunately, did not end up using this hose due to, of all things, the valve. My water heater was on a reinforced shelf in the garage and the copper pipes were not well placed to make an even transition so the Sharkbite hose needed to be in a loop for the supply side. With the valve on the end it greatly limited the bend I could put on the hose without kinking it, so I returned it and got the Sharkbite hose w/o the valve and it worked out great. I needed to step the connection down to 1/2" for this one so I used a valve-less hose as well with a Sharkbite 90 degree elbow and that worked out even better as there was no loop to make. Overall, I was stunned at how easy this install became using this hose system. Note: You really need to buy the Sharkbite pipe end tool. It looks like a pan flute with all the pipe sizes it supports for cleaning, and most importantly, allowing you to mark the needed depth of the connection onto the copper pipe. Too shallow and it will not stay on. All you do is push and turn on the copper pipe using the correct size opening to prep the pipe and then, without withdrawing the tool, mark a line on the pipe with it firmly in the tool. This is the depth that the fitting needs to be pushed on to the copper to have the proper 'bite' on the pipe! I'll post a pick of my completed project here. I have another size hose to review here so I'll be using this review and will adjust that one for size but mainly it will be the same review. I would definitely use these hoses again for other projects around the house. One last thing I forgot. Buy the small horseshoe shaped removal tool for the size connections you'll be making!!!!! If you make a mistake these will allow you to undo the connection without damaging the fitting. Small cost with a great 'just in case' value!
                  by
                  • DIY
                  • Verified Purchase
                  • Recommended
                  3 found this review helpful
                  Very easy to use
                  I am a new home owner and have no clue what I am doing plumbing wise. The old electric water heater broke so I decided to replace it on my own. These guys made the job extremely easy. All I did was got a pipe cutter to cut the copper pipe and sanded the pipe to clean it up a bit then they just snap on. I will be using sharkbites for all of my plumping needs in the future.
                  by
                  • DIY
                  • Verified Purchase
                  • Recommended
                  3 found this review helpful
                  I item worked out very well.
                  by
                  • Verified Purchase
                  it worked out great had water heater hooked up in less than 10 min.
                  by
                  • Verified Purchase
                  This product worked perfect and eliminated the time to connect three or four fittings. Sharkbite’s release clip is the only thing that needs to be made better. “John Guest” fittings have a much better release feature.
                  by
                  • Verified Purchase
                  This makes changing out a hot water heater a lot faster!
                  by
                  • Verified Purchase
                  by
                  • Verified Purchase
                  Worked great super easy to use.
                  by
