Internet #100375366

Model # CC46HDG

Store SKU #669235

0044315899904

Simpson Strong-Tie

CC Hot-Dip Galvanized Column Cap for 4x Beam, 6x Post

  • Provides a strong connection for column-beam combinations
  • Certified welds for confidence in strength and loading
  • 7-gauge steel construction ensures strength
$ 110 69
Loading Options
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

  • Provides a strong connection for column-beam combinations
  • Certified welds for confidence in strength and loading
  • 7-gauge steel construction ensures strength
Simpson Strong-Tie connectors make projects easier to build while making them stronger and safer. They are engineered and tested to perform and are manufactured to the highest quality standards. Whether working on a home project or building a structure to comply with building codes, go with the choice of engineers and contractors, go with genuine Simpson Strong-Tie connectors. Column caps provide a high-capacity connection for column-beam combinations.
  • Assembled with certified welds for confidence in strength and loading
  • Diamond holes are included to provide for temporary fastening
  • Nominal beam width: 4x
  • Nominal post size: 6x
  • Made from 7-gauge steel
  • Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications

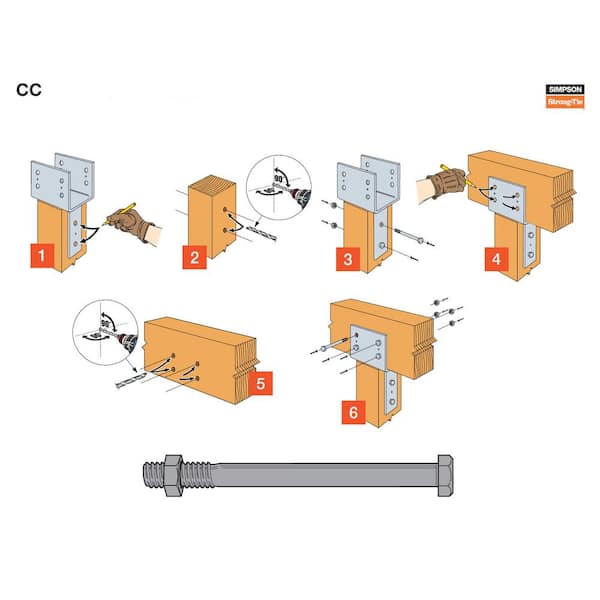

  • Install with 5/8 in. diameter HDG bolts

Product Overview

  • Provides a strong connection for column-beam combinations
  • Certified welds for confidence in strength and loading
  • 7-gauge steel construction ensures strength
Model #: CC46HDG
Sku #: 669235
Internet #: 100375366

Simpson Strong-Tie connectors make projects easier to build while making them stronger and safer. They are engineered and tested to perform and are manufactured to the highest quality standards. Whether working on a home project or building a structure to comply with building codes, go with the choice of engineers and contractors, go with genuine Simpson Strong-Tie connectors. Column caps provide a high-capacity connection for column-beam combinations.

  • Assembled with certified welds for confidence in strength and loading
  • Diamond holes are included to provide for temporary fastening
  • Nominal beam width: 4x
  • Nominal post size: 6x
  • Made from 7-gauge steel
  • Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
  • Install with 5/8 in. diameter HDG bolts

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Key Features

Product Overview
Key Features
  • Provides a strong connection for column-beam combinations
  • Certified welds for confidence in strength and loading
  • 7-gauge steel construction ensures strength
Simpson Strong-Tie connectors make projects easier to build while making them stronger and safer. They are engineered and tested to perform and are manufactured to the highest quality standards. Whether working on a home project or building a structure to comply with building codes, go with the choice of engineers and contractors, go with genuine Simpson Strong-Tie connectors. Column caps provide a high-capacity connection for column-beam combinations.
  • Assembled with certified welds for confidence in strength and loading
  • Diamond holes are included to provide for temporary fastening
  • Nominal beam width: 4x
  • Nominal post size: 6x
  • Made from 7-gauge steel
  • Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
  • Install with 5/8 in. diameter HDG bolts

Product Overview

  • Provides a strong connection for column-beam combinations
  • Certified welds for confidence in strength and loading
  • 7-gauge steel construction ensures strength
Model #: CC46HDG
Sku #: 669235
Internet #: 100375366

Simpson Strong-Tie connectors make projects easier to build while making them stronger and safer. They are engineered and tested to perform and are manufactured to the highest quality standards. Whether working on a home project or building a structure to comply with building codes, go with the choice of engineers and contractors, go with genuine Simpson Strong-Tie connectors. Column caps provide a high-capacity connection for column-beam combinations.

  • Assembled with certified welds for confidence in strength and loading
  • Diamond holes are included to provide for temporary fastening
  • Nominal beam width: 4x
  • Nominal post size: 6x
  • Made from 7-gauge steel
  • Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
  • Install with 5/8 in. diameter HDG bolts

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Beam Width
4x6
Nominal Post Size (in.)
4x6
Product Depth (in.)
3.938
Product Height (in.)
15
Product Width (in.)
11

Details

Cap Type
Column Cap
Connector Finish
Hot dip galvanized
Fasteners Included
Fasteners Not Included
Features
No Additional Features
Gauge
7
Material
Steel
Material Connector Compatibility
Wood to Wood
Number of Pieces
1
Package Quantity
1
Product Weight (lb.)
11.83lb
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
Yes

Specifications

Dimensions

Beam Width
4x6
Nominal Post Size (in.)
4x6
Product Depth (in.)
3.938
Product Height (in.)
15
Product Width (in.)
11

Details

Cap Type
Column Cap
Connector Finish
Hot dip galvanized
Fasteners Included
Fasteners Not Included
Features
No Additional Features
Gauge
7
Material
Steel
Material Connector Compatibility
Wood to Wood
Number of Pieces
1
Package Quantity
1
Product Weight (lb.)
11.83lb
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
Yes

Questions & Answers

Would this work with douglas fir 4x12 beams (i.e. 4 in. x 12 in. x 16 ft. #1 S4S Hi-Bor Pressure-...

Would this work with douglas fir 4x12 beams (i.e. 4 in. x 12 in. x 16 ft. #1 S4S Hi-Bor Pressure-Treated Timber)? The dimensions on the douglas fir page indicate that it is 3.56" (or 3-9/16") thick. The Simpson catalog states that the beam portion of the cap is 3 5/8" wide. It's unclear if that width includes the thickness of the metal sides or not.
Asked by: guacamobley
Yes this product would work with 4 x 12 pressure treated timber
Answered by: wlo
Date published: 2017-12-27

Will these fit a 3 1/2" gluelam beam or will it have to be firred out 1/2"?

Asked by: curious
The CC46HDG is sized for a nominal 4x beam (3 1/2" actual), therefore it will work with a 3 1/2" glulam. Thank you!
Answered by: SimpsonStrong-Tie
Date published: 2017-08-14

Are CC44 column caps available (not CC44HDG) from Home Depot?

Price? Shipping Free?
Asked by: Robert
Hello Valued Customer, Thanks for your question and interest in this item. Model CC44 is not available for online purchase. We do however offer model CC44HDG, Internet # 100375172 online. Please note our online store carries a limited selection of our in-store products, as well as an assortment of Internet-only items not found in our retail stores. Please contact your local Home Depot store of choice for in store product availability for model CC44. To locate a store near you, please click on the “store locator” found on the top of each page. If you have any additional questions, please contact our Online Customer Service department at 800-430-3376. Thanks!
Answered by: THD
Date published: 2015-09-17

what is shipping time to maple falls wa (98266) if ordered today (cc66hdg)

Asked by: dave
Hello Valued Customer, Thanks for your question and interest in this item. Model # CC66HDG, Internet # 100374906 is readily available for online purchase today. Most orders ship within 3 business days. Please allow an additional 3-5 business days for Standard Ground Delivery in the U.S. Please keep in mind we are currently offering free shipping on this item. A great buy! If you have any additional questions or need assistance placing an online order, please contact our Online Customer Service department at 800-430-3376. Thanks!
Answered by: THD
Date published: 2015-09-17
  • y_2019, m_7, d_20, h_21CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.12
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_4
  • loc_, sid_100375366, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 69ms
  • QUESTIONS, PRODUCT

Customer Reviews

CC Hot-Dip Galvanized Column Cap for 4x Beam, 6x Post is rated 5.0 out of 5 by 2.
Rated 5 out of 5 by from The column caps worked as they were designed to work and installed relatively easy. The column caps worked as they were designed to work and installed relatively easy.
Date published: 2017-12-26
Rated 5 out of 5 by from 5 Star Review Rating provided by a verified purchaser
Date published: 2017-12-13
