LUS Galvanized Face-Mount Joist Hanger for 4x6 Nominal Lumber

$3.58
Buy 50 or more $3.22 /unit
  • Global leader in structural construction products since 1956
  • Products designed and tested for strength and easy installation
  • Diverse product line trusted by Pros and DIYers alike
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
Product Details

About This Product

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. LUS joist hangers provide a connection between a joist and header.

Highlights

  • Patented double-shear nailing design provides greater strength with fewer nails
  • Speed prongs for fast and easy installation
  • Angled joist nailing easier in tight spaces
  • Do not bend or remove tabs
  • Nominal joist size: 4x6, 4x8
  • Made from 18-Gauge steel
  • Galvanized (G90) for extra corrosion resistance

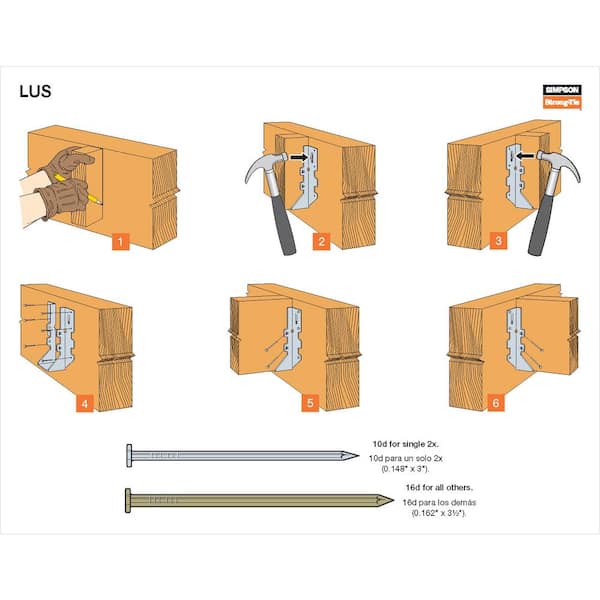

  • Install with 16d common nails
  • Shop all Simpson Strong-Tie here.
  • Return Policy

Product Information

Internet # 100374970

Model # LUS46

Store SKU # 462586

Store SO SKU #592854

Specifications

Dimensions: H 2 in, W 6.56 in, D 4.75 in

Dimensions

Joist Hanger Size4x6Product Depth (in.)4.75 in
Product Height (in.)2 inProduct Width (in.)6.56 in

Details

Connector FinishG90 GalvanizedFasteners IncludedFasteners Not Included
FeaturesNo Additional FeaturesGauge18
Hanger Flange TypeFace Mount FlangeHanger ModificationsNone
MaterialSteelNumber of Pieces1
Package Quantity1Product Weight (lb.)0.35 lb
Returnable90-Day

Warranty / Certifications

Manufacturer WarrantyLimited Warranty

Questions & Answers

29Questions
caret
Q:Is there similar hanger to this hanger that is for 6x8 beams? I can't seem to find it.
by|Jan 24, 2024
1 Answer
Answer This Question

A:  Hi Guitarcafe, thank you for your message. We want to make sure we address your question. Please contact the Simpson Strong-Tie Customer Service team at 800-999-5099 for assistance with this inquiry. We look forward to hearing from you​! - Stacy

by|Jan 24, 2024
    caret
    Q:How many 2x10 joist hangers are in a box?
    by|Nov 3, 2023
    1 Answer
    Answer This Question

    A:  Hi Wood, thank you for your message. This is Ricardo with Simpson Strong-Tie. The LUS210 can be ordered in a carton of 50 pcs. If you need more information or have additional questions, please contact the Simpson Strong-Tie Customer Service team at 800-999-5099. We look forward to hearing from you.​​

    by|Nov 6, 2023
      caret
      Q:Whats the maximum weight these hangers can hold?
      by|Jul 18, 2023
      1 Answer
      Answer This Question

      A:  Hello Josue, this is Ricardo. The LUS46 hanger is load rated for a download capacity of 1,030lb. and an uplift capacity of 1,060lb. If you have any other questions, please contact us at 800/999/5099.

      by|Jul 19, 2023
        caret
        Q:will this hanger work with treated lumber
        by|Jun 8, 2023
        1 Answer
        Answer This Question

        A:  Hello vernon, I am Colin with Simpson Strong-Tie. The LUS28 hanger is intended for an interior dry installation and not in contact with pressure treated lumber. We also make the LUS28Z. Z-stands for our premium Zmax finish that is suitable for a medium corrosive environment such as most pressure treated lumber chemicals and fresh water (rain) exposure. If you need more information or have additional questions, please contact the Simpson Strong-Tie Customer Service team at 800-999-5099. We look forward to hearing from you.​​

        by|Jun 8, 2023
          Showing 1-4 of 29

          Customer Reviews

          4.5 out of 5
          • 4.5 out of 135 reviews
          • 96% recommend this product
          Filter by:
          Showing 1-10 of 135 reviews
          I used these hangers last week to hang 4x6 supports under the edge of my mobile home. The hanger...
          I used these hangers last week to hang 4x6 supports under the edge of my mobile home. The hangers not only kept the 4x6s in place until the piers could be installed, but the double facing also helps keep the perimeter floor joist in a vertical position after years of being stressed with the weight of a water heater, washer and refrigerator along the wall. The prongs on each side allowed quick placement with a hammer until the faces could be screwed to the wood. For my application the angled nail pockets were not helpful, but I can see that they would be very helpful if the 4x6 had been butted against the floor joists. When I bought the hangers I had to be careful that the narrower hangers had not been mixed in with these wider hangers. The two are so similar they are easily confused, and since the SKU on these could not be scanned (part of the bar code was missing on all these hangers) I was overcharged for all the hangers I bought and had to return them for correct pricing. Fortunately I noticed the pricing problem before I left the store. This is the only reason I gave a good rating rather than excellent.
          by
          • Verified Purchase
          • Recommended
          Bought this for an outbuilding I am currently building. I used this to pair a couple of 2x6x20s f...
          Bought this for an outbuilding I am currently building. I used this to pair a couple of 2x6x20s for the center rafter. It helped tremendously in securing the rafters to the header. Made a great connection & even made the install for the roof deck easier.
          by
          • Pro
          • Verified Purchase
          • Recommended
          3 found this review helpful
          by
          • Verified Purchase
          by
          • Verified Purchase
          The joist hangar works fine. The delivery process for the decking was awful. I ordered the decking on the internet and each order was cancelled with no explanation. i talked to a customer service rep and he said it was the driveway. That didn't stop Dunn Lumber from delivering.
          by
          • Verified Purchase
          Met exactly what we needed. It was hard to find these dimensions in store, so had to order it to be delivered. Had some failed deliveries, but eventually got the 4x6 face-mount joist hanger shipped to store and picked it up. It is made of good quality, easy to use, and is working very well.
          by
          • Verified Purchase
          Inexpensive, strong, gets the job done. I like that they specify which size fasteners to use, though you may want to check other brands nails or structural screws for lower cost.
          by
          • Verified Purchase
          They are the best brand for this
          by
          • Verified Purchase
          Plenty in stock, which is always a positive. Quick Tip - you really have to check before you grab like 40-50 of these because sometimes the box has a mix of different sizes; not sure if its customers or staff putting them back in the wrong place, but drives me crazy.
          by
          • Verified Purchase
          The size is a bit small for a 4x4, my use, the same model number from Gandalf was just right, I am not sure why.
          by
          • Verified Purchase
