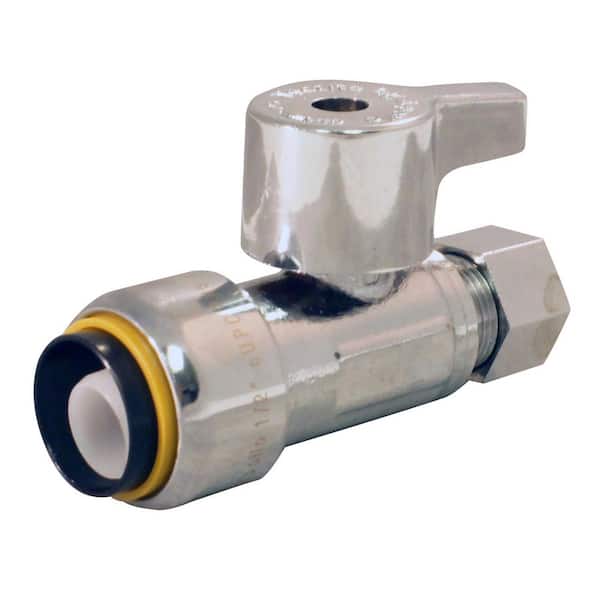

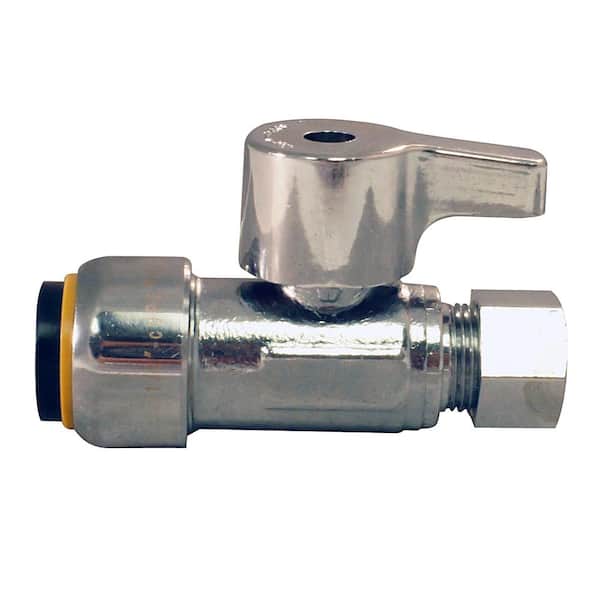

1/2 in. Chrome-Plated Brass Push-to-Connect x 3/8 in. Compression Quarter-Turn Straight Stop Valve

$947
  • Push-to-connect design makes for a fast and simple install
  • Simplest way to install supply stops for supply lines
  • Smooth quarter-turn ball valve flow control
  • See More Details
Store
0 in stock
Text to Me

Frequently Bought Together

+
+
Price:
$947

Product Overview

The Tectite by Apollo 1/2 in. Push-To-Connect x 3/8 in. O.D. Compression Quarter-Turn Straight Stop Valve is designed to control water flow to plumbing fixtures such as toilets and faucets. The Straight Stop Valve is used where the water pipe enters the room to allow for easy shut-off of water flow to the end fixture allowing for maintenance and repair without having to turn water off to the entire home. The 3/8 in. O.D. male compression outlet allows for the integration of supply lines for connection to the end fixture. Tectite by Apollo push-to-connect stop valves are the cleanest and simplest way to gain flow control on copper, CPVC, PE-RT and PEX pipe without the use of tools, solder, open flame or glue. Simply insert the pipe to allow the high-strength stainless steel teeth to grip the pipe securely against the specially designed O-ring. Stop valve removal and reuse is just as simple using a simple demount clip (sold separately). After assembly, fittings may be rotated for simpler installation in tight spaces. All Tectite by Apollo stop valves are approved for use in both potable water and hydronic heating piping systems.
  • Constructed of lead free dezincification resistant (DZR) chrome-plated brass for superior reliability
  • Push-to-connect joints require no heat, solder, solvents or tools
  • Push-to-connect design allows for a simple and fast installation on any combination of copper or CPVC pipe
  • Fittings can be rotated after being installed for ease of use in tight spaces
  • Ideal for potable water and hydronic heating applications
  • Listed by IAPMO and listed to ASSE 1061/NSF 81
  • Meets UPC, IPC, and cUPC standard requirements
  • Demount clip allows for fitting removal (included)
  • Approved for behind-the-wall with no access and burial
  • Corrosion resistant for greater longevity
  • Maximum working pressure of 200 psi and maximum temperature of 250°F
  • California residents

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Shut-off Valves

1/2 in. Chrome-Plated Brass Push-To-Connect x 1/4 in. Push-To-Connect Quarter-Turn Straight Stop Valve
current product
1/2 in. Chrome-Plated Brass Push-to-Connect x 3/8 in. Compression Quarter-Turn Straight Stop Valve
1/2 in. Chrome-Plated Brass Push-To-Connect x 1/2 in. MIP Brass Quarter-Turn Angle Stop Valve1/2 in. Chrome-Plated Brass PEX Barb x 3/8 in. Compression Quarter-Turn Dishwasher Tee Valve
BrandTectiteTectiteTectiteApollo
Name1/2 in. Chrome-Plated Brass Push-To-Connect x 1/4 in. Push-To-Connect Quarter-Turn Straight Stop Valve1/2 in. Chrome-Plated Brass Push-to-Connect x 3/8 in. Compression Quarter-Turn Straight Stop Valve1/2 in. Chrome-Plated Brass Push-To-Connect x 1/2 in. MIP Brass Quarter-Turn Angle Stop Valve1/2 in. Chrome-Plated Brass PEX Barb x 3/8 in. Compression Quarter-Turn Dishwasher Tee Valve
Price
$843
$947
$1044
$1448
Ratings
(1)
(13)
(9)
(9)
ConnectionPTC x CompPTC x CompPTCBarb x Comp
MaterialBrassBrassBrassBrass
Valve ConfigurationStraightStraightAngleStraight
Inlet Diameter (In.)1/21/21/21/2
Compatible Pipe MaterialMulti-PurposeMulti-PurposeMulti-PurposePEX
Outlet Diameter (In.)1/43/81/23/8
ApplicationPotable WaterPotable WaterPotable WaterPotable Water
Maximum Pressure (psi)200200200200
View ProductView ProductView ProductView Product

Specifications

Dimensions

Inlet Diameter (In.)
1/2
Inlet Size
1/2 In.
Outlet Diameter (In.)
3/8
Product Depth (in.)
1.59 in
Product Height (in.)
1.59 in
Product Length (in.)
1.73 in
Product Width (in.)
1.59 in
Valve Inlet Diameter (in.)
1/2

Details

Application
Potable Water
Color/Finish
Chrome
Color/Finish Family
Chrome
Compatible Pipe Material
Multi-Purpose
Compatible Product
Faucet,Toilet
Connection
PTC x Comp
Features
Adjustable,Corrosion Resistant,Lead Free,Quarter Turn,Removable
Indoor/Outdoor
Indoor
Inlet Fitting End Type
Push to Connect
Material
Brass
Maximum Pressure (psi)
200
Maximum Working Temperature (F)
250
Outlet Fitting End Type
Compression
Pack Size
1
Product Weight (lb.)
0.25 lb
Returnable
90-Day
Stop Valve Type
Straight
Valve Configuration
Straight
Valve Connection
Push Connect
Valve Type
Stop

Warranty / Certifications

Manufacturer Warranty
5 Years: Must be installed per published installation instructions.
