24 in. Fingerprint Resistant Stainless Steel Top Control Dishwasher

$448.00
$679.00
Save $231.00 (34%)
Apply Now
Pay $398.00 after $50 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Keep your kitchen quiet during cleanup with a low sound level
  • Free up extra space with three 5 in. Cup Shelves
  • Presoak and wash in one cycle with the Extended Soak Cycle
  • View More Details
Product Details
  • Keep your kitchen quiet during cleanup with a low sound level
  • Free up extra space with three 5 in. Cup Shelves
  • Presoak and wash in one cycle with the Extended Soak Cycle
About This Product

Clean dishes with a 55 dBA quiet dishwasher. Three 5" Cup Shelves free up extra space and a Boost Cycle provides extra effort for cleaning up stubborn messes. This dishwasher includes an Extended Dry Option to elevate drying performance and a Triple Filtration Wash System that filters food particles and cleans the water between wash stages.

  • Keep your kitchen quiet during cleanup with a dishwasher sound level of just 55 dBA.

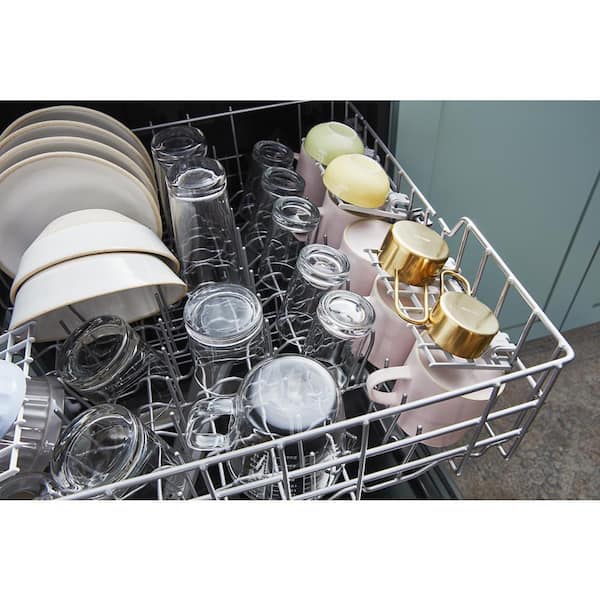

  • Three 5" Cup Shelves fit six additional cups or small bowls to free up extra space in the racks below and conveniently fold down to stay out of the way when not in use.
  • Presoak and wash in one Extended Soak Cycle to help stuck-on food dissolve away without any extra steps.
  • Extra cycle time takes care of heavily soiled messes and hard-to-clean dishes.
  • Skip scrubbing and pre-rinsing with the Boost Cycle. This cycle uses more water, time and heat than the Normal Cycle and takes less time than the Heavy Cycle so you can target tough messes that need a little extra effort.
  • Use the Normal Cycle for normal amounts of food soil to clean up leftover messes from your day-to-day meals.
  • Clean dishes fast with a cycle that thoroughly takes care of plates, pans and glasses when you need them done in a hurry.
  • High Temperature Wash Option raises the water temperature to help remove stubborn grease and food grime.
  • A Heated Dry Option allows you to use a clean, dry dish straight from the dishwasher thanks to added heat for drying.
  • Extended Dry Option extends your dry cycle about 30 minutes* to help elevate drying performance for any cycle. *Added time may vary per unit.
  • Sani Rinse Option eliminates 99.999% of bacteria.

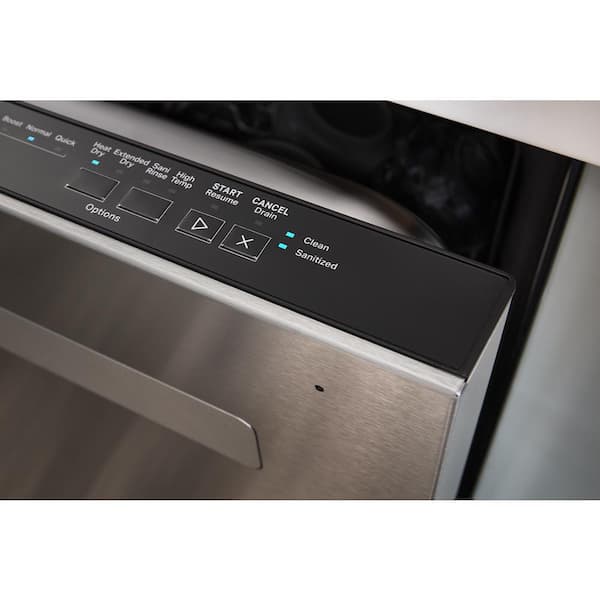

  • The Cycle Status Indicator light on the outside of the unit glows blue when your dishwasher is running and turns off when the cycle is complete.
  • Keep dishes clear of rinsed food particles with a Triple Filtration Wash System that uses a coarse filter to catch large soils, a fine filter to catch medium soils and a micro-fine filter to catch small soils between wash stages.
  • Cycle Memory quickly starts your dishwasher with one button. It automatically remembers the last cycle you picked so it's stored and ready to go.
  • A Hybrid Tub with Dark Gray Interior helps mask food stains with a stainless steel interior door and dark gray plastic tub.
  • Holds up to 12 place settings including 12 dinner plates, salad plates, saucers, bowls, cups, glasses, knives, dinner forks, salad forks, small spoons and large spoons.
  • Eco Series - Designed with efficiency in mind. Saving you water, energy and money with quality wash and dry performance.(Compared to dishwashers meeting the minimum 2023 Department of Energy efficiency standards)
  • Click here for more information on Electronic Recycling Programs
  • California residents

Product ID #: 321920830Internet #: 883049627045Model #: WDP540HAMZ

Specifications

Dimensions: H 34.5 in, W 23.87 in, D 24.5 in

Specifications

Dimensions

Cut-Out Depth (in.)
24.5 in
Cut-Out Height (in.)
34.5 in
Cut-Out Width (in.)
23.87 in
Depth - Door Shut (with Handle) (in.)
24.5 in
Depth - Door Shut (without Handle) (in.)
23 in
Depth With Door Open 90 Degrees (in.)
49.5 in
Dishwasher Size
24 In.
Height - Maximum (in)
34.5 in
Height - Minimum (in)
33.5 in
Product Depth (in.)
24.5 in
Product Height (in.)
34.5 in
Product Width (in.)
23.87 in

Details

Amperage (A)
8.1 A
Appliance Category
Dishwasher
Appliance Series
Not Applicable
Appliance Type
Dishwasher
Color/Finish
Fingerprint Resistant Stainless Steel
Color/Finish Family
Stainless Steel
Configuration
Single Drawer
Control Location
Top Control
Control Type
Electronic
Custom Door Panel Ready
No
Decibel (Sound) Rating
55 dBA
Dishwasher Features
Automatic Temperature Control, Cycle Status Lights, Fingerprint Resistant
Dishwasher Rack Configuration
1st Rack- Silverware Basket, 2nd Rack- Cup Clips
Dishwasher Wash Cycles
High Temperature Wash, Sanitize
Dry Options
Extra Dry, Heated Dry
Energy Consumption (kWh/year)
270
Energy Efficiency Tier Rating
Tier I
Handle Type
Pocket Handle
Hardware Color/Finish
Fingerprint Resistant Stainless Steel
Hardware Color/Finish Family
Stainless Steel
Hose Length (ft.)
1 ft
Number of Cycles
4
Number of Place Settings
12
Product Weight (lb.)
69 lb
Rack Material
Nylon
Returnable
Non-Returnable
Silverware Basket Location
In Rack
Sound Rating Range (Decibels)
Quiet
Steam Function
Without Steam
Tub Material
Plastic Tub
Voltage (V)
120 V

Warranty / Certifications

Certifications and Listings
UL Certified
Manufacturer Warranty
1 Year Limited
