Model #WDF520PADM

Store SKU #1001405682

Store SO SKU #1000955784

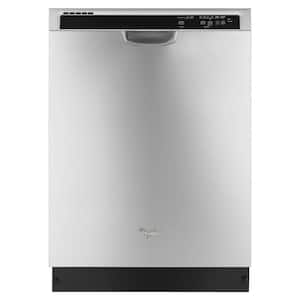

24 in. Monochromatic Stainless Steel Front Control Built-in Tall Tub Dishwasher with 1-Hour Wash Cycle, 55 dBA

  • Quiet at only 55 dBA per IEC standards
  • Just press start—this model remembers the last cycle you chose
  • Clean a lightly soiled load in half the time with 1-Hr wash cycle
  • See More Details

Shop the Stainless Steel Package with Side by Side Fingerprint Resistant Refrigerator

Info
View Package Page
Package Bundle

Price for Suite:

$293800
$3146.00
Save $208.00(7%)
Free Delivery

Free Delivery

Top Specs

Height to Top (in.)
68.63
Total Capacity (cu. ft.)
24.55
Installation Depth
Standard Depth
Height to Top of Door Hinge (in.)
69.25
Ice Maker Type
Single Ice Maker
Depth
31.63

Product Overview

This Front Control Built-in Tall Tub Dishwasher holds 14 place settings and cleans at a quiet 55 dBA. With the AnyWare Plus silverware basket that sits in the door, its spacious design frees up rack space and. provides more room for dishes in the lower rack. This efficient dishwasher cleans lightly soiled loads in half the time with its 1-hour wash cycle. AccuSense feature helps sense the amount of soil in dirty dishes and adapts the normal cycle as needed for customized cleaning.
  • Front electronic controls offer seamless cycle selection with just the light press of a button
  • Quiet Partner sound package allows you to run the dishwasher without disrupting your home (55 dBA)
  • Tall tub design and large capacity lower rack provide room for up to 14 place settings
  • AccuSense soil sensor determines how dirty dishes are and adjusts the normal cycle as needed to make sure dishes come out clean
  • ENERGY STAR qualified and tier I rated to save energy and water and help reduce your utility bills
  • Easy-to-maintain plastic tub provides long-lasting durability
  • Rinse-aid dispenser automatically adds a measured amount of rinse-aid to help reduce the potential for spots on your dishes
  • Upper rack with cup shelf provides plenty of room for cups, plastic ware and various containers
  • Large capacity lower rack easily accommodates plates, bowls and large dishes
  • Anyware plus silverware basket frees up rack space by easily fitting on the front of the lower rack or in the door to make room for more dishes
  • 2 spray arms shoot water under each rack to break down food and provide a thorough cleaning
  • NSF certified sani rinse option sanitizes dishes by eliminating 99.999% of food soil bacteria, as certified by NSF International
  • Highly effective triple filtration system helps the wash system provide outstanding cleaning while using less water and energy
  • New dishwasher connection kit is required for installation and will be offered during appliance checkout
  • For marble, granite, or other hard surface countertops order Mounting Bracket Kit Part Number 8212560
  • Dishwasher installation availability varies by location and can vary based on your home's plumbing, Click Here for details
  • Click here to learn more about Eco Options and Energy Efficiency
  • California residents

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Cut-Out Depth (in.)
24
Cut-Out Height (in.)
34
Cut-Out Width (in.)
24
Depth - Door Shut (with Handle) (in.)
25.25
Depth - Door Shut (without Handle) (in.)
24.5
Depth With Door Open 90 Degrees (In)
49.5
Dishwasher Size
24 In.
Height - Maximum (in)
34.5
Height - Minimum (in)
33.5
Product Depth (in.)
24.5
Product Height (in.)
33.5 in
Product Width (in.)
23.88

Details

Amperage (amps)
15
Appliance Category
Dishwasher
Appliance Type
Dishwasher
Color/Finish
Monochromatic Stainless Steel
Color/Finish Family
Stainless Steel
Control Location
Front Control
Control Type
Electronic
Custom Door Panel Ready
No
Decibel (Sound) Rating
55 dBA
Delay Start Option
Yes
Dishwasher Cycles
Quick Wash,Standard Wash
Dishwasher Cycles
Pots and Pans,Quick Wash,Sanitize
Dishwasher Features
Automatic Temperature Control,Cycle Status Lights,Filtered Water,Hard Food Filter,Sound Reduction System
Dishwasher Rack Configuration
1st Rack- Silverware Basket,Cup Shelf
Energy Consumption (kWh/year)
260
Energy Efficiency Tier Rating
Tier I
Estimated Yearly Operating Cost ($)
31
Handle Type
Pocket Handle
Hose Length (ft.)
6
Number of Cycles
4
Number of Place Settings
14
Product Weight (lb.)
55
Rack Material
Vinyl
Returnable
Non-Returnable
Silverware Basket Location
In Door or Rack
Silverware Basket Location
In Door,In Rack
Sound Rating Range (Decibels)
Quiet
Steam Function
Without Steam
Steam Function
No
Tall Tub
Yes
Tub Material
Plastic Tub
Voltage (volts)
120
Wash/Dry Options
Delay Start,Heated Dry,High Temperature Wash

Warranty / Certifications

Certifications and Listings
NSF Certified,UL Listed
Manufacturer Warranty
Limited 1-year

Compare Similar Built-In Dishwashers

24 in. Stainless Steel Front Control Tall Tub Dishwasher with Steam Cleaning, Dry Boost, and 55 dBA24 in. Stainless Steel Top Control Built-In Tall Tub Dishwasher with Stainless Steel Interior Door and 55 dBA
current product
24 in. Monochromatic Stainless Steel Front Control Built-in Tall Tub Dishwasher with 1-Hour Wash Cycle, 55 dBA
24 in. Stainless Steel Front Control Built-in Tall Tub Dishwasher Stainless Steel with 1-Hour Wash Cycle, 55 dBA
BrandGESamsungWhirlpoolWhirlpool
Name24 in. Stainless Steel Front Control Tall Tub Dishwasher with Steam Cleaning, Dry Boost, and 55 dBA24 in. Stainless Steel Top Control Built-In Tall Tub Dishwasher with Stainless Steel Interior Door and 55 dBA24 in. Monochromatic Stainless Steel Front Control Built-in Tall Tub Dishwasher with 1-Hour Wash Cycle, 55 dBA24 in. Stainless Steel Front Control Built-in Tall Tub Dishwasher Stainless Steel with 1-Hour Wash Cycle, 55 dBA
Price
Ratings
(100)
(1150)
(11854)
(2919)
Dishwasher FeaturesAutomatic Temperature Control,Filtered Water,Hard Food Disposer,Hard Food Filter,Leak Sensor,Sound Reduction System,Tall TubBuilt-In Hose,Hard Food Filter,Hidden ControlsAutomatic Temperature Control,Cycle Status Lights,Filtered Water,Hard Food Filter,Sound Reduction SystemAutomatic Temperature Control,Filtered Water,Hard Food Filter,Sound Reduction System
Dishwasher Size24 In.24 In.24 In.24 In.
Tub MaterialPlastic TubPlastic TubPlastic TubPlastic Tub
Height - Maximum (in)34.62535.12534.534.5
Depth - Door Shut (without Handle) (in.)2425.62524.524.5
Control LocationFront ControlTop ControlFront ControlFront Control
Sound Rating Range (Decibels)QuietQuietQuietQuiet
Wash/Dry OptionsExtra Dry,High Temperature Wash,Quick RinseDelay Start,Heated Dry,High Temperature WashDelay Start,Heated Dry,High Temperature WashDelay Start,Heated Dry,High Temperature Wash
Handle TypePocket HandleBar HandlePocket HandlePocket Handle
Dishwasher CyclesAuto,Quick Wash,Standard WashAuto,Pots and Pans,Quick Wash,Standard WashQuick Wash,Standard WashQuick Wash,Standard Wash
View ProductView ProductView ProductView Product

Questions & Answers

406Questions20Answers

Looking for a dishwasher in the 300 d ollar area.

Asked by Jeffrey March 27, 2021
2
Answers

So far we have not had any problems. It is quiet and washes the dishes good. Keeping my fingers crossed.

Does this have a top sprayer ?

Asked by Dano February 7, 2021
3
Answers

Dano, yes this dishwasher has an upper and lower spray arm.

Is there a plastic protective covering that you rip off over the buttons? Out of the box mine h...

Asked by Alan January 20, 2021
3
Answers

Hi Alan, there is a protective film that would need to be removed for the panel. We hope this helps!

where do I pour the the rinse aide

Asked by HomeDepotCustomer December 14, 2020
2
Answers

In the rinse container on the door.

Dishwasher is not draining, what is going on?

Asked by Seal December 1, 2020
1
Answer

You can try to drain your dishwasher by pressing the Cancel button on the control panel (upper right corner). If that doesnt drain it, you may have to call a plumber. Good luck!

It would’ve been nice if the sales person told us we needed to purchase an electric cord. Never ...

Asked by Itselectric November 22, 2020
1
Answer

That’s a bummer alright. A bigger problem will be finding the 7/8” fitting that secures the electrical cord to the electrical junction box in the dishwasher. I couldn’t find one at any hardware store. Including Home Depot. Plumbers have them. They won’t sell you one. I found a wholesale electrical parts supplier in North Carolina. Frustrating process for sure. Once I had the proper fitting it was easy to install.

What is the best way to remove the America decal on the bottom right of the door and please don't...

Asked by Fliegerdude October 31, 2020
2
Answers

The dishwasher can not fill water, the installer said the floater is missing a spring .

What voltage is used ?

Asked by Bo October 14, 2020
2
Answers

110 volts.

Is the racks stainless steel or plastic coating?

Asked by Sandy October 8, 2020
2
Answers

Plastic coating.

Why aren’t my dishes clean!?!

Asked by Angie October 6, 2020
2
Answers

Have you tried longer cleaning cycles? I find that if I have dishes that have difficult to clean particles of food that are days old before washing they require the longest cycle of cleaning. Most dishwashers advertise no prewashing necessary but sometimes I have to get them a quick rinse before placing them into the dishwasher.
