Internet #301015268

Model #WHD5090GW

Store SKU #1002520187

Store SO SKU #1002469642

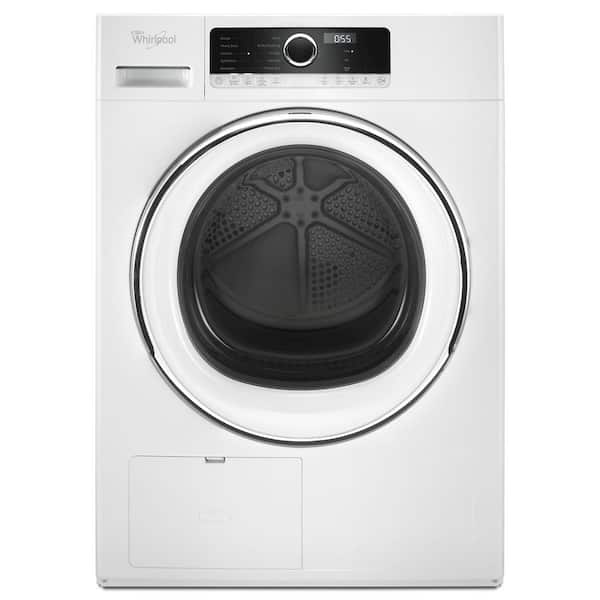

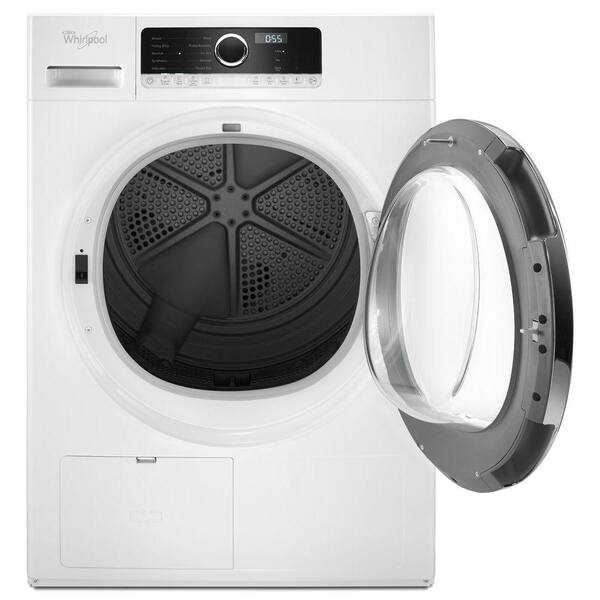

4.3 cu. ft. 240-Volt White Compact Stackable Heat Pump Ventless Dryer with Wrinkle Shield Option, ENERGY STAR

  • Space-saving design flexible enough to install virtually anywhere
  • Efficient ventless heat pump dryer technology
  • WRINKLE SHIELD option helps prevent wrinkles from setting in
  • See More Details

Product Overview

Fit your family's lifestyle and living space with the 4.3 cu. ft. compact dryer. This 24" dryer installs virtually anywhere and is our most space-saving dryer available. Tackle laundry day with this smaller washer and dryer with great features like X-Dry and the Refresh cycle. Enjoy a wrinkle-release dryer thanks to the Wrinkle Shield™ option. Better yet, this small dryer is also a very energy-efficient dryer.
  • California residents
  • Our Most Space-Saving Design Available: Our compact dryer has a 24" width and ventless design. It is flexible enough to install virtually anywhere, making it our most space-saving design available.
  • Our Most Efficient Compact Dryer Technology: Our most efficient compact dryer technology uses a ventless heat pump design to take the next step in energy efficiency. It recycles air and captures moisture so you can enjoy a more efficient and perfect drying experience.
  • Wrinkle Shield™ Option: Help prevent wrinkles even on a hectic schedule with the Wrinkle Shield™ option. Intermittent tumbling helps keep wrinkles from setting into clean clothes for up to 12 hours after the cycle ends.
  • Refresh Cycle: Refresh your load using the Refresh cycle, so dry, clean clothes are ready to wear without needing to be rewashed.
  • Baffles: Care for each garment with baffles that provide balanced tumbling for gentle, perfect drying.
  • Wool Cycle: Keep cozy, dryable wool fabrics fluffy and smooth with the Wool cycle that uses a gentle drying process.
  • Bulky Bedding Cycle: Wrap up in a warm, fresh-from-the-dryer comforter. Perfectly dry your bedding or other bulky items with the Bulky Bedding cycle.
  • Air Dry Cycle: Help prevent heat damage to fabrics. The Air Dry cycle is great for airing, refreshing and loosening up loads without added heat.
  • 4.3 Cu. Ft. Capacity: This compact-sized dryer has a 4.3 cu. ft. capacity provides room to fit your clothes while still being able to fit your space.
  • Gentle Dry: Get gentle drying for delicate loads with Gentle Dry that reduces the drying temperature.
  • X-Dry: Dry a small load quickly when you're on a tight schedule with X-Dry.
  • 10 Dryer Cycle Selections: Air Dry, Bulky Items, Delicates, Heavy Duty, Mixed, Normal, Refresh, Synthetics, Timed Dry, Wool
  • Laundry pedestal (model WFP24GW) enhances ease of use; stacking kit (W10882520) provides versatile installation choices (sold separately)
  • Click here to learn more about Eco Options and Energy Efficiency
  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Depth With Door Open 90 Degrees (In)
43.31
Door Opening Height (In.)
20
Door Opening Width (In.)
20
Product Depth (in.)
25.75
Product Height (in.)
34.5
Product Width (in.)
24

Details

Amperage (amps)
30
Appliance Category
Dryer
Appliance Type
Electric Dryer
Capacity - Dryer (cu. ft.)
4.3
Color/Finish
White
Color/Finish Family
White
Control Type
Electronic
Door Material
Glass
Door Shape
Round Door
Door Style
Reversible
Dry Cycles
Air Fluff,Bulky Items,Delicates,Heavy Duty,Mixed Loads,Timed Dry,Touch Up,Wool
Dryer Drum Material
Stainless Steel Drum
Dryer Features
Adjustable End-of-Cycle Signal,Adjustable Legs,Door Window,Heat Pump,Moisture Sensor,Sensor Dry,Timed Dry
Dryer Fuel Type
Electric
Included
No Additional Items Included
Lint Filter Location
Front
Matching Washer Type
Top Load Matching
Number of Drying Cycles
10
Number of Drying Temperatures
3
Pedestal Model#
WFP24GW
Product Weight (lb.)
101
Returnable
Non-Returnable
Stackable
Stackable
Stacking Kit Model#
W10882520
Steam Function
Steam
Vent Type
Ventless
Voltage (volts)
240

Warranty / Certifications

Certifications and Listings
ADA Compliant,Energy Star,UL Listed
Manufacturer Warranty
1 Year Limited

Compare Similar Electric Dryers

IQ-Touch 24 in. 4.0 cu. ft. Electric Dryer in White
current product
4.3 cu. ft. 240-Volt White Compact Stackable Heat Pump Ventless Dryer with Wrinkle Shield Option, ENERGY STAR
4.0 cu. ft. Capacity in Inox Grey Stackable Electric Ventless Heat Pump Dryer ENERGY STAR Certified7.4 cu. ft. 240 Volt Stackable White Electric Ventless Dryer with Intuitive Touch Controls, ENERGY STAR
BrandElectroluxWhirlpoolSamsungWhirlpool
NameIQ-Touch 24 in. 4.0 cu. ft. Electric Dryer in White4.3 cu. ft. 240-Volt White Compact Stackable Heat Pump Ventless Dryer with Wrinkle Shield Option, ENERGY STAR4.0 cu. ft. Capacity in Inox Grey Stackable Electric Ventless Heat Pump Dryer ENERGY STAR Certified7.4 cu. ft. 240 Volt Stackable White Electric Ventless Dryer with Intuitive Touch Controls, ENERGY STAR
Price
$94400
$1049.00
Save $105.00 (10%)
$119900
$129900
$139900
Ratings
(202)
(76)
(7)
(51)
Capacity - Dryer (cu. ft.)44.347.4
Product Depth (in.)2425.7527.431
Dryer FeaturesAdjustable End-of-Cycle Signal,Automatic Temperature Control,Delay Start,Digital Cycle Countdown,Door Window,Moisture Sensor,Timed DryAdjustable End-of-Cycle Signal,Adjustable Legs,Door Window,Heat Pump,Moisture Sensor,Sensor Dry,Timed DryAdjustable End-of-Cycle Signal,Adjustable Legs,Control Lock,Control Sounds On/Off,Delay Start,Door Window,Front Control,Moisture Sensor,Sensor Dry,Timed DryControl Lock,Heat Pump,Moisture Sensor,Timed Dry
StackableStackableStackableStackableStackable
Matching Washer TypeFront Load MatchingTop Load MatchingFront Load MatchingFront Load Matching
Steam FunctionNo SteamSteamNo SteamNo Steam
Product Width (in.)23.6252426.227
Voltage (volts)240240240240
Vent TypeVentlessVentlessVentlessVentless
Door StyleReversibleReversibleReversibleReversible
View ProductView ProductView ProductView Product

Questions & Answers

23Questions28Answers

Reading many of the reviews that claim that the dryer doesn't dry cloth well. Is this issue relat...

Asked by BK July 17, 2017
5
Answers

The clothes and towels dry perfectly well in ours. Yes, the drying time is much longer for a load. Ours takes 1.5 hours to dry a full load. The amount of lint is less per load, and the energy consumption is well less since this uses air-source heat pump instead of high current resistance coils to heat. Slower? Yes. We don’t stand at the dryer awaiting completion - too many other things to do. Six months in, we really like this machine.

Does this washer drain automatically or do you have to manually drain the water every so often?

Asked by May 10, 2017
4
Answers

I understand you can get a device that you can put in your washers drain when your drying ,I just pull the water container out after every dry, its amazing how much water your clothes hold after a great spin ,it is not a hassel to me empty the water container easy pull our empty and put back in

is there a matching washer with this dryer

Asked by coward May 2, 2017
3
Answers

yes I understand there is and the units can be stacked.

Can you also use use this with a vent instead of ventless? I’m going to have to return it if not, the clothes don’t dry.

Asked by Brandy August 9, 2018
3
Answers

This dryer model is designed solely for ventless drying. It has no vent connection nor capability for venting. It’s operation depends upon cycling the air through the integral heat pump and the drum. It dries our clothes and towels well every time.

when this dryer is stacked can the water drain go into same standpipe as washing machine?

Asked by tk March 27, 2018
3
Answers

Yes.

The specs say this dryer is 24 inches wide, yet the photo of the dimensions says it's 42 inches w...

Asked by Lynn March 22, 2018
2
Answers

Yes, the machine is 24” wide. Products availability is affected by a lot of factors. The prevalent factor is manufacturer production and distribution. Too, this compact washer isn’t as popular in America as in other countries.

Can this dryer be stacked on top of a Samsung washer? What hardware is necessary?

Asked by lainer February 20, 2019
2
Answers

lainer, no this can not be stacked on a different brand appliance.

How does the water residue from the dryer reach the water bin? Is it pumped out with a drain pum...

Asked by win November 23, 2017
2
Answers

The water from the clothes drying is collected at the heat pump’s cooling coil and pumped out of the machine through a ribbed vinyl hose to the included water reservoir. The owner may instead connect the vinyl hose to a drain. The amount of water varies by the load size and type of fabrics. Ours varies between 4 and 8 cups of water per load. We empty the removable reservoir after every load.

where is the serial number sticker located on the dryer?

Asked by emily November 19, 2019
2
Answers

Good question Emily. The model and serial number tag is located within the dryer where the door and the dryer meet.

Steam setting? There is no water inlet at the back of the dryer to add water like other steam dry...

Asked by buns1 August 18, 2018
2
Answers

No steam option available on ours, and one water drain hose. No use for Y (wye) purchase for dryer. The wye is useful for the washer - the washer has only one inlet connection. With a wye we can selectively add warm water to wash cycle by opening the faucet on the wall.
