Model #501TS10

Store SKU #1005226547

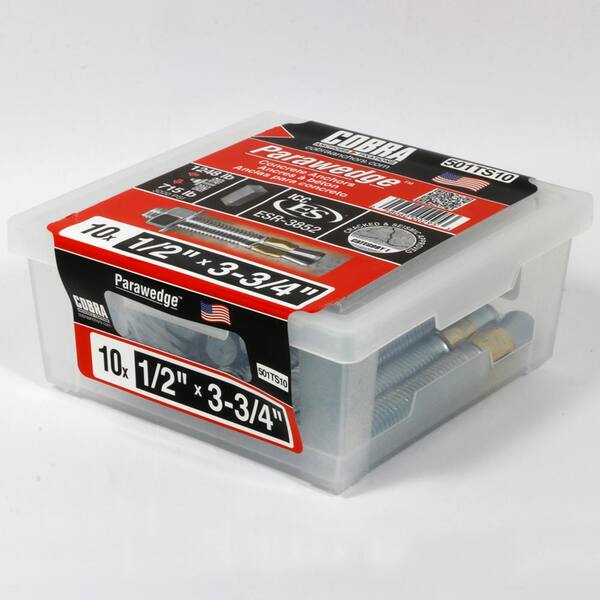

1/2 in. x 3-3/4 in. Wedge Anchor (10-Pack)

  • Carbon steel anchor component
  • UL, FM, ICC ES, and LARR certifications
  • Cold roll formed thread, chamfered head and parabolic mandrel
  • View More Details
Store
0 in stock
Text to Me

Frequently Bought Together

+
+
Price:

Product Overview

The Parawedge anchor stud is cold formed and consists of a threaded section with standard coarse bolt threads at 1 end, and a parabolic mandrel at the opposite end for a smoother expansion. It has a 360° one-piece clip that functions as a 2-piece clip for more contact, a torque controlled expansion, and can be installed into a bottomless hole. 3 head styles are available: Hex Nut, Wire Hanger and Tie Down Hook. More than 39 sizes are available, in 2 types of material: Carbon steel and 304 Stainless steel. Approvals: UL. Underwriters Laboratory - File #EX 4687.
  • Parabolic mandrel for a smoother expansion
  • 360° 1-piece clip that functions as a 2-piece clip
  • Can be installed into bottomless hole
  • Cold formed for increased strength
  • Drill an appropriate size hole into base material
  • Clean hole using a dust blower or compressed air
  • Insert the nut with a clearance of 1/8 in. to the top of the anchor
  • With a hammer or light mass, insert the anchor into the hole
  • Remove the nut and insert the object to be installed
  • Using a wrench, tighten the nut by turning clockwise until there is a strong resistance. (2 to 3 turns will fully set the anchor)
  • California residents

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Anchor Diameter (in.)
1/2"
Anchor Length (in.)
3.75
Fastener Length (in.)
3.75
Required Drill Hole Size (in.)
0.50

Details

Color Family
Silver
Fastener Head Style
Hex Nut
Fastener Plating
Zinc
Fastener Type
Wedge Anchors
Fastener/Connector Material
Steel
Fastening Base Material
Brick,Concrete
Features
No Additional Features
Finish
Silver
Finish Family
Silver
Included
Nut
Interior/Exterior
Exterior,Interior
Maximum Weight Capacity (lb.)
1248
Measurement Standard
SAE,UNC
Package Quantity
10
Product Weight (lb.)
0.173 lb
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
Cobra's only liability shall be to replace this product or refund its purchase price.
