- Outdoor NEMA 3R 125A ML 4/8 LC
- Use with equipment ground bar TGL1P (order separately)
- Compatible with THQLT (tandem) and THQLQ(quad) breakers(not THQP)
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product
The ABB load center includes a galvanized box for increased durability and reliability. The 1-piece interior removes and re-installs easily. Outdoor NEMA 3R enclosure. This load center is UL listed and ANSI Certified.
Highlights
- Rust-resistant galvanized box
- 100% rated split neutral on each side
- Accommodates top and bottom feed applications
- Full length neutral bars for fast and easy wiring
- Single-phase, 3-wire, 150 Amp, 240-Volt maximum, 22K AIC rating
- Accepts ABB type THQL and THHQL circuit breakers
- All neutral holes are rated for 14 - 4 wire
- Meets UL and ANSI safety requirements
- Learn More About Electrical Panels Here in our Buying Guide.
- Click here for more information on Electronic Recycling Programs
- Return Policy
Product Information
Specifications

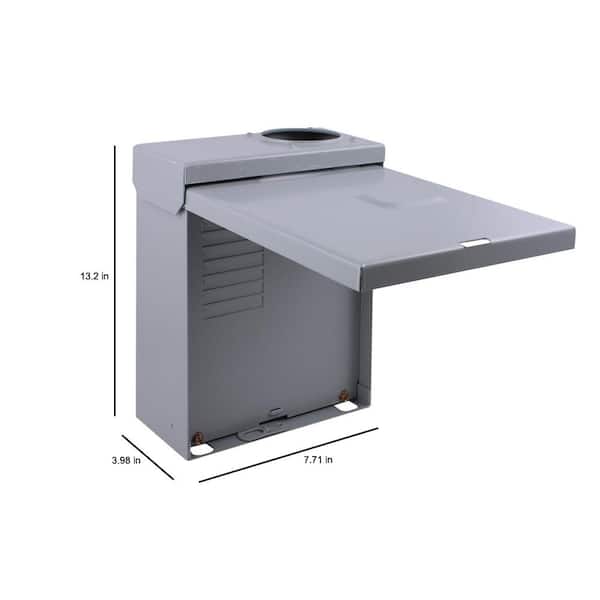

Dimensions: H 13.2 in, W 7.71 in, D 3.98 in
Dimensions
Product Depth (in.) | 3.98 in |
|---|---|
Product Height (in.) | 13.2 in |
Product Width (in.) | 7.71 in |
Details
Breaker Box Type | Subpanel |
|---|---|
Connection Type | Non-Neutral |
Electrical Product Type | Main Lug/ Main Lug Kit |
Indoor/Outdoor | Outdoor |
Maximum Amperage (A) | 125 A |
Mounting Type | Surface |
NEMA Configuration | NEMA 3R |
Number of Circuits | 8 |
Number of Spaces | 4 |
Phase Type | 1 Phase |
Product Weight (lb.) | 7 lb |
Returnable | 90-Day |
Series Type | Not Specified |
Voltage (V) | 240 V |
Warranty / Certifications
Certifications and Listings | UL Listed |
|---|---|
Manufacturer Warranty | One year warranty from first use. |
Questions & Answers
Are there feed through lugs
Can all 8 circuit's be 120v
Does it come with a blank for the hole in the top?
Yes. It comes with a plastic waterproof cap and screws for it.
convertible?
Viewing 1-4 of 4
