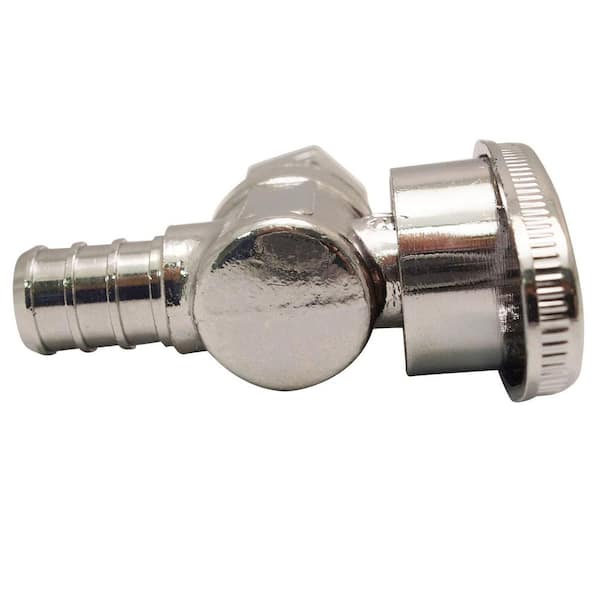

1/2 in. Chrome-Plated Brass PEX-B Barb x 3/8 in. Compression Quarter-Turn Angle Stop Valve

$7.25
  • Constructed of lead free dezincification resistant (DZR) brass
  • Quarter-turn, single lever flow control
  • Chrome plated brass ball
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

The ApolloPEX 1/2 in. Chrome-Plated Brass PEX Barb x 3/8 in. Compression Quarter-Turn Angle Stop Valve is simple to install and provides flow control through a quarter-turn ball valve. Most commonly used at point of use fixtures, it allows for repair and maintenance of fixtures without the need to shut down flow control to the entire system. The 3/8 in. compression outlet provides the capability to install 3/8 in. O.D. tubing or 3/8 in. supply lines. It is designed for use on point of use fixtures such as dishwashers, toilets and faucets. ApolloPEX barb fittings are a key component of the most economical potable water piping systems. Also capable of integration into hydronic heating systems, ApolloPEX valves can be secured into place using copper crimps, stainless steel pinch clamps or stainless steel crimp sleeves (all sold separately). The ApolloPEX system is a comprehensive piping system comprised of brass fittings, poly alloy fittings, manifolds, valves, fasteners, tools and tubing designed for implementation in water delivery systems, simple or complex.

Highlights

  • Constructed of chrome-plated lead free dezincification resistant (DZR) brass for superior reliability and strength
  • Most economical piping system available
  • Quarter-turn handle design for simple flow control
  • Compatible with PEX pipe
  • Meets UPC, IPC and cUPC standard
  • Can be secured in place using copper crimps, stainless steel pinch clamps or stainless steel crimp sleeves
  • NSF listed
  • Barb x compression connection for PEX plumbing systems
  • Rated to 200 degree F and 200 psi
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 301541237

Model # APXVA1238C

Store SKU # 275301

Store SO SKU #1002405062

Additional Resources

Shop All Apollo

Specifications

Dimensions: H 2.1 in, W 0.7 in, D 0.7 in

Dimensions

Inlet Diameter (In.)

1/2

Inlet Size

1/2 In.

Outlet Diameter (In.)

3/8

Product Depth (in.)

0.7 in

Product Height (in.)

2.1 in

Product Length (in.)

2 in

Product Width (in.)

0.7 in

Valve Inlet Diameter (in.)

1/2

Details

Application

Potable Water

Color/Finish

Chrome

Color/Finish Family

Chrome

Compatible Pipe Material

PEX

Compatible Product

Faucet, Other, Refridgerator

Connection

Barb x Comp

Features

Lead Free, Quarter Turn

Indoor/Outdoor

Indoor

Inlet Fitting End Type

PEX

Material

Brass

Maximum Pressure (PSI)

200 PSI

Maximum Working Temperature (F)

200

Outlet Fitting End Type

Compression

Pack Size

1

Product Weight (lb.)

0.161 lb

Returnable

90-Day

Stop Valve Type

Angle

Valve Configuration

Angle

Valve Connection

Clamp/Crimp

Valve Type

Supply Stop

Warranty / Certifications

Manufacturer Warranty

5 Years: Must be installed per published installation instructions.
