Model #G2BRPX19X C1

Store SKU #1005052995

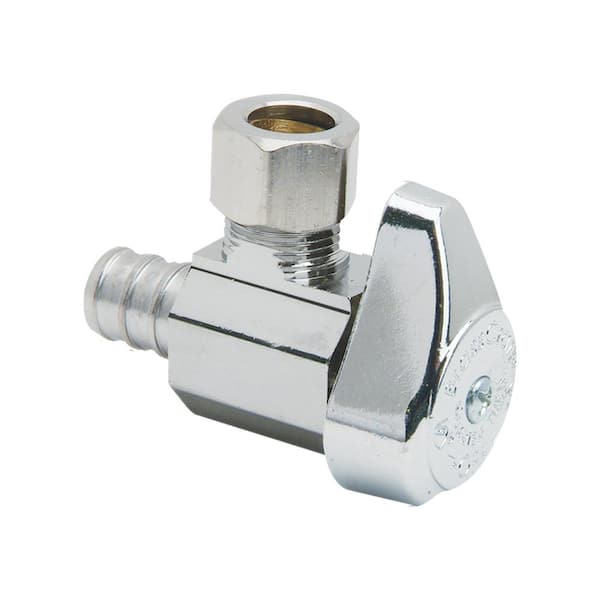

1/2 in. Crimp PEX Barb Inlet x 3/8 in. Compression Outlet Angle Valve

$848
  • Angle valve compatible with PEX pipe material
  • Smooth on/off flow control with a quarter-turn 90° handle
  • 100% leak tested to ensure reliable, leak-free performance
  • View More Details
Store
0 in stock
Text to Me
How to Get It

Frequently Bought Together

+
+
Price:
$848

Product Overview

BrassCraft's G2 Series stops offer durable construction and proven performance. The G2 series design features a 1-piece shut-off mechanism that provide years of smooth, 1/4 turn operation without freeze-ups. Chrome plated for corrosion resistance and refined appearance. BrassCraft G2 series valves are 100% leak tested to ensure reliable, leak-free operation. Crimp PEX end designed to ASTM F1807.
  • Machined 1-piece brass construction
  • 100% leak tested to ensure reliable, leak-free performance
  • Temperature rating: 40°F to 140°F
  • Pressure rating: 125 psi maximum
  • IAPMO and CSA listed to ASME A112.18.1/CSA B125.1
  • Designed, machined and assembled
  • 1/2 nominal crimp barb x 3/8 in. OD compression straight
  • Compatible with PEX
  • For use in potable water distribution systems, not intended for recirculating water systems that produce continuous use temperatures above 115°F, for those applications, use our KT series ball stops
  • 1-piece shut off mechanism provides smoother operation without freeze ups even after long periods of non-use
  • 100% leak tested
  • Positive 1/4 turn shut off

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Shut-off Valves

Best Seller1/2 in. Nominal Compression Inlet x 3/8 in. O.D. Compression Outlet Multi-Turn Angle Valve1/2 in. Crimp PEX Barb Inlet x 3/8 in. Compression Outlet Straight Valve
current product
1/2 in. Crimp PEX Barb Inlet x 3/8 in. Compression Outlet Angle Valve
1/2 in. Push-to-Connect x 3/8 in. O.D. Compression Chrome-Plated Brass Quarter-Turn Angle Stop Valve
BrandBrassCraftBrassCraftBrassCraftSharkBite
Name1/2 in. Nominal Compression Inlet x 3/8 in. O.D. Compression Outlet Multi-Turn Angle Valve1/2 in. Crimp PEX Barb Inlet x 3/8 in. Compression Outlet Straight Valve1/2 in. Crimp PEX Barb Inlet x 3/8 in. Compression Outlet Angle Valve1/2 in. Push-to-Connect x 3/8 in. O.D. Compression Chrome-Plated Brass Quarter-Turn Angle Stop Valve
Price
$779
Buy 20 or more $3.90
$789
$848
$1316
Buy 12 or more $7.90
Ratings
(648)
(26)
(30)
(928)
ConnectionComp x CompPEX Barb x CompPEX Barb x CompPTC x Comp
MaterialBrassBrassBrassBrass
Inlet Diameter (In.)1/21/21/21/2
Outlet Diameter (In.)3/83/83/83/8
Valve ConfigurationAngleStraightAngleAngle
Outlet Fitting End TypeCompressionCompressionCompressionCompression
Compatible Pipe MaterialCopperPEXPEXMulti-Purpose
Inlet Fitting End TypeCompressionPEXPEXPush to Connect
ApplicationPotable WaterPotable WaterPotable WaterPotable Water
Pack Size1111
View ProductView ProductView ProductView Product

Specifications

Dimensions

Inlet Diameter (In.)
1/2
Inlet Size
1/2 In.
Outlet Diameter (In.)
3/8
Product Depth (in.)
1.07000
Product Height (in.)
1.5100
Product Length (in.)
1.5100
Product Width (in.)
2.0600
Valve Inlet Diameter (in.)
1/2

Details

Application
Potable Water
Color/Finish
Chrome
Color/Finish Family
Chrome
Compatible Pipe Material
PEX
Compatible Product
Faucet
Connection
PEX Barb x Comp
Features
No Additional Special Features
Indoor/Outdoor
Indoor
Inlet Fitting End Type
PEX
Material
Brass
Maximum Pressure (psi)
125
Maximum Working Temperature (F)
160
Outlet Fitting End Type
Compression
Pack Size
1
Product Weight (lb.)
.16146
Returnable
90-Day
Stop Valve Type
Angle
Valve Configuration
Angle
Valve Connection
Clamp/Crimp
Valve Type
Supply Stop

Warranty / Certifications

Manufacturer Warranty
None

Questions & Answers

Typical questions asked about products:

  • Is the product durable?
  • Is the product easy to use?
  • What are the dimensions of the product?

Customer Reviews

  • 4.7
    out of 30 reviews
  • 100%recommend this product
Filter by:
Showing 1-10 of 30 reviews
I submitted a review for this product on 2 February which evidently was not received or recorded....
I submitted a review for this product on 2 February which evidently was not received or recorded. I absolutely love these valves for several reasons! They are very simple to install with the crimping tool, you can immediately determine the proper distance from the wall. Also there is no worry about getting them straight since they swivel in the pipe. In addition, the 1/4 turn valve makes turning on and shutting the water offer easy and almost effortless. Older style valves required several turns and may still leak some if they were old. This is one of the best innovations in plumbing to date!
by
  • Recommended
A quick way to connect 1/2 in PEX to either a compression fitting, 3/8 copper, or 3/8 plastic. In...
A quick way to connect 1/2 in PEX to either a compression fitting, 3/8 copper, or 3/8 plastic. Internet #312156859 Model # G2BRPX19X C1 Store SKU #1005052995 BrassCraft 1/2 in. Nominal Crimp PEX Barb Inlet x 3/8 in. O.D. Compression Outlet Angle Valve A quick way to install a cutoff valve on a PEX line. It can be used with a braided supply line and it comes with two different collets so that it can be used with copper or plastic. See photo. Like most Crimp on connectors, it only takes a few seconds and you have a tight seal. I like the 1/4 turn operation and it is supposed to not freeze-ups over time. Chrome plated for looks and is supposed to make it corrosion resistance. MANUFACTURER'S COMMENT: Machined from 1-piece brass 100% leak tested to ensure reliable, leak-free performance Temperature rating: 40°F to 140°F Pressure rating: 125 psi maximum Crimp PEX end designed to ASTM F1807. IAPMO and CSA listed to ASME A112.18.1/CSA B125.1 1/2 nominal crimp barb x 3/8 in. OD compression straight Positive 1/4 turn shut off
by
  • Recommended
These fittings made by BrassCraft are PEX crimp fittings. They require no soldering, but do require special crimp tools to install. This particular fitting is a ½” PEX crimp by 3/8” compression. They are 90 degree ¼ turn valves. This fitting is the standard for using on toilet and under sink connections. They are an excellent choice to use when the supply line exits through the wall. The compression fitting comes with a brass ferrule installed, but also includes a plastic ferrule for use on plastic lines. The PEX system for plumbing is very easy to use and install, as long as you have the required tools used for making the crimps. I find these fittings from BrassCraft are quality valves made right here in the U.S.A.
by
  • Recommended
Have used Brass Craft for my toilet and under the sink valves for many years. As we adapt our 50+...
Have used Brass Craft for my toilet and under the sink valves for many years. As we adapt our 50+ years home to "age in place- we are remodeling our bath rooms- higher toilets, lower threshold showers, new vanities, more grab bars. At the same I time I am replacing all the supply line cut off valves and old copper lines. The old valves had served their purpose and I am gradually replacing them. They were the older globe vales and I now prefer the 1/4 turn ball valves. Also the past I have used the Shark-Bite 1/4 turn ball valves and have had no problems but the valves will turn on the pipe. On my new PEX piping I prefer the barb PEX inlet - they take a minute or two to longer to install- but do not turn on the pipe- and are a few dollars less than the Shark Bite inlet. I am sure these will last 50 years as the did the 50 year old ones.
by
  • Recommended
The Brasscraft 1/4 turn angle valve is a shutoff valve used to control water flow for installatio...
The Brasscraft 1/4 turn angle valve is a shutoff valve used to control water flow for installations such as toilets and faucets where the piping comes from the wall horizontally. This shutoff valve is used with pex pipe. Water shutoff requires only a quick 1/4 turn, I recommend replacing old shutoffs which require several turns with 1/4 turn shutoffs. Be sure to select the turnoff to suit the type and direction of piping.
by
  • Recommended
A very nice compact little valve for your under sink water lines. Quarter turn actions like these...
A very nice compact little valve for your under sink water lines. Quarter turn actions like these are much better for these typical valve locations under sinks or other enclosed spaces. The valves have a good quality finish and the box includes a plastic ferrule as well as the normal brass ferrule. They operate smoothly and easily and have positive stops. I especially like that you can run your 1/2" PEX right up to the valve and then go directly to the 3/8" faucet line.
by
  • Recommended
A few years ago, I transitioned over to PEX ... and have not looked back. I now mostly use push-to-connect fittings, but I had a few of the old copper clamp rings left over. Being someone who throws nothing away, I figured I would get these to use them up. If you have the clamp and fittings, these are much cheaper. I like that these are a simple 1/4 turn. No more turning and turning, and wondering if it is totally open (going to far and making it drip) or wondering if it is totally shutoff (over tightening and cutting the gasket). I am not a fan of trying to fit the clamp into tight spaces. The body is chrome over brass, but the knob is chromed plastic.
by
  • Recommended
1 person found this helpful
i ordered these 90 degree angle valves to use with 1/2 inch pex water lines where a cut off valve...
i ordered these 90 degree angle valves to use with 1/2 inch pex water lines where a cut off valve is needed for a faucet or toilet. the valves are made of brass and are 1/4 turn shut off which i prefer to use because they seem to last longer and are less likely to leak when turned on and off multiple times. they are very easy to install using pex pinch clamp crimp fittings as long as you have access to a pex crimping tool, just slide a clamp over the pex line, insert the barb end of the valve into the pex line, slide the clamp over the covered barb and crimp using the tool. attach your water line to the compression outlet and your finished. i think these valves are a great choice to use with pex water lines and i am completely satisfied with this product.
by
  • Recommended
Modern upgrade for installation ease and long life. PEX is the future of plumbing being proven fo...
Modern upgrade for installation ease and long life. PEX is the future of plumbing being proven for decades as much faster, easier, more flexible in service. Quarter turn valves and easier to use but more importantly they outlive multi-turn gate type valves when it come to service life. You need a crimping tool for the clamping band, and a band and thats pretty much it for installation.
by
  • Recommended
These Brasscraft 1/4 Turn Straight value are a must have in any plumbing bag. So easy to use and ...
These Brasscraft 1/4 Turn Straight value are a must have in any plumbing bag. So easy to use and install it almost makes it fun. All you need is the value the pipe the Pex tool and a clamp ring. Just cut the Pex to the right length and insert the value and crimp on the ring. I like the angle value for under sinks cause if you do not have the head room you can go in a right angle and then up to the faucet.
by
  • Recommended
