#1 Home Improvement Retailer

Internet # 300134990

Model # G2PS14B200HX F

Store SKU # 1002115157

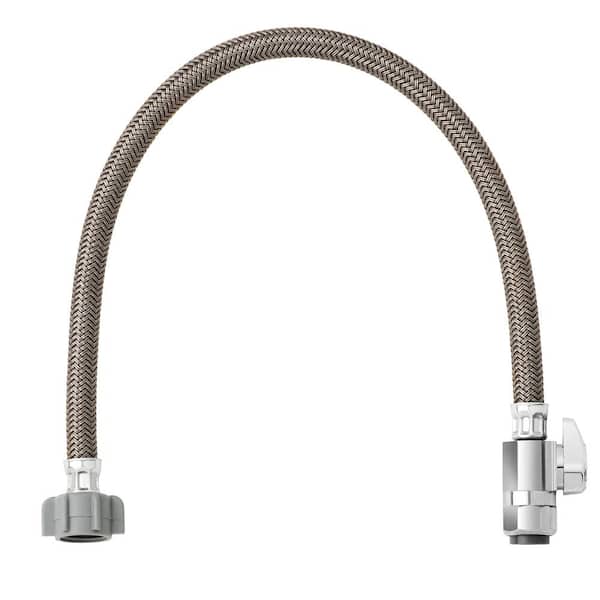

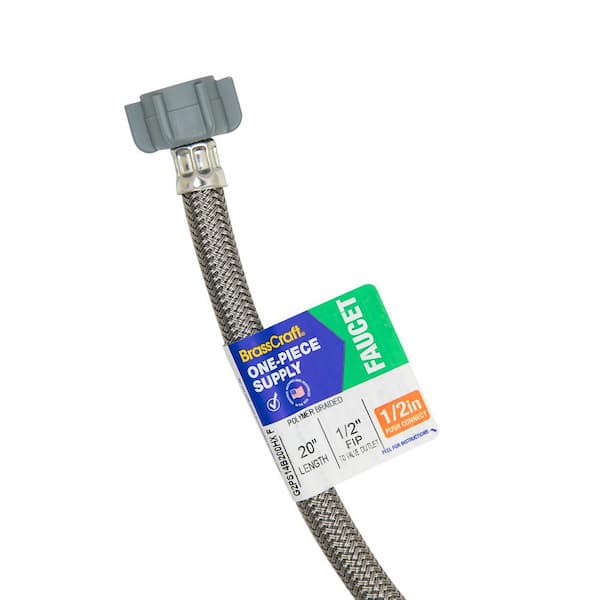

1/2 in. Nominal Push Connect x 1/2 in. FIP x 20 in. SpeediOne Braided Faucet Connector and 1/4-Turn Straight Valve

$17.75
Buy 25 or more $8.88
  • High tensile strength enables free bending in confined spaces
  • Heavy-duty brass body is resistant to corrosion
  • Inbuilt pre-inserted tube stiffener enables tool-free setup
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

BrassCraft's push connect one-piece water supply combines their trusted brass water valve with their flexible braided polymer connector for one quick easy-to-install solution. BrassCraft's one-piece connection features push connect technology on the valve inlet and a hand-tighten wing nut on the outlet to provide a significant savings in installation time and cost. Push connect valve inlet requires no special tools to install and comes equipped with a pre-inserted tube stiffener to make the product ideal for copper, PEX and CPVC piping systems. The braided polymer fibers of the connector are designed to bend freely without kinking or crimping in tight quarters and resist corrosion caused by chemicals found in common household, tile and glass cleaners. In addition, its reinforced inner hose resists corrosion under harsh water conditions.

Highlights

  • 1-piece unit combines valve and supply line
  • Saves time with one less connection
  • No special installation tools required
  • Installation ready with pre-inserted tube stiffener
  • Fast, reliable and secure
  • Compatible with copper, PEX and CPVC
  • Remove with combination removal tool or 5/8 in. open end wrench
  • Connector bends freely without kinking or crimping in tight quarters
  • No-lead certified
  • IAPMO and CSA listed to ASME A112.18.1/CSA B125.1
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 300134990

Model # G2PS14B200HX F

Store SKU # 1002115157

Additional Resources

Shop All BrassCraft
From the Manufacturer

Specifications

Dimensions: H 1.10 in, W 2.40 in, D 1.10 in

Dimensions

Inlet Diameter (In.)

1/2

Inlet Size

1/2 In.

Outlet Diameter (In.)

1/2

Product Depth (in.)

1.10 in

Product Height (in.)

1.10 in

Product Length (in.)

20.55 in

Product Width (in.)

2.40 in

Valve Inlet Diameter (in.)

1/2

Details

Application

Potable Water

Color/Finish

Chrome

Color/Finish Family

Chrome

Compatible Pipe Material

Copper

Compatible Product

Faucet

Connection

PTC

Features

Flexible

Indoor/Outdoor

Indoor

Inlet Fitting End Type

Push to Connect

Material

Brass

Maximum Pressure (PSI)

125

Maximum Working Temperature (F)

160

Outlet Fitting End Type

FIP

Pack Size

1

Product Weight (lb.)

.4359 lb

Returnable

90-Day

Stop Valve Type

Straight

Valve Configuration

Straight

Valve Connection

Push Connect

Valve Type

Stop

Warranty / Certifications

Manufacturer Warranty

Limited manufacture warranty

Questions & Answers

8Questions
caret
Q:My Pex pipe is 1/2", same diameter as the white plastic inside the inlet. How do I get the pex pipe to push in or do I have the wrong size inlet?
by|Apr 9, 2024
1 Answer
Answer This Question

A:  Hello, Thank you for your question. We would require more information to determine if our Connector (or other product) is designed for that use. Please contact our Customer Support Team at 877-277-7755 and reference this review.

by|Apr 10, 2024
    caret
    Q:Why do you show a toilet installation video for a faucet supply line? Threads to toilet inlet can be different than threads to a faucet inlet. Confusing when comparing pics to product wish to purchase. U do something like this on so many products.
    by|Dec 19, 2023
    1 Answer
    Answer This Question

    A:  Hello, Thank you for your question. We would require more information to determine what is needed (or other product) is designed for that use. Please contact our Customer Support Team at 877-277-7755 and reference this review.

    by|Dec 19, 2023
      caret
      Q:will this work with pvc
      by|Jun 29, 2023
      1 Answer
      Answer This Question

      A:  Hello, Thank you for your question. We would require more information to determine if our Connector (or other product) is designed for that use. Please contact our Customer Support Team at 877-277-7755 and reference this review.

      by|Jun 30, 2023
        caret
        Q:How do you remove it
        by|Aug 8, 2022
        1 Answer
        Answer This Question

        A:  Thank you for your question. We would require more information . Please contact our Customer Support Team at 877-277-7755 and reference this review.

        by|Aug 8, 2022
          Showing 1-4 of 8

          Customer Reviews

          4.6 out of 5

          • 4.6 out of 192 reviews
          • 90% recommend this product
          Filter by:
          Showing 1-10 of 192 reviews
          Stay Away!
          I installed 2 of these and both valves began to leak after a day or so. They caused my brand new vanity floor to swell and ruined it.
          by
          Response from BrassCraft MfgNov 11, 2021
          We are very sorry to hear about your experience with our water stops.  We are always looking for ways to improve our products.  We would like to hear more about your experience.  Please contact our Customer Support Team at 877-272-7755 and reference this review.
            So far so good
            I was a bit skeptic about the reviews on how easy it is to install, but it is indeed - easy. So far so good.
            by
              • Recommended
              Grate product easy to install no hassle.
              Grate product easy to install no hassle.
              by
              • Verified Purchase
              • Recommended
              Nice for the price and it works
              by
              • Verified Purchase
              Easy to connect and bendy.
              by
              • Verified Purchase
              It's OK works really good
              by
              • Verified Purchase
              I had some lines about 10 years old that began to leak. I was able to take the old ones off. Then I was able to go under the sink and hand tighten the Brasscraft very easily in a tight space and then slide the push connect into the old gray pipe which fits perfectly. 5 minute install and no tools need for me. Check the labels closely as sometimes the FAUCET lines are mixed in with the TOILET lines on the display. Works great and no more leak.
              by
              • Verified Purchase
              by
              • Verified Purchase
              No staff on floor to help with questions
              by
              • Verified Purchase
              by
              • Verified Purchase
              Showing 1-10 of 192 reviews

              Compare Similar Items
