Model # PVC 02304 1200HD

Store SKU # 705330

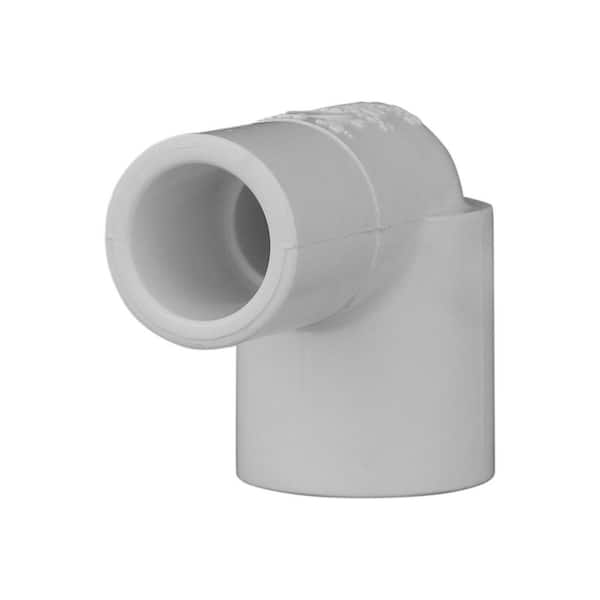

1-1/2 in. PVC Schedule. 40 90-degree Spigot x S Street Elbow Fitting

$4.59
  • PVC Sch 40 fittings are white and used in pressure applications
  • Sch 40 fittings are installed using primer and solvent cementing
  • PVC Sch 40 fittings are for use where systems won't exceed 140°
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
Product Details

About This Product

PVC schedule 40 pipe and pressure fittings are used in irrigation, underground sprinkler systems, swimming pools, outdoor applications and cold water supply lines. These fittings are highly resilient, with high-tensile and high-impact strength. Intended for pressure use where systems will not exceed 140° F. Conforms to meet Standards: ASTM D 1784, ASTM D 2466, NSF 14 and 61PVC Schedule 40. Has better sound deadening qualities than PVC Schedule 40 DWV Foam Core and ABS Foam Core. Installation requires the use of primer and solvent cement. All Charlotte Pipe products are manufactured in the USA.

Highlights

  • White pipe and fittings with red print
  • Intended for pressure use
  • For use where systems will not exceed 140° F
  • PVC schedule 40 pipe and pressure fittings are used in irrigation, underground sprinkler systems, swimming pools, outdoor applications and cold water supply lines
  • Conforms to meet Standards: ASTM D 1784, ASTM D 2466, NSF 14 and 61
  • Require no special tools for cutting and to be installed with solvent cement
  • Plus/minus1.61 in. Inner Dimension and 1.9 in. Outter Dimension
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 203822499

Model # PVC 02304 1200HD

Store SKU # 705330

Specifications

Dimensions: H 2.250 in, W 3.719 in, D 3.938 in

Dimensions

Double Fitting Size1-1/2" x 1-1/2"Fitting 1 size1-1/2"
Fitting 2 size1-1/2"Fitting Size Dimensions1-1/2" x 1-1/2"
Product Depth (in.)3.938 inProduct Height (in.)2.250 in
Product Width (in.)3.719 inSingle Fitting Size1-1/2"

Details

ApplicationNon-Potable WaterBend Degree90 Degree
Color FamilyWhiteColor/FinishWhite
Compatible Pipe MaterialPVCConnection 1Spigot
Connection 2SocketConnectivitySolvent Cemented
DWVPressureFeaturesUnderground Use
Fitting or Connector TypeElbowFitting/ Connector CollectionPVC
MaterialPVCMaximum working pressure (psi)330
Maximum Working Temperature (F)140Pack Size1
Pipe or Fitting Product TypeFittings & ConnectorsProduct Weight (lb.).290 lb
Reducing FittingNoReturnable90-Day
Schedule TypeSchedule 40

Warranty / Certifications

Manufacturer WarrantyCharlotte Pipe and Foundry Company (Charlotte Pipe) Products are warranted to be free from manufacturing defects and to conform to currently applicable ASTM standards for a period of five (5) years from date of delivery

Questions & Answers

2Questions
caret
Q:What size pipe is the small outlet on the elbow?
by|Mar 13, 2023
1 Answer
Answer This Question

A:  the image is misleading, sorry. the configuration for this fitting is 1 1/2 x 1 1/2. For more information or a recommendation from Charlotte Pipe please contact our Technical Services Department at 800-438-6091.

by|Mar 14, 2023
    caret
    Q:Can two of these pipes be linked together
    by|Feb 12, 2018
    2 Answers
    Answer This Question

    A:  Yes, with the addition of a coupler, you can connect two elbow pieces.

    by|May 5, 2023

      A:  Yes, the male end of the street 90 has the same outer diameter as regular pipe. Because of this, you can insert the male end of one street 90 into the female socket of another street 90, or any other female socket fitting. Because of this, the street 90 is good for making tight bends, 180 degree turns, or close two-angle bends.

      by|Feb 1, 2024
        5 found this answer helpful
        Showing 1-2 of 2

        Customer Reviews

        4.7 out of 5
        • 4.7 out of 101 reviews
        • 100% recommend this product
        Filter by:
        Showing 1-10 of 101 reviews
        I have bought a number of pipe fittings from Charlotte Pipe. I have a pond and many of these PVC...
        I have bought a number of pipe fittings from Charlotte Pipe. I have a pond and many of these PVC fittings are appropriate. I actually bought mainly 45 degree fittings and only one 90. Sharp 90's should be avoided in most cases due to the disruption and slow down in flow. However, for other projects where flow is not a factor, schedule 40 PVC fittings such as these are great (I have even seem them used for lightweight shelving for on-the-go set-ups such as street fairs). In my case, I was creating a bypass for my pond skimmer with a tee, shutoff and 90 attached to PVC 2" hose material returning back to the pond (rather than going to my filter). NOTE: The above fitting is NOT appropriate for DWV (drain, waste and venting) which should be much less sharp. Also note that I live on the west coast. Here they use that UPC plumbing codes which are stricter than most of the country. You must use ABS black pipe for DWV, not PVC. Remember, PVC you must use a primer and glue on your fittings (ABS uses just glue - no primer). Also remember, if you are mixing PVC and ABS together, there is a glue for that - don't just use ABS or PVC glue. All these glues and primer can be found at HD.
