Model # CHFN115A1CS

Store SKU # 1004856154

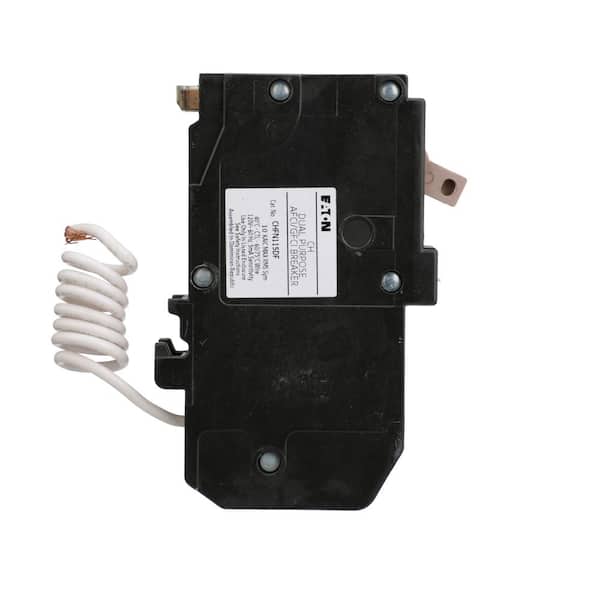

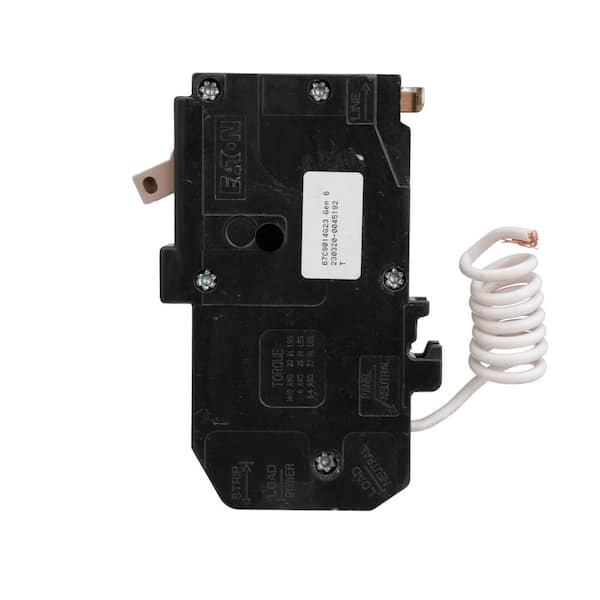

CH 15 Amp All in One AF/GF Breaker

$65.81
Apply Now
Pay $40.81 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Single device for AFCI and GFCI protection
  • Trip flag confirms the breaker status
  • Built-in LED indicates seven trip causes
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

Eaton's CH Circuit Breakers provide premium overload protection. The Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks. Eaton's dual purpose arc fault/ground fault (AFCI/GFCI) circuit interrupter offers both types of protection in one familiar package, provides quick installation, and a single location to easily access and identify tripped circuits. The short-body AF/GF breaker can replace or fulfill all AFCI, GFCI or AF/GF requirements in an Eaton panel. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions. Multiple breakers have an internal common trip connection to operate all poles simultaneously. Handles are marked with ON-OFF indication and ampere rating of the breaker.

Highlights

  • 1-pole, 15-amp, 120-volt

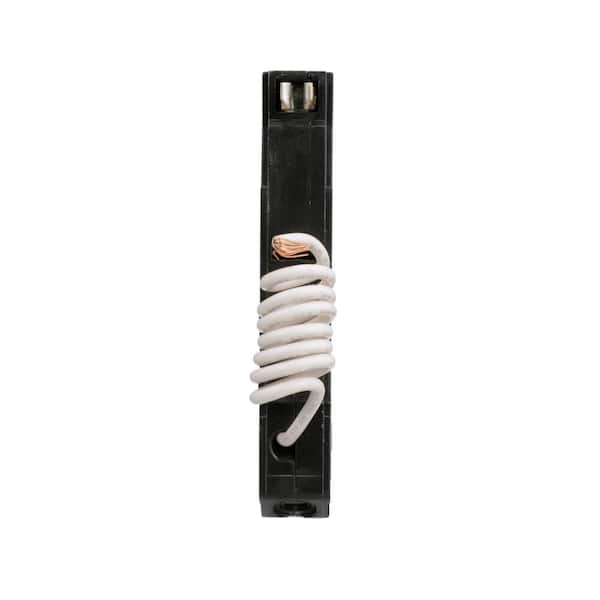

  • Standard pigtail
  • Compatible for use in eaton type CH load centers and meter breaker panels
  • Interrupt rating-10-kAIC
  • Provides 1-device for both arc fault (AFCI) and ground fault (GFCI) protection for the entire circuit, allowing for a single point of reset
  • Offers complete protection from AFCI and GFCI for the entire circuit, including home-runs
  • Enables a lower installed cost versus other code-approved alternatives by using only one device to achieve both AFCI and GFCI protection
  • Integral LED indicates different trip causes including thermal overload indication, thus reducing troubleshooting time
  • Thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions
  • Includes a trip flag to differentiate between a trip and the breaker being turned off
  • Trip codes are stored permanently into the breaker's memory, to help identify "trip" history
  • Reduced clutter of pigtails provides a clean gutter space and professional appearance
  • Handles are marked with on-off indication and ampere rating of the breaker
  • Meets areas requiring AFCI protection under the 200-and all subsequent edition of the NEC
  • Limited lifetime warranty
  • Click here for more information on Electronic Recycling Programs
  • Return Policy

Product Information

Internet # 311720932

Model # CHFN115A1CS

Store SKU # 1004856154

Additional Resources

Shop All Eaton

Specifications

Dimensions: H 4.7 in, W 3.25 in, D .75 in

Dimensions

Product Depth (in.)

.75 in

Product Height (in.)

4.7 in

Product Width (in.)

3.25 in

Details

AIC Rating

10000

Breaker Type

Main Breaker

Connection Type

Neutral

Electrical Product Type

Breaker

Interruption Type

AFCI/GFCI

Maximum Amperage (A)

15 A

Mounting Type

Plug-On

Number of Poles

Single

Pack Size

1

Power Distribution Features

Trip Indicator

Product Weight (lb.)

.5 lb

Returnable

90-Day

Series Type

CH

Trip Unit

Electronic

Voltage (V)

120/240 V

Warranty / Certifications

Certifications and Listings

UL Listed

Manufacturer Warranty

Limited lifetime

Questions & Answers

15Questions
caret
Q:Does this breaker have combination arc fault protection also? Is this the latest version of the CH style dual function circuit breaker?
by|Feb 16, 2024
1 Answer
Answer This Question

A:  Hello, Yes, the CHFN115A1CS offers both arc fault and ground fault protection and that is the newest version. If you have more questions or concerns, please call our technical support team at 877-386-2273 Opt. 2 Opt. 3 Opt. 1 and we would be happy to assist you.

by|Feb 28, 2024
    caret
    Q:Hi, Does this breaker replace the Eaton ARC Fault Breaker BR115AF? thank you
    by|Oct 30, 2023
    1 Answer
    Answer This Question

    A:  Hello, The CHFN115A1CS wouldn't work because it is a different style of breaker. However, the BRN115A1CS could replace the BRN115AF, with added ground fault protection. If you need more help finding a replacement breaker, please call our technical support team at 877-386-273 Opt. 2 Opt. 3 Opt. 1 and would be happy to assist you.

    by|Oct 30, 2023
      caret
      Q:Does this breaker replace the cutler hamer breaker.
      by|Aug 21, 2023
      1 Answer
      Answer This Question

      A:  Hello, The CHFN115A1CS is UL listed for CH style load centers. Ch Load centers usually have a sandalwood (tan) color enclosure, and the breakers have a tan colored handle. If you need help selecting a breaker, please call our technical support team at 877-386-273 Opt. 2 Opt. 3 Opt. 1 and would be happy to assist you.

      by|Aug 25, 2023
        caret
        Q:Can this replace the CHFCAF115?
        by|Jun 13, 2023
        1 Answer
        Answer This Question

        A:  Hello, Yes this would be a suitable replacement. The only difference would be that the CHFN115A1CS would also provide ground fault protection in addition to arc fault protection.

        by|May 17, 2024
          1 found this answer helpful
