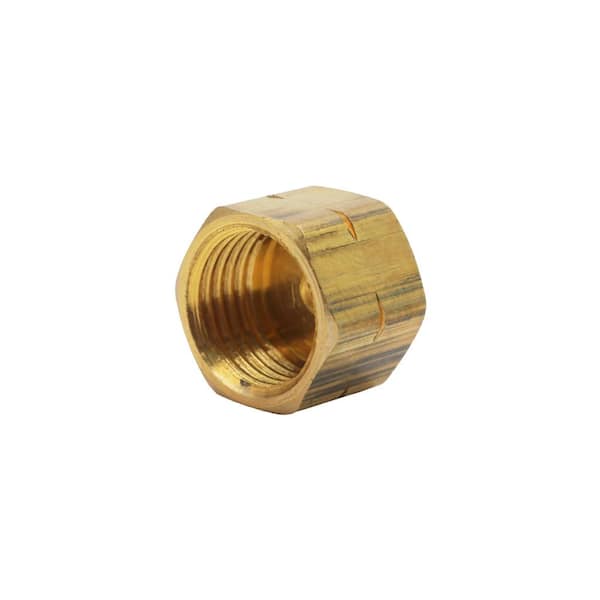

1/4 in. OD Compression Brass Cap Fitting

  • Ideal for gasoline, grease, oil or water
  • For use with copper, brass, aluminum or plastic tubing
  • Easy to install, used with low to mid pressure applications
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

These Brass Compression Caps are made for low to mid pressure applications. They conform to NSF 61 and 372. The caps are designed to fit the outside of tubes and threaded on the inside and feature a lead-free, corrosion resistant brass.
  • 1-piece per package
  • LFA-5
  • Do not overtighten
  • Use with copper, brass, aluminum or plastic tubing on gasoline, grease, oil or water
  • Not for use with steel tubing
  • Closes of end of tube
  • California residents

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Brass Fittings

1/4 in. Compression Brass Sleeve Fittings (3-Pack)
current product
1/4 in. OD Compression Brass Cap Fitting
3/8 in. Flare Brass Cap Fitting1/4 in. OD Compression Brass Coupling Fitting
BrandEverbiltEverbiltEverbiltEverbilt
Name1/4 in. Compression Brass Sleeve Fittings (3-Pack)1/4 in. OD Compression Brass Cap Fitting3/8 in. Flare Brass Cap Fitting1/4 in. OD Compression Brass Coupling Fitting
Price
Ratings
(45)
(32)
(14)
(210)
Fitting 1 size1/4"1/4"3/8"1/4"
Fitting or Connector TypeSleeveCapCapCoupling
ConnectivityCompressionCompressionThreadedCompression
ApplicationAir,OilAir,Oil,Potable WaterAir,Oil,Potable WaterAir,Oil,Potable Water
FeaturesCorrosion Resistant,Lead FreeThreadedThreadedCorrosion Resistant,Lead Free,Threaded
Pack Size3111
MaterialBrassBrassBrassBrass
View ProductView ProductView ProductView Product

Specifications

Dimensions

Assembled Depth (in.)
0.50 in
Assembled Height (in.)
0.39 in
Assembled Width (in.)
0.28 in
Fitting 1 size
1/4"
Product Depth (in.)
0.5
Single Fitting Size
1/4"

Details

Application
Air,Oil,Potable Water
Color Family
Brass
Color/Finish
Brass
Compatible Pipe Material
Multi-Purpose
Connection 1
Comp
Connectivity
Compression
Features
Threaded
Fitting or Connector Type
Cap
Fitting/ Connector Collection
Brass
Material
Brass
Maximum working pressure (psi)
400
Maximum Working Temperature (F)
250
Pack Size
1
Pipe or Fitting Product Type
Fittings & Connectors
Product Weight (lb.)
0.05
Reducing Fitting
No
Returnable
90-Day

Warranty / Certifications

Certifications and Listings
NSF Certified
Manufacturer Warranty
1 Year Limited

Questions & Answers

14Questions16Answers

Can this be used to cap off my water valve that was used for refrigerator ice-maker? I've turned ...

Asked by shoppits March 25, 2021
1
Answer

If the original line ends in a 3/8” male compression fitting this will cap that off. While shutting off the valve is a good idea it can fail and adding a cap for extra protection is always a good idea.

What do you do when the line to be capped seems to be between a 1/4 and a 3/8

Asked by Gibby October 5, 2020
2
Answers

There are also 5/16" compression fittings, they aren't as common and you may have trouble finding one locally. Just do a search for it.

What is the size of thread?

Asked by John August 7, 2020
1
Answer

For this fitting the thread type is 13/16-18UNS-2B.

Can the threaded cap be used to cap off the mixing valve outlet (tub spout)?

Asked by James July 27, 2020
1
Answer

This cap is made to fit male compression fittings. Most shower valves use pipe thread so https://www.homedepot.com/p/Everbilt-1-2-in-OD-Compression-Brass-Cap-Fitting-801139/207176598 may be the appropriate cap. Pleas consult the manual for the shower valve or the manufacturer to verify that the tub outlet is 1/2” male NPT thread.

What size washer do I need for 1/4” cap? I need to cap off a shut off valve.

Asked by John April 22, 2020
1
Answer

The cap is designed to seal without a washer. If needed, pipe dope or a washer may be used to seal when used with damaged fittings.

Is it okay to use this to close a bathroom sink valve permanently

Asked by Kylew361 April 13, 2019
2
Answers

dont see why not.

Do I need a sleeve (like the compression union) or o ring to create a water tight seal?

Asked by El March 11, 2019
1
Answer

This compression cap is designed to fit the outside of tube and close off the end. There is nothing that notes needing additional parts to create a water tight seal.

Can I use this to cap one hot water outlet to dish washer of dual outlet angel valve ?Is sleeve necessory for this?

Asked by Alice December 14, 2018
2
Answers

should be fine

what is the longest you'd recommend using this as a stop gap measure?

Asked by GB June 28, 2018
1
Answer

This Compression Cap can be permanently installed with permanent adhesive, but please consult with a plumber on your particular situation if there are concerns as each situation varies.

These caps don't appear to in (include a gasket or other type seal . Is pipe thread sealant (aka ...

Asked by pete April 8, 2018
4
Answers

For this cap you need a Size 0 faucet washer which is 17/32" Danco Part 35063B or Home Depot Store SKU #828731. Fits snugly inside the cap. Rule of thumb is to hand tighten and then add one full turn with the wrench.

1/4 in. OD Compression Brass Cap Fitting - page 2

Customer Reviews

  • 4.5
    out of 32 reviews
  • 100% recommend this product
Filter by:
Showing 1-10 of 32 reviews
Worked like the description said...
Worked like the description said...
by Mace1r
1 person found this helpful
For capping a 3/8” compression valve
The cap Everbilt 613 289 LFA-105 in combination with a Danco 88569 1/2” OD flat washer seals the valve without a drip. During my renovation, worked like a champ. Bought (3) caps for the toilet and sink with a pack of washers. Valves were frozen and I shut the main off and capped the valves then turned the main back on. Worked without any drip. Thanks for those who recommended a washer.
by Wayne
5 people found this helpful
Bought to cap off valve under sink if I have...
Bought to cap off valve under sink if I have problem and can't fix it to buy myself a bit of time and keep water on in the house
by Zwep
Bought to cap off valve under sink if I have...
Bought to cap off valve under sink if I have problem and can't fix it to buy myself a bit of time and keep water on in the house
by Zwep
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
Everything you need in a brass cap. Tight fit and good gasket. Get one today!
Everything you need in a brass cap. Tight fit and good gasket. Get one today!
by Salesguy
The size was as indicated and fit very well though...
The size was as indicated and fit very well though the other part was more than 30 years old.
by NARAYANASAMY
Worked exactly as described...
Worked exactly as described
by Lumberhack
1 person found this helpful
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by ag
Showing 1-10 of 32 reviews
