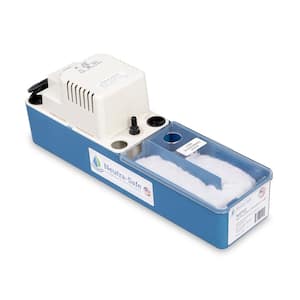

This product is designed to automatically pump condensate water produced by A/C units, HVAC systems and dehumidifiers. High capacity, 20 ft. vertical pump life essential in below elevation condensate removal. This pump is easy to install in both new and existing applications. Powerful. Proven. Reliable.
Dimensions: H 6.25 in, W 11.38 in, D 5.25 in
Product Depth (in.) | 5.25 in |
|---|---|
Product Height (in.) | 6.25 in |
Product Width (in.) | 11.38 in |
Amperage (A) | 1.9 |
|---|---|
Cord Length (ft.) | 6 |
Features | Run-Dry Capable, Self-Priming, Thermal Overload Protection |
Housing Material | Thermoplastic |
Impeller Material | Plastic |
Included | Mounting Bracket, Pump Hookup, With Tank |
Inlet Connection | Plain end |
Maximum Discharge Flow (gallons/hour) | 96 |
Maximum Discharge Pressure (psi) | 10 |
Maximum Horsepower (hp) | 1/30 |
Outlet Connection | Barb/rib |
Product Weight (lb.) | 5.20 lb |
Returnable | 90-Day |
Tank Capacity (gallons) | .5 gal (US) |
Vertical Lift (ft.) | 20 |
Voltage | 120v |
Certifications and Listings | cUL Listed |
|---|---|
Manufacturer Warranty | 12 month limited warranty |
Yes, it has an internal float switch. The switch is a set of "dry" contacts. It can interrupt an external circuit if the circuit is wired through it. It is for low-voltage control circuits, not line voltage. It is normally closed, opens when tank is full.
It's a condensate pump. If the icemaker produces water (odd) and has a hose that water gets expelled by, then place the hose in this pump. If you're thinking of something else, no.
Yes, I am using it for an ice maker
It comes with 3/8" ID vinyl tubing.
The overflow safety switch on this condensate pump is designed to interrupt power to the HVAC system in case of a pump failure. The "system" wire should be connected to the control circuit of your HVAC system that supplies power to the unit. This will typically be connected to the 24V control transformer circuit on the furnace or air handler. Consult the wiring diagram for your specific HVAC system to identify the correct connection point for the safety switch. If you are unsure about any part of this process, it is best to consult a qualified HVAC technician.
I can't answer your question directly, but it has been working very well for me for over a decade with a 10 foot rise and a 30 foot hose.
The included hose is 20 feet long and the pump has a 20-foot vertical lift capacity. Using a 50-foot hose with a 6-foot rise *may* work, but it could also impact the pump's efficiency and potentially cause issues. It's best to stick within the manufacturer's recommended specifications.
