Model #D 06020PS

Store SKU #119881

3/8 in. x 20 ft. Soft Copper Refrigeration Coil Tubing

  • Ideal for gas supply with 836 PSI of maximum pressure
  • Heat resistant up to 150 degrees
  • IAMPO-certified for safety
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

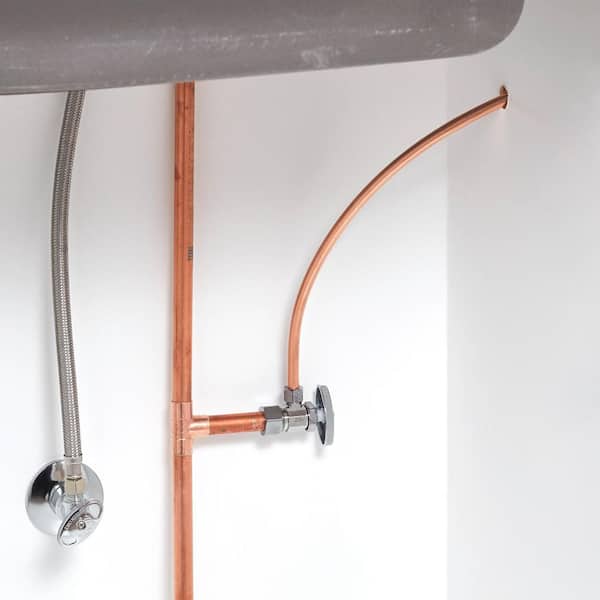

Finish gas supply piping projects quickly and easily with the Everbilt Streamline 3/8 O.D x 20 ft. Copper Soft Refrigeration Coil Pipe. This durable pipe is heat resistant up to 150° F and can withstand up to 836 PSI maximum pressure. Coiled for easy use and storage.
  • Made from durable, soft type refrigeration copper
  • Coiled for convenient handling and storage
  • Maximum working pressure of 836 PSI
  • Resists temperatures up to 150° F
  • Use as gas-supply piping
  • IAMPO-certified for safety
  • Note: product may vary by store

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Actual inside diameter (in.)
0.311
Actual outside diameter (in.)
0.375
Nominal Inside Pipe Diameter (In.)
3/8"
Pipe Wall Thickness (In.)
.125
Product Length (ft.)
20.0 ft

Details

Application
Air Conditioning,Potable Water,Refrigeration
Color Family
Copper
Color/Finish
Copper
Connectivity
Solder
Copper Pipe Shape
Coil
Copper Pipe Temper
Soft
Copper Pipe Type
Refrigerant
Material
Copper
Maximum Flow Rate (gallons per minute)
2
Maximum working pressure (psi)
836.0
Maximum Working Temperature (F)
150.0
Minimum working temperature (F)
0.0
Pack Size
1
Pipe Features
No Additional Features
Pipe or Fitting Product Type
Pipe & Tubing
Product Weight (lb.)
2.68
Returnable
90-Day

Warranty / Certifications

Certifications and Listings
IAPMO Certified,NSF Listed
Manufacturer Warranty
1 year

Questions & Answers

17Questions21Answers

Does this product meet the criteria for Type M Copper? If so, can you provide that specification?

Asked by Tim April 15, 2021
1
Answer

Hi Tim, this copper tube is designed for refrigeration applications and is not Type M. We hope this helps with your purchase.

My tubing arrived with a kind in the hose - is there a solution to getting flare nuts onto the tube before flaring the tube?

Asked by bluestar January 26, 2021
3
Answers

Sadly, there can be a kink left in the tubing by the machine that turns it into a coil as it grabs the end of the tubing. Usually, the best thing to do is square up the end using a tubing cutter (like HD SKU 1003067549) to take off the kink and prepare the tubing for the nut and the swage (to create the flare). Just be sure to ream out the burr so the swage will insert easily and work properly. As always, make sure the installation complies with all code for the installation. No sense doing all the work and then not being able to use it.

can this be used to run an oil line from the tank to the heating unit, under ground ?

Asked by Lee August 17, 2020
1
Answer

Hi Lee, for this type of project we recommend checking local plumbing code prior to beginning. This copper tubing was designed for use with refrigeration applications. We hope this helps with your project.

Which brass fitting for this line? Application: hooking up mini split air conditioning line.

Asked by Martha March 26, 2020
1
Answer

Hi Martha, when connecting with a copper line you will need a fitting with a compression connection. Prior to starting your project we recommend checking local plumbing codes to ensure the right materials are present. We hope this helps with your purchase.

I don't understand how it is that COPPER is rated up to 150deg. It's COPPER?!?!?!

Asked by Joe October 15, 2019
4
Answers

It's not an issue of the copper melting, but, since copper is so malleable, the properties of the metal are affected by heat, and so the pressure ratings of the tubing are tested at 150°F for consistency in the industry and overall safety of the users. On the other hand, I agree that the phrasing of the information in the specifications could be clearer. As a similar issue, many jurisdictions prohibit use of soft copper to distribute flammable gas, but because some do, this tubing is advertised for that purpose. As always, talk to your local building inspector to be sure what code requires in your situation.

can this be used for gas log fireplace

Asked by lftrbhind May 10, 2019
2
Answers

Possibly, but probably not. Most jurisdictions don't allow flammable gas to be distributed in copper. Usually, code requires fitting black steel threaded pipe to carry gas to appliances. If possible, fit the gas line to the appliance using only black steel (and remember a drip leg and service shutoff), although it might be necessary to use a flexible gas supply line to go the last foot or two, but use only flexible lines rated for gas (HD SKU 1002955250). Something to consider is, if you have a fire, even unrelated to the gas appliance, the insurance can deny the claim because of a non-compliant installation, and even if you do get the copper tubing installed so that the appliance operates, if a plumber or inspector happens to see the gas run in copper, they might red-tag the appliance, or even your entire gas system.

can this be use to on the Ductless Mini-Split from the hander to the ac unit ?

Asked by dave February 10, 2019
2
Answers

This type of tubing is rated for pressures over 800 PSI, so it should be able to handle the flow either direction between the heat pump and the air handler, although its diameter is large enough to suggest it be used for the high temperature return to the heat pump. The main issue with using this tubing for one (or both) side(s) of the line pair is that it is not insulated. If you were to wrap it with closed cell pipe insulation, it should be suitable for this use. Please verify whether the code in your area requires a licensed professional to fill the system with refrigerant.

Is this suitable for hot water supply to a dishwasher?

Asked by David49 December 19, 2018
2
Answers

This tubing can be used for domestic hot water distribution through the walls or to an appliance, but it is a bit big for a dishwasher, and a bit small for a sink and a dishwasher. If you are thinking about using this tubing to run from the stop valve to the dishwasher itself, again, this tubing can do that duty. But using braided supply line (SKU #1001274429 for the kit) is often easier, because the hose is much more flexible.

What's the best way to connect this to a 1/2" ID coil pipe (5/8 OD)? 1/2" to 3/8" fittings don't work.

Asked by Marty December 11, 2018
3
Answers

I'm assuming that you are referring to Industrial Pipe Thread (IPT or just PT). Using a brass fitting (known as a reducer) which has compression fittings both sides could work, but HD doesn't list this fitting on HD.com. Alternately, depending on the temperatures and pressures in your application, you might use a "bite" connector (SKU # 1002429610) to join these tubes, or you could sweat (solder) them together using a coupler fitting (SKU #181957). The solder connection allows for higher pressures and temperatures.

Is this tubing ok for LPG?

Asked by Alanbt September 19, 2018
2
Answers

I'd call my local LP utility/provider to be sure. I've only seen black iron pipe, coated aluminum (flex) tubing, or rubber tubing used to transport gas but haven't had any experience with larger LP gas tanks. While copper is easy to work with it's also easily damaged (kinked/cracked/dented) if handled improperly. Might be best to hand this off to a pro.

3/8 in. x 20 ft. Soft Copper Refrigeration Coil Tubing - page 2

Customer Reviews

  • 4.9
    out of 46 reviews
  • 100% recommend this product
Filter by:
Showing 1-10 of 46 reviews
This is the second time I've purchased the 3/8" x 20' copper pipe from Home Depot. I used the fi...
This is the second time I've purchased the 3/8" x 20' copper pipe from Home Depot. I used the first pipe to build a 14 MHz and 10 MHz, vertically polarized, magnetic loop antenna for my amateur radio transceiver and it worked very well with an antenna tuner. The antenna is 14 feet in circumference. I bought a second 3/8" x 20' pipe to build a horizontally polarized, magnetic loop antenna that will work in the same HF bands. After the horizontally polarized antenna is tested, I will combine the two antennas to build a single circularly polarized HF antenna with an RF switch to select either right hand circular polarization or left hand circular polarization. 73, KC1HTT
by Bill
8 people found this helpful
Replaced waterline on swamp cooler easy job....
Replaced waterline on swamp cooler easy job.
by HomeDepotCustomer
Great product. Quick installation...
Great product. Quick installation
by LUIS
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
Very good product at a fair price....
Very good product at a fair price.
by Jim
Worked as expected, very easy to work with....
Worked as expected, very easy to work with.
by JAMES
by Tony
by DIANA
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
Showing 1-10 of 46 reviews
