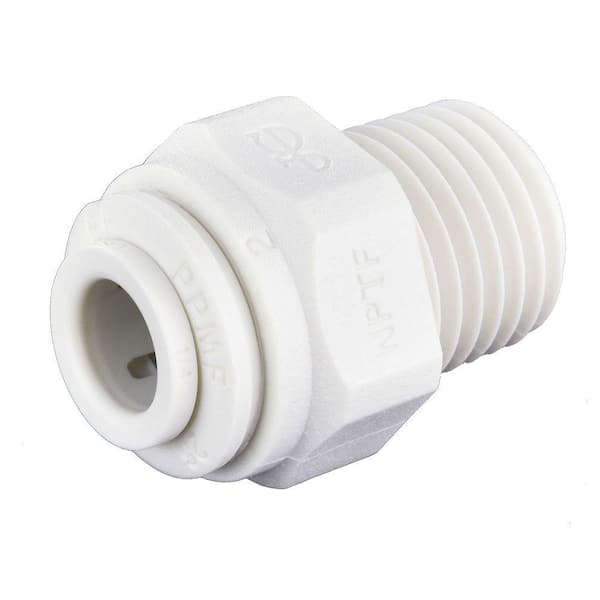

1/4 in. O.D. x 1/4 in. MIP NPTF Polypropylene Push-to-Connect Adapter Fitting

$5.25
  • Made from durable white polypropylene with EPDM O-rings
  • Push-to-connect system offers a reliable, leak-free connection
  • Ideal for use with plastic or soft copper tubing
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
Product Details

About This Product

The John Guest 1/4 in. O.D. x 1/4 in. NPTF Push-to-Connect Male Connector is manufactured from white polypropylene and equipped with EPDM O-rings utilizing John Guest's push-fit technology to make an easy, reliable, leak-free connection. Developed to satisfy a wide range of applications it can be used on plastic or soft copper tubing. To make a connection, the tube is inserted by hand and the unique John Guest collet locking system holds the tubing firmly in place. Disconnection is just as easy and requires no special tools.

Highlights

  • John Guest push-to-connect technology provides a simple, reliable, leak-free connection
  • Manufactured from white polypropylene and equipped with EPDM O-rings
  • Can be used with plastic or soft copper tubing
  • Lead-free, corrosion free, non-toxic and more chemically resistant than other plastics
  • Manufactured with FDA compliant materials and NSF 61 and 51 certified
  • Rated to 150 psi at 70°F and 60 psi at 140°F
  • Possible applications include: reverse osmosis systems, ice makers, home/office coffee and beverage dispensing equipment, hydroponics and aquarium/aquatics
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 300753471

Model # 803219

Store SKU # 778220

Additional Resources

Shop All John Guest

Specifications

Dimensions

Double Fitting Size

1/4" x 1/4"

Fitting 1 size

1/4"

Fitting 2 size

1/4"

Fitting Size Dimensions

1/4" x 1/4"

Product Length (in.)

0.96 in

Single Fitting Size

1/4"

Details

Application

Air

Color Family

White

Color/Finish

White

Compatible Pipe Material

Multi-Purpose

Connection 1

PTC

Connection 2

PTC

Connectivity

Push Fit

Features

Corrosion Resistant, Lead Free, Removable

Fitting or Connector Type

Adapter

Fitting/ Connector Collection

POM (Polyethylene)

Material

Polypropylene

Maximum working pressure (psi)

150

Maximum Working Temperature (F)

140

Pack Size

1

Pipe or Fitting Product Type

Fittings & Connectors

Product Weight (lb.)

0.0077 lb

Reducing Fitting

No

Returnable

90-Day

Warranty / Certifications

Manufacturer Warranty

12 Months

Questions & Answers

6Questions
caret
Q:Will a metal braided supply line attach to the male end of this fitting?
by|Nov 22, 2023
1 Answer
Answer This Question

A:  Hi Alvin, The John Guest 1/4 in. O.D. x 1/8 in. MIP NPTF Polypropylene Push-to-Connect Adapter Fitting will not connect to a braided supply line. If you have any more questions you can call tech support at 877-700-4242. Kind regards,

by|Nov 28, 2023
    caret
    Q:Can this be used with brass fitting to connect with ice maker?
    by|Oct 1, 2023
    1 Answer
    Answer This Question

    A:  Hi April, The John Guest 1/4 in. O.D. x 1/4 in. MIP NPTF Polypropylene Push-to-Connect Adapter Fitting has NPTF threads. When connecting to an ice maker they usually have compression threads. You would want to verify with your refrigerator manufacturer. I've attached the part number of a part that may possibly work for you. (PP3208U7W-US) If you have any questions you can call tech support at 877-700-4242. Kind regards,

    by|Oct 2, 2023
      caret
      Q:These are 1/2 in O.D. So, what size pipe works with it?
      by|Sep 13, 2022
      2 Answers
      Answer This Question

      A:  This John Guest 1/2 in. O.D. x 1/2 in. MIP NPTF Polypropylene Push-to-Connect Adapter fitting will work with any soft or hard tubing with a ½” outer diameter. Vinyl tubbing generally lists inner and outer diameter and copper tubing size refers to the outer diameter.

      by|Sep 14, 2022

        A:  Hi, The John Guest 1/2 in. O.D. x 1/2 in. MIP NPTF Polypropylene Push-to-Connect Adapter Fitting works with 1/2" O/D tubing that meet the following requirements. Tube Types Plastic Tube - Polyethylene, nylon and polyurethane for soft tubing or thin wall tube we recommend the use of tube inserts. Metal Tube (soft) - Brass, copper or mild steel. Metal Tube (hard) - We do not recommend John Guest fittings for hard metal or chrome plated tubes. For stainless steel and other polished metal tubes we recommend the use of SuperSeal fittings. If you have any more questions or need help selecting the correct product you can call tech support at 877-700-4242. (Kind regards,)

        by|Sep 14, 2022
          caret
          Q:Does this product has a bad plastic odor?
          by|Aug 20, 2022
          2 Answers
          Answer This Question

          A:  Hi, The John Guest 1/2 in. O.D. x 1/2 in. MIP NPTF Polypropylene Push-to-Connect Adapter Fitting should not have a plastic odor. If you have any more questions please call tech support at 877-700-4242 so we can assist you. (Kind regards,)

          by|Aug 22, 2022

            A:  Please return this item back to any local Home Depot store within 90 days of purchase for the John Guest 1/2 in. O.D. x 1/2 in. MIP NPTF Polypropylene Push-to-Connect Adapter Fitting.

            by|Aug 24, 2022
              Showing 1-4 of 6
