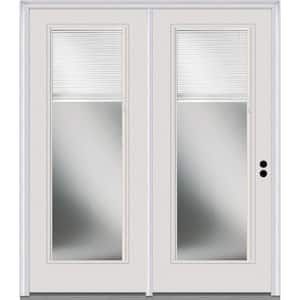

63 in. x 81.75 in. Clear Low-E Glass Internal Blinds Primed Fiberglass Prehung Left Hand Full Lite Stationary Patio Door

(12)Questions & Answers (25)
$246800
Apply Now
$undefined.00 /mo* suggested payments with months* financingApply Now
  • 4-9/16 in. wide frame for 2 in. x 4 in. wall construction
  • Features internal mini-blinds that make glass cleaning a snap
  • Limited lifetime warranty
  • View More Details
Store
0 in stock
caret

Product Details

MMI Door Fiberglass Patio Doors are built to last and can add substantial curb appeal to your home. This fiberglass smooth patio door unit comes with our MSystem 2 Warranty on the Door Component and the Base Prehung System as well as a 10-year warranty on the Glass Lite. All of our fiberglass smooth patio doors are virtually maintenance free and will not warp, rot, dent or split. Our prehung door unit (called the MSystem) seals out the weather and practically eliminates air and water infiltration all together. Door size is 60 in. x 80 in. Unit dimension is 63 in. x 81.75 in. The suggested rough opening is 63.5 in. x 82.25 in. This unit comes with a 4-9/16 in. wide primed composite frame.
  • Fiberglass reinforced skin with insulated polyurethane core
  • Door slab size: 60 in. x 80 in., (2) 30 in. x 80 in.
  • Overall unit dimension: 63 in. x 81.75 in.
  • Suggested rough opening: 63.5 in. x 82.25 in.
  • Patio unit has one active door and one inactive door
  • Prehung on a 4-9/16 in. primed composite frame with matching brickmould attached
  • Frame is 100% composite poly-fiber material that will never warp, splinter or rot
  • Prehung unit comes with 3 satin nickle hinges, fully weatherstripped with one continuous sill running the entire width of the unit
  • Glass description: Internal white blinds are encased in clear, tempered, Low-E glass
  • Patio door unit comes primed, ready to paint
  • Center-hinged left-hand inswing
  • When viewed from the exterior of the home, the door on the right side is active, hinges are on the left and the door swings into the home
  • Active door and frame are prepped for both entry knob and deadbolt; 2-1/8 in. bore diameter with 2-3/4 in. backset (locks sold separately)
  • Patio unit is center hinged with one active door; screen can be attached to sill; screen not included
  • Will meet or exceed federal guidelines for energy efficiency (where and if applicable)
  • Return Policy
caret

Specifications

caret

Questions & Answers

25Questions
caret
Q:Do the blinds tilt and go up and down as well?
by|Jan 29, 2023
1 Answer
Answer This Question

A:  Yes, the blinds raise, lower and tilt.

by|Jan 30, 2023
    caret
    Q:Is the unit dimension the outside to outside measurement of the brickmold, or of the jamb itself?
    by|Jan 22, 2023
    1 Answer
    Answer This Question

    A:  The unit dimension is the outside-to-outside dimension of the frame. For brickmould dimensions, just add 2.5" to the unit width and 1.25" to the unit height.

    by|Jan 23, 2023
      caret
      Q:the unit says LOW-e glass and internal mini blinds. Could you clarify if the glass is argon filled ? If not can that be requested with internal blinds?
      by|Jul 11, 2022
      1 Answer
      Answer This Question

      A:  Yes, the space between the glass panes is filled with argon and thermally sealed.

      by|Jul 12, 2022
        caret
        Q:do you have any screens for these doors
        by|Jan 31, 2022
        2 Answers
        Answer This Question

        A:  They won't sell you the screen separately, but will sell you a unit that includes it for $500 more. Expensive screen!

        by|Jan 22, 2023

          A:  We do not sell patio door screens separately on HomeDepot.com, however we do sell the patio and door with screen included. For the same style door with the screen included, please see model# Z020540R.

          by|Jan 31, 2022
            Showing 1-4 of 25
            caret

            Customer Reviews

            4.3 out of 5
            (12)
            • 4.3
              out of 12 reviews
            • 67%recommend this product
            Filter by:
            Showing 1-10 of 12 reviews
            Oct 17, 2018
            The contractors who installed the door said "Oooh - This is a good door.. nice and heavy !"... Th...
            The contractors who installed the door said "Oooh - This is a good door.. nice and heavy !"... The only problem was when we tried to install the Dead Bolt, and the pre-drilled edge hole was off-center by about 1/8" (low and to the side), making it impossible to install the bolt mechanism. I had to router out the hole with a power drill and of course I chewed up the edge of the door in doing that.. an obvious Quality Control Issue at the plant :-( Once we got the deadbolt hole fixed and installed, the door looks and works great and the fiberglass frame should last alot longer than the original builder-grade wooden door that rotted away after 10 years.
            by
            • Verified Purchase
            • Recommended
            2 found this review helpful
            Oct 29, 2019
            Excellent door. We have gotten this door before in...
            Excellent door. We have gotten this door before in Northern Virginia when we replaced an old sliding door and loved it especially if you have pets.
            by
            • Verified Purchase
            Oct 8, 2019
            very well made door...
            very well made door
            by
            • Verified Purchase
            Aug 28, 2019
            Perfect fit. Love the internal blinds. Had no idea that it would come with a channel at top and b...
            Perfect fit. Love the internal blinds. Had no idea that it would come with a channel at top and bottom of exterior for a sliding screen. Cannot find where to purchase the screen and would love to have it but had I known I wouldn't have purchased this door. The raised channel on the threshold hurts bare feet and could trip a person. Should have come WITH the screen or been an added option.
            by
            • Verified Purchase
            Feb 19, 2019
            Ordered them twice, came damaged both times. Terrible, not even...
            Ordered them twice, came damaged both times. Terrible, not even sure why they would send them out that way.
            by
            • Verified Purchase
            Nov 27, 2018
            Super heavy duty seals up tight great design. Dimensions posted...
            Super heavy duty seals up tight great design. Dimensions posted were exact so it went right in the opening. Some factory quality issues:Did not care for the giant staples pounded In to the brick mold for shipping or the grimey hand prints everywhere or the stripped and missing hinge screws.
            by
            • Verified Purchase
            Nov 26, 2018
            Quality control
            Door is super heavy duty and well made. Was not thrilled with the huge staple holes for shipping in the gorgeous brick mold that I now have to fill before painting. Could easily used straps instead. Also the grimey hand prints everywhere and the stripped out and missing screws in the hinges that I have to fix and clean. Why is it we don’t Buy American again?
            by
              • Recommended
              Jul 17, 2018
              Love!!!...
              Love!!!
              by
              • Verified Purchase
              Jul 3, 2018
              Would have been excellent if the door frame was wood...
              Would have been excellent if the door frame was wood instead of MDF. Really like the built in mini-blinds.
              by
              • Verified Purchase
              1 found this review helpful
              Jun 26, 2018
              Great door.Call a small football team to help you lift...
              Great door.Call a small football team to help you lift it.
              by
              • Verified Purchase
              3 found this review helpful
              Showing 1-10 of 12 reviews
