Internet #202270553

Model # U248LFCP

Store SO SKU #1000405149

0697285604704

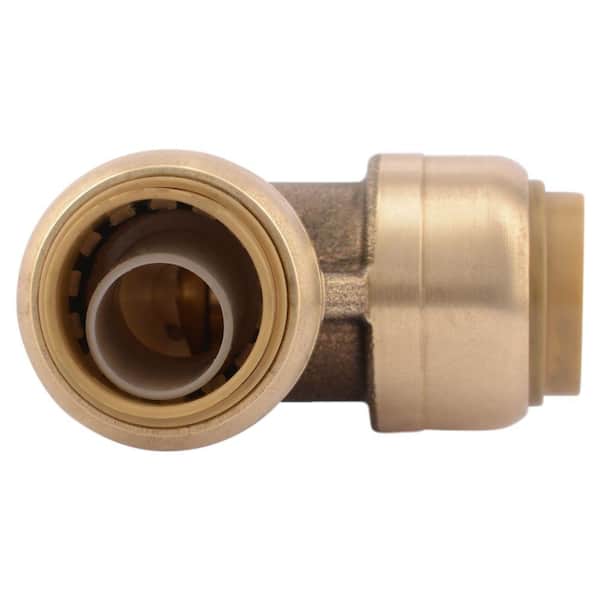

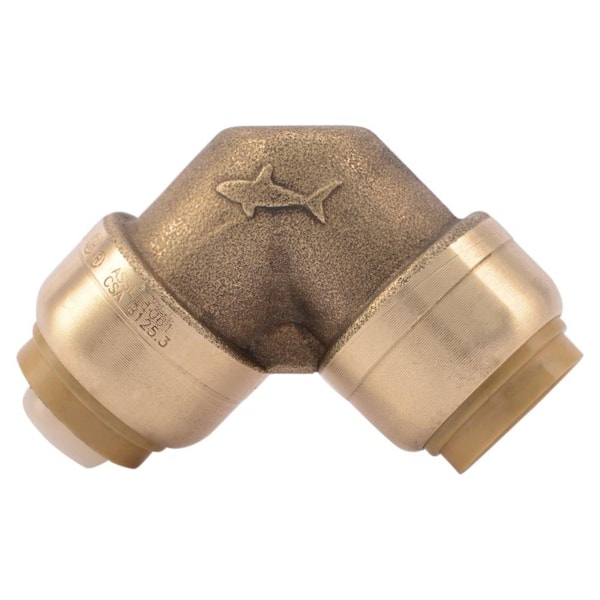

1/2 in. Push-to-Connect Brass 90-Degree Elbow Fitting (10-Pack)

  • Works on any combination of Copper, CPVC, PE-RT, and PEX Pipe
  • Multi Pack provides convenience for the PRO
  • Push to Connect system, quick and easy installation in seconds
$ 55 96
Loading Options
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

Installation requires no use of expensive tools, glues, solders, solvents, or crimping; all you need are pipe cutters.

No Tools Required

Installation requires no use of expensive tools, glues, solders, solvents, or crimping; all you need are pipe cutters.

SharkBite Fittings are compatible with more than 5 pipe types: PEX, Copper, CPVC, PE-RT and HDPE.

Versatility

SharkBite Fittings are compatible with more than 5 pipe types: PEX, Copper, CPVC, PE-RT and HDPE.

Installation is fast and simple within 3 seconds, allowing the job to get done in a snap.

Easy Fast Install

Installation is fast and simple within 3 seconds, allowing the job to get done in a snap. Allows fot the ability to work in tight spaces without having to make structural changes.

Man working with SB

Approved for Underground

Approved for burial applications (wrapping required when burying underground)

SharkBite Fittings are removable with disconnect clips or tongs, which will reduce the risk of installation errors

Error-Proof

SharkBite Fittings are removable with disconnect clips or tongs, which will reduce the risk of installation errors

Installation does not require a dry pipe and there is no need to wait for the pipe to drain, ProLock can be installed on a wet line.

Wet or Dry Applications

Installation does not require a dry pipe and there is no need to wait for the pipe to drain, ProLock can be installed on a wet line.

SharkBite owns the entire manufacturing process, from raw materials to finished product.

Quality you can trust

SharkBite owns the entire manufacturing process, from raw materials to finished product

Full range of fittings and accessories 1/4 in. - 2 in.; Large diameter fittings (1-1/4" - 2") required Stiffener when connection to PEX Pipe.

Versatile Fittings Collection

Full range of fittings and accessories 1/4 in. - 2 in.; Large diameter fittings (1-1/4" - 2") required Stiffener when connection to PEX Pipe

Listed by IAPMO and design certified.

Certified

Listed by IAPMO and design certified and listed to ASSE 1061, CSA B125.3, NSF 372, NSF/ANSI 61, ASTM E84, CAN/ULC S102.2, ASTM, E119, CAN/ULC S101,UL289

Rated to 200°F and 200 PSI

Working Temperature and Pressure

Rated to 200°F and 200 PSI

Made of durable DZR brass

Material

Made of durable DZR brass

Approved for behind-the-wall applications

Behind the Wall

Approved for behind-the-wall applications

25 Year System Warranty

Reliability

25 Year System Warranty

  • Works on any combination of Copper, CPVC, PE-RT, and PEX Pipe
  • Multi Pack provides convenience for the PRO
  • Push to Connect system, quick and easy installation in seconds
The 1/2 in. SharkBite Brass Push-to-Connect 90-Degree Elbow Contractor Pack allows you to make a 90˚ connection to any combination of 1/2 in. copper, CPVC or PEX pipes. SharkBite fittings are the easiest way to join pipes and do not require soldering, clamps, unions, glue or tools to complete the job. Just insert the pipe and the stainless steel teeth bite down and grip tight, while a specially formulated O-ring compresses to create a perfect seal. Disassembly is just as fast using the simple disconnect tool, so fittings and valves can be easily changed and reused. They can even be rotated after assembly for easier installation in tight spaces. SharkBite fittings are certified for potable water supply and hydronic heating applications. Get SharkBite and get a grip on your next plumbing project.
  • Lead-free DZR brass construction for durability and reliability
  • Use to connect to any combination of copper, PEX, CPVC or PE-RT pipes
  • Innovative push-to-connect design makes for quick and easy installation
  • Push-to-connect fittings require no solder, glue, unions or tools
  • Fitting can be rotated on pipe after installation, making it easier to work in tight spaces
  • Designed for potable water distribution as well as hydronic heating applications
  • Corrosion resistant to improve longevity
  • Certified as a manufactured joint and for underground and behind-the-wall applications without access panels
  • Listed by IAPMO and design certified and listed to ASSE 1061/NSF 61
  • Meets all UPC, IPC and cUPC requirements
  • Demount clip allows user to release the fitting from the pipe for convenient installation flexibility (sold separately)
  • Rated to 200°F and 200 psi
  • 1/2 in. Pipe Insertion Depth = 15/16 in.
  • Find additional savings at your local PRO Desk with the Buying Guide
  • California residents see Prop 65 WARNINGS

Product Overview

  • Works on any combination of Copper, CPVC, PE-RT, and PEX Pipe
  • Multi Pack provides convenience for the PRO
  • Push to Connect system, quick and easy installation in seconds
Model #: U248LFCP
Internet #: 202270553

The 1/2 in. SharkBite Brass Push-to-Connect 90-Degree Elbow Contractor Pack allows you to make a 90˚ connection to any combination of 1/2 in. copper, CPVC or PEX pipes. SharkBite fittings are the easiest way to join pipes and do not require soldering, clamps, unions, glue or tools to complete the job. Just insert the pipe and the stainless steel teeth bite down and grip tight, while a specially formulated O-ring compresses to create a perfect seal. Disassembly is just as fast using the simple disconnect tool, so fittings and valves can be easily changed and reused. They can even be rotated after assembly for easier installation in tight spaces. SharkBite fittings are certified for potable water supply and hydronic heating applications. Get SharkBite and get a grip on your next plumbing project.

  • Lead-free DZR brass construction for durability and reliability
  • Use to connect to any combination of copper, PEX, CPVC or PE-RT pipes
  • Innovative push-to-connect design makes for quick and easy installation
  • Push-to-connect fittings require no solder, glue, unions or tools
  • Fitting can be rotated on pipe after installation, making it easier to work in tight spaces
  • Designed for potable water distribution as well as hydronic heating applications
  • Corrosion resistant to improve longevity
  • Certified as a manufactured joint and for underground and behind-the-wall applications without access panels
  • Listed by IAPMO and design certified and listed to ASSE 1061/NSF 61
  • Meets all UPC, IPC and cUPC requirements
  • Demount clip allows user to release the fitting from the pipe for convenient installation flexibility (sold separately)
  • Rated to 200°F and 200 psi
  • 1/2 in. Pipe Insertion Depth = 15/16 in.
  • Find additional savings at your local PRO Desk with the Buying Guide
  • California residents see Prop 65 WARNINGS

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Compare Similar Products
Brand SharkBite SharkBite SharkBite SharkBite
Name 1/2 in. Push-to-Connect Brass 90-Degree Elbow Fitting (8-Pack) 1/2 in. Push-to-Connect Brass 90-Degree Elbow Fitting (10-Pack) 3/4 in. Push-to-Connect Brass 90-Degree Elbow Fitting (10-Pack) 1/2 in. Push-to-Connect Brass Tee Fitting (10-Pack)
Price
$48.98 /box
$55.96
$66.31
$78.97
Ratings (6) (4) (2) (1)
View Product View Product View Product View Product

Specifications

Dimensions

Double Fitting Size
1/2" x 1/2"
Fitting 1 size
1/2"
Fitting 2 size
1/2"
Insertion Depth (In.)
.95
Product Depth (in.)
9
Product Height (in.)
2.176 in
Product Width (in.)
8 in

Details

Application
Potable Water
Bend Degree
90 Degree
Color Family
Brass
Color/Finish
Brass
Compatible Pipe Material
Multi-Purpose
Connection 1
PTC
Connection 2
PTC
Connectivity
Push Fit
Features
Removable
Fitting or Connector Type
Elbow
Fitting/ Connector Collection
Brass
Material
Brass
Maximum Working Temperature (F)
200
Maximum working pressure (psi)
200.0
Pack Size
10
Pipe or Fitting Product Type
Fittings & Connectors
Product Weight (lb.)
0.191lb
Reducing Fitting
No
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
For warranty information on this product, please call our Internet Customer Service Center at 1-877-700-4242.

Specifications

Dimensions

Double Fitting Size
1/2" x 1/2"
Fitting 1 size
1/2"
Fitting 2 size
1/2"
Insertion Depth (In.)
.95
Product Depth (in.)
9
Product Height (in.)
2.176 in
Product Width (in.)
8 in

Details

Application
Potable Water
Bend Degree
90 Degree
Color Family
Brass
Color/Finish
Brass
Compatible Pipe Material
Multi-Purpose
Connection 1
PTC
Connection 2
PTC
Connectivity
Push Fit
Features
Removable
Fitting or Connector Type
Elbow
Fitting/ Connector Collection
Brass
Material
Brass
Maximum Working Temperature (F)
200
Maximum working pressure (psi)
200.0
Pack Size
10
Pipe or Fitting Product Type
Fittings & Connectors
Product Weight (lb.)
0.191lb
Reducing Fitting
No
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
For warranty information on this product, please call our Internet Customer Service Center at 1-877-700-4242.
