#1 Home Improvement Retailer

Internet # 206632043

Model # MBK200

Store SO SKU #516939

200 Amp Double-Pole Main Breaker Converter

$163.67
Apply Now
Pay $138.67 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • For use converting a Main Lug load center to a Main Breaker
  • Fits in Siemens load centers that accept type EQ9685 Main Breaker

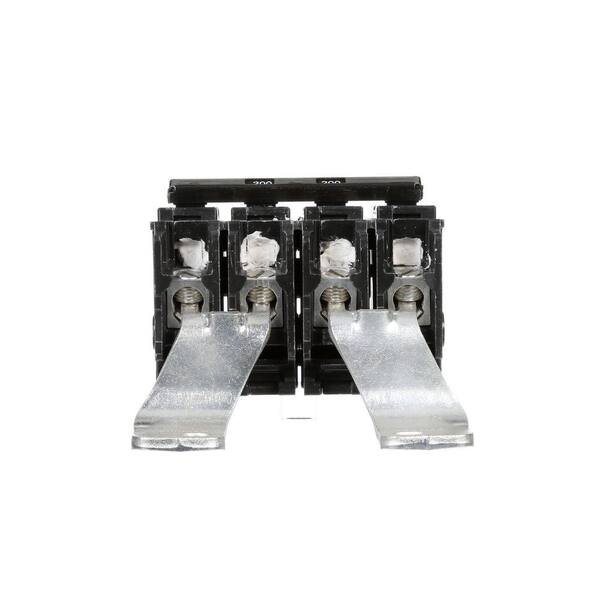

  • Kit includes 2 connector straps with bolts and 2 lug stabs
  • View More Details
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
Product Details

About This Product

This 200 Amp Double-Pole Main Breaker Kit is intended as a replacement for main breakers installed in the Siemens EQ series of load centers. The kit can be installed on Siemens EQ 200 Amp main breaker load centers. The production of EQ load centers was halted in 2002 and replaced with the Siemens Ultimate series load centers. Check the panel wiring diagram to determine the series type. The MBK200 is the equivalent to the EQ9685. This kit will not fit on the Ultimate, ES, or PL series of load centers.

Highlights

  • Converts main lug load centers to main breaker load centers
  • Designed to allow for convertibility and invertiblilty of your panel
  • Straight-in wired design reduces wire cost
  • Bolt-on type
  • For use with 200 Amp EQ type load centers
  • UL listed
  • Accepts #3/0AWG Cu or 250Kcmil. AWG AI wire
  • Use with residential / commercial metering equipment applications
  • Replacement purposes only
  • Learn More About Circuit Breakers Here in our Buying Guide.
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 206632043

Model # MBK200

Store SO SKU #516939

Additional Resources

Shop All Siemens

Specifications

Dimensions: H 3.93 in, W 4.72 in, D 6.30 in

Dimensions

Product Depth (in.)

6.30 in

Product Height (in.)

3.93 in

Product Width (in.)

4.72 in

Details

AIC Rating

22

Breaker Type

Main Breaker

Connection Type

Non-Neutral

Electrical Product Type

Breaker

Included

No Additional Items Included

Interruption Type

Standard Trip

Maximum Amperage (A)

200 A

Mounting Type

Bolt-On

Number of Poles

Double

Pack Size

1

Power Distribution Features

No Additional Features

Product Weight (lb.)

2.20 lb

Returnable

90-Day

Series Type

Not Specified

Trip Unit

Thermal Magnetic

Voltage (V)

120/240 V

Warranty / Certifications

Certifications and Listings

UL Listed

Manufacturer Warranty

Lifetime

Questions & Answers

38Questions
caret
Q:I have an older GOULD breaker. Will this work? the panel is labeled a ITE Pushamatic Load center, model : p330 pqm28c. Attached photo is the breaker. I believe it is starting to fail on one leg of power. Along the side of the breaker , EQ-P type.
by|Apr 7, 2024
1 Answer
Answer This Question

A:  Please send an email to productselection.us@siemens.com for them to provide the UL sub letter stating what breakers can be used.

by|Apr 8, 2024
    caret
    Q:Will this breaker work to replace a EQ9485 breaker on a G4040MB1200 panel If the line side lugs are not damaged?
    by|Mar 3, 2024
    1 Answer
    Answer This Question

    A:  Yes the MBK200 should work see installation instructions link provided https://s3.amazonaws.com/dcc-data-extract/new-delta/asset/Compas/daily/Compas/Instruction%20Sheet%20Quick%20Guide/SIE_IS_MainBreaker_150-225.pdf

    by|Mar 4, 2024
      caret
      Q:Need to downsize main breaker from 200 AMP to 175 AMP due to solar install. Solar company has been looking for the right breaker for almost 2 months. Can the MTK175 be a direct replacement for the ITE EQ9483?
      by|Feb 22, 2024
      1 Answer
      Answer This Question

      A:  The EQ9483 was an old GOULD ITE design - all of our main breakers have been redesigned since then so MBK175 will not work.

      by|Feb 23, 2024
        caret
        Q:Will this fit and ite load center with eq9483 main breaker?
        by|Feb 21, 2024
        1 Answer
        Answer This Question

        A:  This was one of the old main breaker for our old ITE load centers but cannot confirm without the load center part#

        by|Feb 22, 2024
          Showing 1-4 of 38

          Customer Reviews

          4.8 out of 5

          • 4.8 out of 32 reviews
          • 88% recommend this product
          Filter by:
          Showing 1-10 of 32 reviews
          by
          • Verified Purchase
          Exactly what was needed. Arrived quickly.
          by
          • Verified Purchase
          by
          • Verified Purchase
          Perfect replacement
          The old breaker in the panel had lost a leg of power, so I ordered this breaker. it fit perfectly, and worked well.
          by
          • Verified Purchase
          • Recommended
          Work great to replace main breaker in my 1980s Gould...
          Work great to replace main breaker in my 1980s Gould panel. Exact replacement.
          by
          • Verified Purchase
          by
          • Verified Purchase
          Worked Great
          Breaker Worked Great
          by
          • Verified Purchase
          • Recommended
          by
          • Verified Purchase
          Product description online indicated all installation hardware is included. Pic's online showed a...
          Product description online indicated all installation hardware is included. Pic's online showed all lug stabs and bolts. After receiving the part discovered that there was no installation hardware . Contacted Home Depot customer service in an effort to get the missing parts. Was told to contact the Manufacturer. Sent email to manufacturer but have heard nothing! Very dissatisfied! Cannot install without installation hardware.
          by
          Response from SIEMENS Product ExpertApr 22, 2021
          I apologize for the issue that you had with your Siemens 200amp double-pole main breaker. We take great pride in the quality of our products. We would like to understand your specific situation and address any issues you may have. Please feel free to reach out to Siemens Technical Support at 1-800-333-7421. We would like to help troubleshoot the issue you are having or provide a replacement unit if necessary. SIEMENS
          • Verified Purchase
          Easy install no problem...
          Easy install no problem
          by
          • Verified Purchase
          Showing 1-10 of 32 reviews

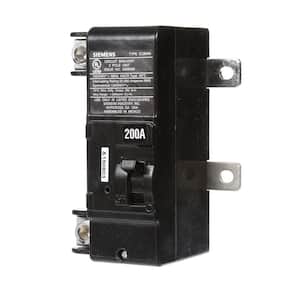

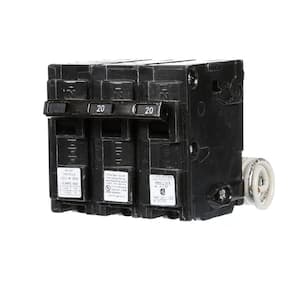

          Compare Similar Items
