LUC ZMAX Galvanized Face-Mount Concealed-Flange Joist Hanger for 2x6 Nominal Lumber

  • Concealed flange provides a subtle, finished look
  • Clean lines for exposed conditions such as overhead decks
  • Designed for greater strength with fewer fasteners to install
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

Deck Glamour Photo

Deck It Out

Strong decks bring beauty and entertaining space to your outdoor living area

Deck Glamour Photo

Make Your Deck Beautiful and Safe

Building a safe, strong deck starts with the proper connectors and fasteners

Photo of a deck being built

Deck Building Tips and Tricks

Installing corrosion-resistant connectors and fasteners helps extend the life of your deck

SDWH Screw being installed into ledger

Ledger connections critical for deck safety

Strong-Drive® SDWH Timber-Hex HDG screw delivers high-strength, wood-to-wood connectivity, such as deck ledger applications

DTT2Z guardrail install

Guardrail Installation Tips and Tricks

Don’t take chances with guardrail connections. DTT2Z deck tension ties fasten guardrails to deck framing.

DTT1Z install

Securing the Deck to the House

Install DTT1Z as a tension tie to meet building codes and eliminate the need to access to the floor joists inside the home

LSCZ install

Take the Step to Secure Deck Stairs

LSCZ adjustable stair-stringer connector offers a concealed connection between the stair stringer and the carrying header or rim board

Tight LUS26Z install shot

Joist Hangers

Provides bearing and uplift resistance

Tight H1 install shot

Hurricane Ties

Ideal for preventing lateral movement of joists

Tight SD screw install photo

SD Connector Screw

The only screw approved with Simpson Strong-Tie connectors

Tight install shot of LCEZ4

Post Caps

LCEZ end post caps provide a post-to-beam connection in new or retrofit deck applications

Tight PBSZ install photo

Post Base

Features a 1 in. standoff to resist wood decay

Stainless-steel connector product shot

Prevent Corrosion

Deck-Drive DWP stainless-steel fasteners are recommended for higher-exposure environments or applications

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field skewable and slopeable options. LUC joist hangers provide a connection between joist and header.
  • Concealed-flange design provides cleaner lines for visible applications such as second-story decks and patio cover
  • Allows connection flush with header or ledger ends
  • Suitable for 2 in. x 6 in. and 2 in. x 8 in. lumber
  • Made from 18-Gauge steel
  • Z-MAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

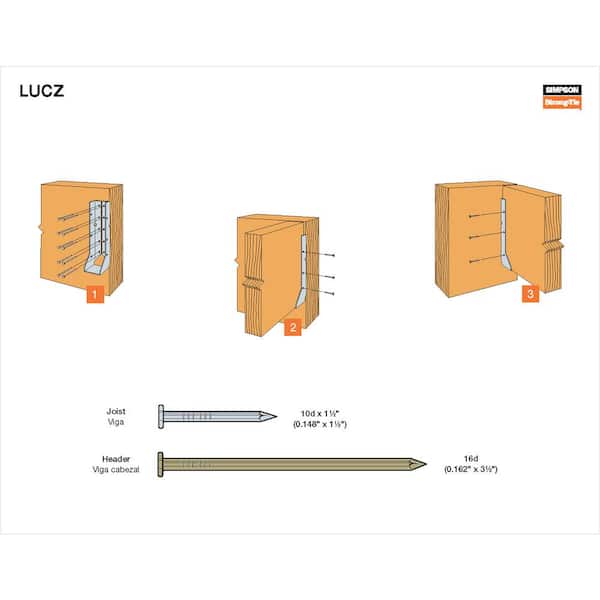

  • Install with 16d common nails in the header and 10d x 1-1/2 in. nails or #10 x 1-1/2 in. Strong-Drive SD screws in the joist
  • Shop all Simpson Strong-Tie here.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Joist Hanger Size
2x6
Product Depth (in.)
4.75
Product Height (in.)
2
Product Width (in.)
3.313 in

Details

Connector Finish
G185 Galvanized
Fasteners Included
Fasteners Not Included
Features
No Additional Features
Gauge
18
Hanger Flange Type
Concealed Flange
Hanger Modifications
None
Material
Steel
Number of Pieces
1
Package Quantity
1
Product Weight (lb.)
0.254
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
Limited Warranty

Questions & Answers

21Questions19Answers

I am using this to attach 2in. x 8in. x 12ft. joist to deck ledger board. Can I use NAILS - a qua...

Asked by Gary June 17, 2020
1
Answer

Yes you can because I use them to attach my 2x4 to my picket fence.

Appropriate for lightly sloped side roof?

Asked by Adam June 1, 2020
2
Answers

what you propose will work. However you should also Cut the joist end at the appropriate angle so that it fits flush against the back of the hanger. That insures that your nails through the sides of the hanger will fully contact the joist.

Can i use this to hang a 2x10 from a 2x8 with the tops flush?

Asked by KitBearington March 29, 2020
1
Answer

These are only 8 inches long and the bottom set of nail holes are roughly 3/4 inch from the bottom. If you hang it off of a 2x8 ledger board you won't be able to use the bottom set or nail holes. There is another tab above that hole that you could punch a hole in to get another row of nails. It should be structurally sound, but, probably not to code.

is there a concealed flange made for a double 2x6?

Asked by steve March 13, 2020
2
Answers

Yes. Search Simpson Strong-Tie and look for a dealer near you. I got mine at Home Depot.

how many ponds resist the piece

Asked by Carlos February 18, 2020
1
Answer

If the question is what is the load bearing strength of this hanger? Simpson Strong-Tie load tables show an allowable load of 830 lbs per joist. See website: https://www.strongtie.com/facemounthangersssl_solidsawnlumberconnector/luc-lu-u-hu-huc_productgroup_wcc/p/luc.lu.u.hu.huc#LoadTables

Can I attach these directly to a concrete wall?

Asked by Young September 28, 2018
2
Answers

I would think with concrete lags you could,

will a rough sawn 2x6 fit in this ? or is it only for 1-1/2" dimensional lumber

Asked by Me February 24, 2018
4
Answers

The LUC26Z is sized for a nominal 2x member (2x6 or 2x8); 1 1/2" actual width. It is not intended for rough lumber. Thank you!

Will spray paint permanently stick to the hanger or does it need to be prepared with an ammonia s...

Asked by Claude December 6, 2017
2
Answers

No it will not stick very well.

Could I use 10D 3in nails on these with load reductions? Any what load reduction will I see? Thanks

Asked by Jesse August 7, 2017
2
Answers

Yes, 10d common nails (0.148" diameter x 3" long) can be used in place of the specified 16d common nails (0.162" diameter x 3 1/2" long) with a 0.84 adjustment factor. Thank you!

Are there approved flat head screw options for fastening to the header so that the joist can fit ...

Asked by FL May 31, 2017
2
Answers

No. Exterior work requires galvanize so use Simpson 2 1/2" it does not take away from the strength of the beam. Yes. Interior work You can use a 2" or greater truss screw. This is as close as you can get.

LUC ZMAX Galvanized Face-Mount Concealed-Flange Joist Hanger for 2x6 Nominal Lumber - page 2

Customer Reviews

  • 4.8
    out of 82 reviews
  • 95% recommend this product
Filter by:
Showing 1-10 of 82 reviews
Building a pool deck and these worked just as described.
Building a pool deck and these worked just as described.
by PonderNonna
1 person found this helpful
Work very well. Works better using the galvanized ring shank nails to attach them to your poles....
Work very well. Works better using the galvanized ring shank nails to attach them to your poles. The screws stick out to far. Even worked well for my 2x8 boards.
by
1 person found this helpful
Nice clean look, I used on a pergola which had exposed joist hangers. These are much cleaner look...
Nice clean look, I used on a pergola which had exposed joist hangers. These are much cleaner looking than traditional joist hangers.
by CJ
1 person found this helpful
Worked well on the end rafter where there was nothing...
Worked well on the end rafter where there was nothing for an outside flange to nail into
by Mlm
1 person found this helpful
Holds the 2x6 ok, but very difficult to install so that 2x6 is even with end piece. I had to use ...
Holds the 2x6 ok, but very difficult to install so that 2x6 is even with end piece. I had to use scrap piece and make pencil Mark's where bracket would go. Even then, I had to remove a couple and start over when it was misaligned.
by Chowsky
1 person found this helpful
Great for fence building.
Great for fence building.
by James
1 person found this helpful
This joist hanger is a much better choice over the conventional flavor when it is to be exposed i...
This joist hanger is a much better choice over the conventional flavor when it is to be exposed in an 'open cover' outside deck or patio, especially when painted prior to installation ... much more pleasing to the eye ... no flange ears
by Repent
2 people found this helpful
These are good joist hangers and save time installing new...
These are good joist hangers and save time installing new decking.
by Tom
Held the2x6 just fine and dandy
Held the2x6 just fine and dandy
by Jaybonze
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
