Model # HOM4080M200PQCSVP

Store SKU # 1003559199

Homeline 200 Amp 40-Space 80-Circuit Indoor Main Breaker Qwik-Grip Plug-On Neutral Load Center with Surge SPD Value Pack

$313.22
Apply Now
Pay $263.22 after $50 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Less wiring, clean gutter, fast installation with Plug-On Neutral
  • Compatible with any Square D Homeline circuit breaker
  • Homeline breakers, cover, aluminum bus bar & HOM250PSPD included
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

Shop for circuit breakers compatible with this breaker box. Image of generic circuit breakers.

About This Product

The Square D by Schneider Electric Homeline Value Pack 200 Amp 40-Space 80-Circuit Indoor Convertible Main Breaker Qwik-Grip Load Center for Plug-on Neutral breakers includes a cover, a selection of breakers and a 50kA Plug-On Neutral Whole House Surge Protective Device. It is a compact and affordable surge suppressor designed for installation into Homeline Plug-on Neutral residential load centers and CSED's. This device reduces surges that might otherwise overwhelm plug strips and damage connected household equipment. It also provides surge suppression for important items that are not compatible with plug strips such as washers, dryers, refrigerators, stoves and lighting. This load center is UL Listed for residential and commercial power distribution. It is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline load centers are engineered for fast installation and wire savings.

Highlights

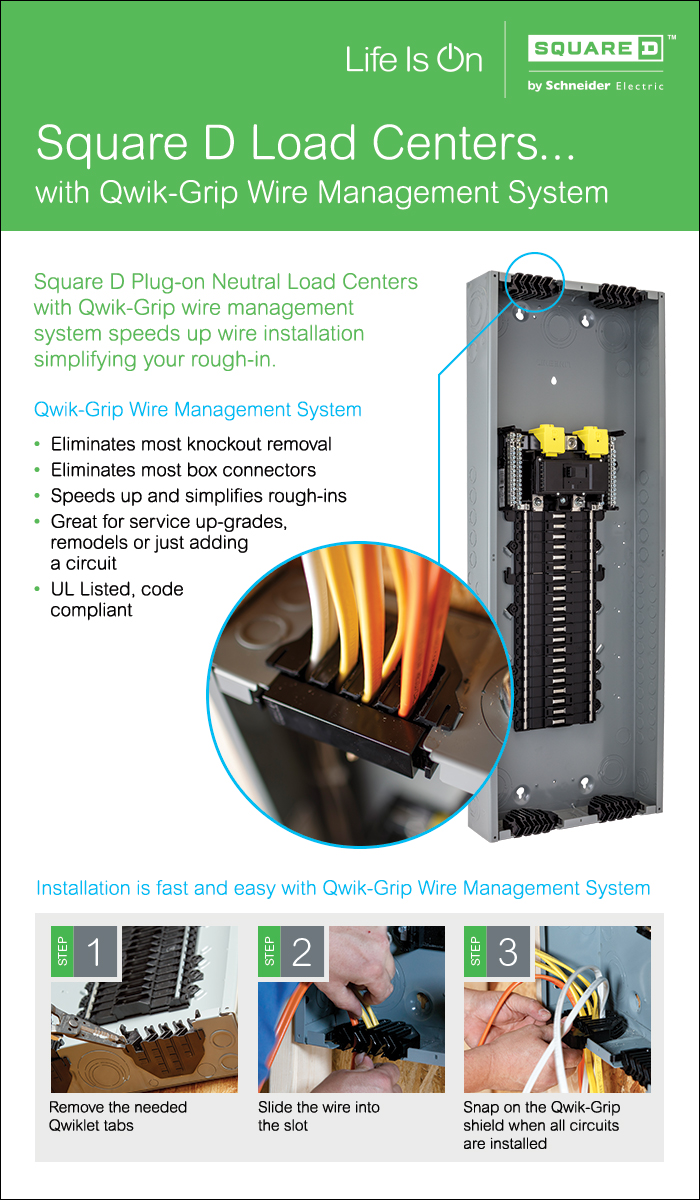

  • Innovative cable entry system quickly grips the branch wires while eliminating steel KO's and cable connectors for a faster installation
  • Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
  • Each pole space accepts full-size, tandem or quad breakers
  • Ground and neutral bars accept up to (3) #10-14 equipment grounds flush/surface indoor cover
  • Includes (3) HOM120 Homeline 20 Amp single-pole circuit breakers, (2) HOM230 Homeline 30 Amp double-pole circuit breakers and a combination flush/surface cover
  • 50,000 Amp/phase maximum surge current backed by our 5-year warranty - $50,000 downstream equipment protection
  • Overhead/underground feed simply by rotating the device before installing
  • Single phase
  • Rated 120/240-Volt AC and 22,000 air short circuit current rating
  • Automatic flush adjusting cover requires less time to complete the job
  • Designed with straight-in mains to save expensive cable and time
  • Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
  • Thermoplastic interior assembly is among the most rugged in the industry
  • Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque screw
  • For protection from damage or theft on the job site, interiors can be easily removed with a single captive
  • 3-ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
  • Learn More About Electrical Panels Here in our Buying Guide.
  • Click here for more information on Electronic Recycling Programs
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 306703485

Model # HOM4080M200PQCSVP

Store SKU # 1003559199

Specifications

Dimensions: H 39.37 in, W 14.25 in, D 3.75 in

Dimensions

Load center depth (in.)

3.75

Load center height (in.)

39.37

Load center width (in.)

14.25

Product Depth (in.)

3.75 in

Product Height (in.)

39.37 in

Product Width (in.)

14.25 in

Details

Breaker Box Type

Main Breaker

Connection Type

Neutral

Electrical Product Type

Load Center and Breaker Kit

Included

Circuit Breaker, Cover

Indoor/Outdoor

Indoor

Load Center Mounting Type

Flush, Surface

Load Center Type

Main Breaker

Maximum Amperage (A)

200 A

Mounting Type

Flush, Surface

NEMA Configuration

NEMA 1

NEMA Configuration Receptacle

No Receptacle

Number of Circuits

80

Number of Pieces

7

Number of Spaces

40

Phase Type

1 Phase

Product Weight (lb.)

40.11 lb

Returnable

90-Day

Series Type

Homeline

Voltage (V)

120/240 V

Warranty / Certifications

Certifications and Listings

UL Listed

Manufacturer Warranty

Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers.

Questions & Answers

2Questions
caret
Q:What's the maximum gauge wire with ground for a 220V circuit that will fit in the qwik-grip slots?
by|Mar 14, 2024
1 Answer
Answer This Question

A:  Hi, Below is an FAQ, with a daigram showing the wire range for every spot. Warm regards. Schneider Electric Customer Care

by|Mar 15, 2024
    caret
    Q:I have the 200amp 40/80 configuration. I will be using it as a sub panel. The only available ground bar kit I see has 23 slots. I will presumably need two of these, one mounting on each side of my panel. What corresponding lug should I use? And do I need to connect a 3/0 line between the two ground bars or are the mounting screws adequate for proper grounding to the secondary bar?
    by|Jan 25, 2021
    1 Answer
    Answer This Question

    A:  For the HOM4080M200PQCSVP you can install the PK27GTA or PK27GTACP ground bar. If you require it, you can install (2) ground bars in the load center and you don't need to connect a line between the ground bars. Regards, Schneider Electric Customer Care.

    by|Jan 26, 2021
