Internet #100169582

Model #HOM250GFICP

Store SKU #713602

Store SO SKU #1000307934

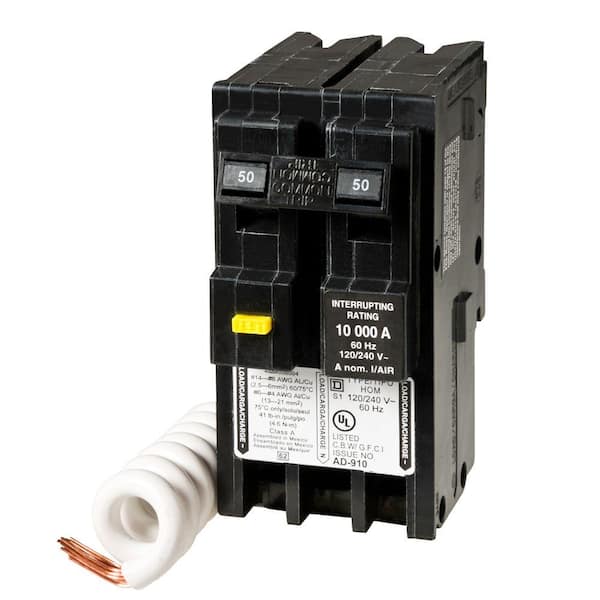

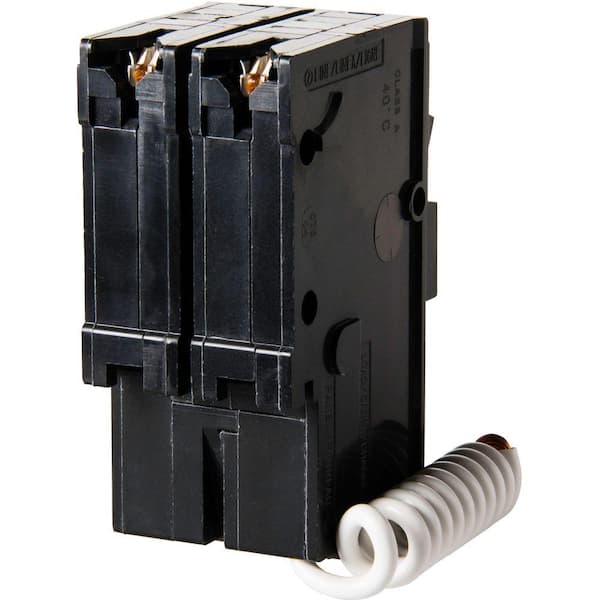

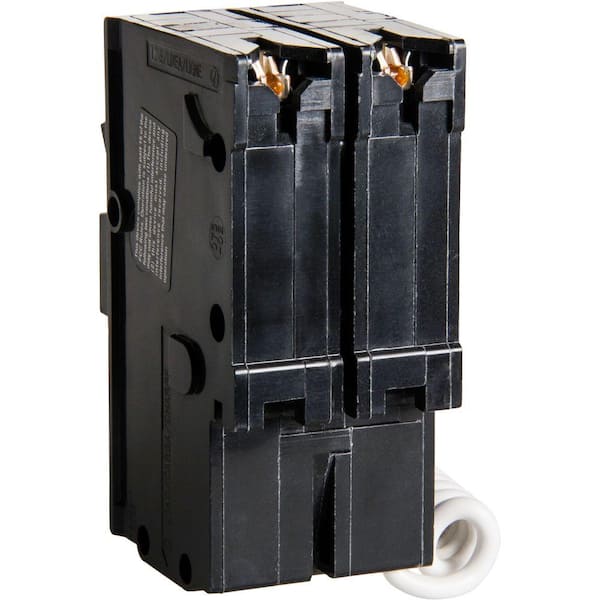

Homeline 50 Amp 2-Pole GFCI Circuit Breaker

  • Protection from overload, short-circuit, and Class A Ground Fault
  • Protects from potential shock hazards in wet locations
  • Compatible with Homeline electrical panel and CSEDs with 2 spaces
  • See More Details

Frequently Bought Together

+
+
Price:
$9400

Product Overview

Square D Homeline series logo


Compatible with Square D Homeline Products

Engineered for value, Square D's Homeline series offers a range of affordable and durable power distribution products.

Get ground fault protection with Square D Homeline GFCI breakers


Ground Fault Circuit Interruptor (GFCI)

GFCIs help protect people from the dangers of electrocution caused by current leaking to unintended paths.

Square D Homeline breakers are 1 in. wide


1 in. Pole Spacing

Our Homeline circuit breakers are designed to be 1 in. per pole space.

Find your amperage: Homeline GFCI breakers range from 15 to 50 amps


Amperage Range from
15-50 Amps

Homeline GFCI circuit breakers are available from 15-50 Amps to fit your electrical needs.

Choose between single-pole or 2-pole Homeline GFCI breakers


Single-Pole or 2-Pole Breakers Available

Use one load center space with single-pole breakers and two spaces with 2-pole breakers.

Complete the project: use with Square D circuit breaker accessories


Use with Homeline Circuit Breaker Accessories

Handle ties and padlock attachments are available for use with Homeline breakers.

The Square D by Schneider Electric Homeline 50 Amp Two-Pole GFCI circuit breaker is designed for overload and short-circuit protection, combined with Class A ground fault protection. Class A denotes a ground fault circuit interrupter that will trip when a fault current to ground is 6 mA or more. This breaker is compatible with Homeline load centers and CSED devices. The ANSI-certified and UL-Listed unit is rated for 120/240 VAC and 10,000 AIR. Homeline circuit breakers are built with the same Square D brand quality you have come to expect at a price that makes them the best value in their class. Homeline circuit breakers are the best in class. Designed exclusively for the residential market, Homeline products offer everything you need to distribute electricity throughout your home.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Double Pole Breakers

current product
Homeline 50 Amp 2-Pole GFCI Circuit Breaker
Homeline 20 Amp 2-Pole GFCI Circuit Breaker - Clear Packaging50 Amp Double Pole Ground Fault Breaker with Self-TestQO 50 Amp 2-Pole GFCI Breaker
BrandSquare DSquare DGESquare D
NameHomeline 50 Amp 2-Pole GFCI Circuit BreakerHomeline 20 Amp 2-Pole GFCI Circuit Breaker - Clear Packaging50 Amp Double Pole Ground Fault Breaker with Self-TestQO 50 Amp 2-Pole GFCI Breaker
Price
$9400
$10400
$10999
$13247
Ratings
(989)
(989)
(156)
(690)
Breaker TypeDouble PoleDouble PoleDouble PoleDouble Pole
Interruption TypeGFCIGFCIGFCIGFCI
Maximum Amperage (amps)50205050
Pack Size1111
Power Distribution FeaturesNo Additional FeaturesNo Additional FeaturesNo Additional FeaturesTrip Indicator
Mounting TypePlug-OnPlug-OnPlug-OnPig Tail
Product Weight (lb.)1.271.16.8580.9
Voltage (volts)120/240120/240240120/240
Electrical Product TypeBreakerBreakerBreakerBreaker
View ProductView ProductView ProductView Product

Specifications

Dimensions

Product Depth (in.)
2.98
Product Height (in.)
3.13
Product Width (in.)
2

Details

Breaker Type
Double Pole
Electrical Product Type
Breaker
Interruption Type
GFCI
Maximum Amperage (amps)
50
Mounting Type
Plug-On
Number of Poles
2
Pack Size
1
Power Distribution Features
No Additional Features
Product Weight (lb.)
1.27
Returnable
180-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
UL Listed
Manufacturer Warranty
Square D warrants its branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the Homeline load center in which it is installed.

Questions & Answers

193Questions77Answers

Is this an AFCI breaker?

Asked by Don October 24, 2018
10
Answers

No, this is not an AFCI breaker and really am not quite sure why you would even suspect it could be.

Is this breaker 100% rated?

Asked by Lyssa77 March 25, 2019
9
Answers

You rate the service and then select the proper breaker. Review the specs for your device before selecting the breaker

If u have 24 spaces and 30 circuit what's the 30 circuit for or what does it mean

Asked by Jeff February 9, 2018
8
Answers

Each space allows for the installation of a single pole breaker, 24 spaces will allow for 24 single pole breakers or 24 sources of power. Also a double pole breaker will take two spaces.

Can I use this in a 200 amp square D main panel to feed a 125 amp sub panel?

Asked by Mw March 28, 2019
8
Answers

Yes but is has to be in the last position in your 200 amp main.

I have an existing 240 V line with a 50 amp breaker. I wonder if this 20 amp breaker could accept...

Asked by Solarguy December 4, 2018
8
Answers

No, #8 is the largest size wire this breaker will accept.

what size breaker and wire to use for an electric stove hook up

Asked by billb February 22, 2016
7
Answers

Read the name plate info on the unit. That will give how many amps the unit draws and then talk to Home Depot about wire and breaker size.

Bought GE 125 amp main lug breaker box. Bought this breaker and cannot install in box. Why?

Asked by Joe January 11, 2020
7
Answers

Hello Joe, Homeline breakers are only UL listed an tested to be used on Homeline load centers. Regards, Schneider Electric Customer Care.

Would this be 30 amps per pole, 60 amps total? Or 30 amps per pole, 30 amps total?

Asked by Dee September 27, 2018
7
Answers

30 amps per pole at 120 volts or 30 amps at 240 volt.

I have an unusual question: Can a double pole breaker, whose two poles are NOT locked together, change a circuit from 240 volts to 120 volts?

Asked by David July 20, 2019
7
Answers

Each pole is 120 volts. If you only use one pole, your voltage will only be 120 volts with ground.

Will the above circuit breaker work in Home line Panel Model number HOMC 24 UC?

Asked by jack August 19, 2018
6
Answers

Yes, this breaker will work in any Square D Homeline panel.

Homeline 50 Amp 2-Pole GFCI Circuit Breaker - page 2

Customer Reviews

  • 989 Customer Reviews
  • 4.8 out of 5 stars overall
98% of customers recommended.
Overall Ratings
5star-icon(833)
4star-icon(110)
3star-icon(22)
2star-icon(8)
1star-icon(16)
Sort By:
The breaker was exactly as described. Fitted properly into the breaker box and it works as a bre...
The breaker was exactly as described. Fitted properly into the breaker box and it works as a breaker.
Was this helpful?
1
0
The perfect replacement for the old one that lasted long enough
The perfect replacement for the old one that lasted long enough
Was this helpful?
1
0
Exactly as expected....
Exactly as expected.
Was this helpful?
0
0
Works like it should
Works like it should
Was this helpful?
1
0
Used this on a 5.5kw electric hot water heater.
Used this on a 5.5kw electric hot water heater.
Was this helpful?
1
0
Great quality at an affordable price! Thanks home depot!
Great quality at an affordable price! Thanks home depot!
Was this helpful?
1
0
Totally satisfaction, I bought this to replace a sub panel breaker that was a generic brand for m...
Totally satisfaction, I bought this to replace a sub panel breaker that was a generic brand for my Home line with recommend that you put the same breaker as your panel.
Was this helpful?
2
0
Solid product. Straight forward install. Common sence. Increased to 30amp for my generator. 10 mi...
Solid product. Straight forward install. Common sence. Increased to 30amp for my generator. 10 minutes max.
Was this helpful?
3
0
This is a good product but like most materials in the trades their way way too expensive. So far ...
This is a good product but like most materials in the trades their way way too expensive. So far I've had no problem with this breaker easy to install. Time will tell.
Was this helpful?
5
0
Just as an FYI before you buy or replace any breakers in your new or existing panel; it's never a...
Quality :
5
Value :
5
Seeds Program Review
(What's this)
Just as an FYI before you buy or replace any breakers in your new or existing panel; it's never a good idea to install a breaker that doesn't match the specs for your panel. In other words only use Square D breakers in a Square D panel and match the type of breaker to what the panel calls for. The same goes for any breaker and panel combo. If you have any doubt contact a qualified electrician. Some breakers will interchange and fit in other panels but they are not approved and may cause real issues down the road. This is especially true when a home is undergoing a home inspection prior to sale. Most inspectors will call out incompatible breakers in a panel and call for there replacement. I have always liked the design of Square D products and they are available at the most locations across the country at very reasonable cost. The breakers are very easy to install and are easy to troubleshoot. When there is a fault these breakers give a very positive loud click when a fault happens and flip into the off position side of the beaker. Since these are so inexpensive, I keep a few different amperage breakers on hand if they ever need replacement at odd hours. Installing these into a panel is quick and easy. Always turn off the main breaker on the panel and test that the power is truly off on each of the breakers before you start (you never know what someone has done before). These breakers slip under plastic lugs in the panel then snaps into the load buss bar(s). Since mine is a twin 15 amp breaker it picks up power from both buss bars to provide 220 volt power. The breaker has nice large terminal screws and wire hold downs. The terminal screw is torqued down to 36 In pounds, per manufacture specs (15 thru 30 amp breakers) with either a large straight screwdriver 3/8" wide blade or a #2 square bit. If you have any reservations about doing this type of work, please contact a qualified electrician to preform the work.
Was this helpful?
13
0
Review this Product
Share your thoughts with other customers
