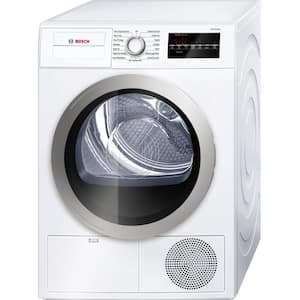

500 Series 24 in. 4 cu. ft. 240-Volt White with Silver Accents Electric Ventless Compact Dryer, ENERGY STAR

  • 4 wire NEMA 14-20 208-240v cord attached, accepts 3 wire cord
  • Condensate Drying – NO DUCTING REQUIRED
  • 15 cycles & 8 options provide customized drying options
  • View More Details

Product Details

Bosch takes care of life's tasks with inspired designs and inventive solutions that help you live more simply. With sleek, functional, compact designs, Bosch washers and dryers fit your home as much as your lifestyle. Surprisingly spacious and efficient, Bosch's compact 24 in. design seamlessly integrates into any laundry space either stacked or side-by-side. Our 500 Series and 800 Series compact dryers are ENERGY STAR qualified. Ultra quiet, these space-saving, compact machines are designed to lighten life's laundry load.
  • 4.0 cu. ft. drum, large capacity for compact dryers, so you can fit a variety of loads
  • 15 dry cycles, including permanent press, permanent press extra dry, permanent press damp, delicates, quick 40, time dry, hand wash / wool, air fluff/no heat, cotton dry, cotton extra dry, towels, sanitize, jeans, bulky large items, quick dry auto and 8 options, including dry level, time dry, finish in, wrinkle block, low heat, signal, start/pause, and child lock
  • Stainless steel structured drum creates air cushions to protect clothes
  • Electronic control offers easy cycle and option selection
  • 4 temperature settings to accommodate delicate to heavy fabrics
  • Moisture sensor prevents wasted energy and over drying
  • Circular design reinforces the sidewall and increases the stability of the dryer, this structure, combined with enhanced insulation, regulates noise levels and reduces vibration by 30%
  • Wrinkle block program reduces creasing or wrinkle build up
  • End-of-cycle signal to notify you when the drying cycle is completed
  • Pedestal is not included and is an optional accessory
  • Extra fine double lint-filter for easy cleaning
  • Sleek, functional, compact design, WTG86401UC dryer has a white exterior with a see-thru door and a silver door ring, perfect design match to Bosch 500 series washer
  • Large LED display with remaining time
  • Sensitive drying system uses warm, mild air to gently dry laundry
  • Energy Star
  • Click here to see the stacking kit with a shelf
  • Click here to see the stacking kit without a shelf
  • Click here to learn more about Eco Options and Energy Efficiency
  • California residents


Dimensions: H 33.25 in, W 23.5 in, D 25 in



Depth With Door Open 90 Degrees (In)
42.87 in
Door Opening Height (In.)
Door Opening Width (In.)
Product Depth (in.)
25 in
Product Height (in.)
33.25 in
Product Width (in.)
23.5 in


Amperage (amps)
13 A
Appliance Category
Appliance Type
Electric Dryer
Capacity - Dryer (cu. ft.)
Color/Finish Family
Control Type
Door Material
Door Shape
Round Door
Door Style
Dry Cycles
Air Fluff, Bulky Items, Cotton, Damp Dry, Delicates, Extra Dry, Permanent Press, Quick Dry, Sanitize, Timed Dry, Timed Dry, Towels and Sheets, Wool, Wrinkle Free
Dryer Drum Material
Stainless Steel Drum
Dryer Features
Adjustable End-of-Cycle Signal, Adjustable Legs, Control Lock, Control Sounds On/Off, Delay Start, Digital Cycle Countdown, Door Window, Front Control, Lint Filter, Sensor Dry, Timed Dry
Dryer Fuel Type
Hoses, Power Cord
Lint Filter Location
Matching Washer Type
Front Load Matching
Number of Drying Cycles
Number of Drying Temperatures
Pedestal Model#
Product Weight (lb.)
99 lb
Stacking Kit Model#
WTZ11400UC and WTZ20410UC
Steam Function
No Steam
Vent Type
Voltage (volts)

Warranty / Certifications

Certifications and Listings
ADA Compliant, CSA Listed, Energy Star, UL Listed
Manufacturer Warranty
1 Year Limited

Questions & Answers

Q:What the maximum load: bed sheets and towels fit into the dryer?
by|Nov 4, 2020
2 Answers
Answer This Question

A:  One queen size set sheets will fit. Towels depend on size/weight. 4 heavier weight bath towels; heavier bath sheets-2. Remember this is a compact machine for smaller spaces and the capacity reflects that. Definitely not a family size washer, but perfect for one or two people.

by|Nov 5, 2020

    A:  Hi Vladimir. Thank you for your question. The 500 Series Compact Dryer, Model # WTG86401UC, even though it is 4.0 cu ft. can dry up to 18 bath towels. For more information on load sizes and drying for this model, here is the link to the Use and Care Manual for this unit: https://images.homedepot-static.com/catalog/pdfImages/09/09d34960-8f29-4cf9-8dca-489b25827d17.pdf

    by|Nov 6, 2020
      Q:Is it using a heat pump? Ambient air coming in heat taken out and cool air exhausted?
      by|Jul 31, 2020
      2 Answers
      Answer This Question

      A:  No

      by|Aug 4, 2020
        1 found this answer helpful

        A:  SubmarineVeteran, No, Current Bosch dryer is condensate drying. Heat pump model available in Nov 2020.

        by|Aug 4, 2020
          1 found this answer helpful
          Q:is there an interior light in the dryer or washer
          by|May 29, 2020
          2 Answers
          Answer This Question

          A:  No

          by|Aug 1, 2020

            A:  Hi Reli. Thank you for your question. The Bosch Compact Washer and Dryer do not have interior lighting.

            by|Jun 1, 2020
              Q:I do not have a Bosch washer. Is there an issue using this dryer with a non-Bosch washer?
              by|May 19, 2020
              2 Answers
              Answer This Question

              A:  Hi starsfan. Thank you for your question. The Bosch Washer and Dryer can be used separately, however our Washer is designed to plug into our Dryer.

              by|May 21, 2020

                A:  No. It’s stand alone. If you have the washer it plugs into the dryer.

                by|Aug 1, 2020
                  Showing 1-4 of 22

                  Customer Reviews

                  4.2 out of 5
                  • 4.2
                    out of 230 reviews
                  • 82% recommend this product
                  Filter by:
                  Showing 1-10 of 230 reviews
                  Design and test of time
                  [This review was collected as part of a promotion.] This dryer has been working really well over the past year. For a condensating dryer the clothes come out nice and dry. I feel the overall design is thorough and I'm confident the unit will last a long time with the correct maintenance. I also appreciate the smaller than average size. Thus far I found only one real flaw and that is the lip that holds the heat exchanger cover in place. It broke off after only a couple of opening and closing for cleaning. The lid stays closed without the lip, so I haven't filed a complaint about it.
                    Bosch Dryer
                    [This review was collected as part of a promotion.] Bosch Dryer WTG86401UC ,exceeded all expectations except one First Very well made machine -Like a state of the art -Controls and drum just made so well The only small negative,it doesn't dry as hot with a small load We have to add more items and occasionally run it twice-The dryer is so nice and compact That I would still rate it a terrific Buy
                      Easy to use
                      [This review was collected as part of a promotion.] Simple to use and verity of options to choose from for fabrics dry temperature.
                        Very Pleased!
                        [This review was collected as part of a promotion.] We have had this, along with the matching Washer, installed for about 8 weeks now. We have been very please with the performance. We installed them in a bathroom and they fit perfectly, not taking up too much room. It took a bit of time to get used to how long certain items take to dry but once we got used to it we've had no complaints.
                          My 500 has improved my laundry and my life
                          [This review was collected as part of a promotion.] My favorite drying cycles on my 500 series are Perm P Damp (0:39), Perm P Dry (0:50), and Perm Press Extra Dry (0:55). The moisture sensor works so well that each cycle ends up finishing significantly sooner and closet-ready -- every load. I've been a Bosch owner since 2011, the days of the US-model Axxis compact vented electric dryer. After 8 happy years with that model, l learned about the benefits and practicality of condensation dryer technology. That made my 2019 purchase of the 500 Series easy. Bosch's reputation over the other Euro brands in the US was an added bonus. No venting, quicker drying times, and few wrinkles. I made the correct choice. And taking monthly care of my 500 will continue to take care of my needs, and for that I say thank you Bosch!
                            Great dryer - requires no venting
                            [This review was collected as part of a promotion.] This dryer is really top of the line. It dries really well, and my clothes always come out fluffy and nice. What is unique about this dryer as well is that it does not require venting, which is handy! It is also energy efficient.
                              After having full size washer/dryers for many years, I was a little worried about buying a compac...
                              After having full size washer/dryers for many years, I was a little worried about buying a compact washer/dryer set (because of smaller capacity). I was also really concerned about the ventless dryer because I had never had one before. I live in a warm and humid climate (Florida), so I was concerned that the ventless dryer might emit a lot of heat and humidity inside my small condo. I'm happy to say that I love both the Bosch 500 washer and ventless dryer. Exceeded my expectations. The washer capacity is fine – smaller than full size but definitely adequate. The dryer is very efficient. The drying time is much faster than what I had heard about ventless dryers and the clothes come out perfectly dry and not wrinkled. The dryer emits very little hot air and dampness, so I am especially thrilled about that. And they both operate very quietly, so if you like in an apartment building or condo, you don't have to worry about noise disturbing your neighbors. The cycle times are longer than traditional washer/dryers, but not that much longer. I really don't even notice because I set it to run and forget about it. Oh, and the stackable compact units gave me lots of new extra space in my laundry room, which is great, too. I would highly recommend the Bosch 500 series washer and ventless dryer to anyone that needs a laundry configuration in a small space, requires ventless technology, and is looking for quiet operation. A note about ventless dryers in general: don't expect the laundry to come out of the dryer 100% dry like traditional heat dryers. They come out with just a tiny bit of dampness, which is actually better for your clothes (less wrinkles, too) and they finish drying naturally within 5-10 minutes after removal from dryer. They come out dry enough to fold or to wear right away, so it's not an issue at all. It's just that most people are used to heat dryers that fry the clothes with super high heat.
                                • Recommended
                                17 found this review helpful
                                The washer and dryer are excellent in all operational sense. Quiet, energy efficient, excellent ...
                                The washer and dryer are excellent in all operational sense. Quiet, energy efficient, excellent washing and drying. Placed in small area stacked. The best thing I ever did. Very happy. Also dryer is 240 volt 3 phase and the washer is 220 single phase this set up uses less power than any 110 volt machines. Cost was high but worth it. Thanks Bosch for your engineering. More than does the job expected.
                                • Verified Purchase
                                • Recommended
                                6 found this review helpful
                                One of the best compact Dryers we have ever bought
                                [This review was collected as part of a promotion.] We bought this Dryer and washer as a combo over 2 years ago. we love the fact it does not need to be vented to the outside. We have had no problems with it. The only minor thing wrong with it in 2 years is a small crack in the window of the door
                                  • Recommended
                                  Great fit
                                  [This review was collected as part of a promotion.] We installed this washer and dryer on a 62 foot sportfishing boat. They brought a fresh look a d didn't take up a bunch of space.
                                    • Recommended
                                    Showing 1-10 of 230 reviews
