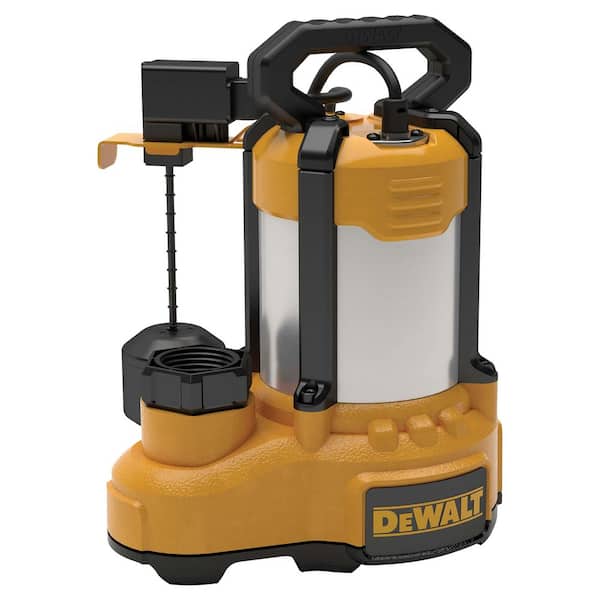

3/4 HP Stainless Steel/Cast Iron Submersible Sump Pump, Vertical Switch

$279.99
Apply Now
Pay $254.99 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Pumps up to 108 GPM / 6500 GPH and 37 Vertical Feet
  • Cast iron, stainless steel construction with cast iron impeller
  • 10-Year Warranty
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
caret
Product Details
  • Pumps up to 108 GPM / 6500 GPH and 37 Vertical Feet
  • Cast iron, stainless steel construction with cast iron impeller
  • 10-Year Warranty
About This Product

DEWALT Submersible Sump Pumps are GUARANTEED TOUGH to meet and exceed the expectations of experienced trade professionals and homeowners alike. This heavy-duty 3/4 HP sump pump will dependably remove water away from the home's sump basin. DEWALT Sump Pumps are built with the highest quality components including a durable cast iron base, corrosion-resistant stainless steel motor housing, 100% copper motor windings for a long-lasting motor and a piggy-back vertical float switch tested to over 3 million on/off cycles. DEWALT Sump Pumps feature a 2 in. FPT discharge with a 1-1/2 in. discharge adapter included. The 3/4 HP DEWALT Sump Pump pumps up to 108 gallons per minute / 6500 GPH and has a maximum vertical lift of 37 ft. DEWALT Pumps are 100% factory-tested and backed by a 10-year warranty.

  • Pumps up to 108 GPM / 6500 GPH, with a maximum vertical lift of 37 ft.
  • Cast iron and stainless steel construction provide ultimate durability and longevity
  • Rugged cast iron impeller prevents clogging and will handle up to 1/2 in. solids
  • Vertical float switch with piggy-back plug tested to over 3 million on/off cycles
  • 2 in. FPT discharge with 1-1/2 in. FPT adapter included
  • Rugged carrying handle and a 10 ft. power cord for quick and easy installation
  • Thermally protected motor resists overheating and increases the life of the pump
  • DEWALT pumps are 100% factory tested
  • Return Policy
  • California residents
     see Prop 65 WARNINGS
Product ID #: 324729931Internet #: 725113627837Model #: DXWP62783

Additional Resources

Shop All DEWALT
caret

Specifications

Dimensions: H 12.9 in, W 10.4 in, D 9.7 in

Dimensions

Product Depth (in.)9.7 inProduct Height (in.)12.9 in
Product Width (in.)10.4 inSwitch-Off Height (in.)2.5
Switch-On Height (in.)8

Details

Amperage (A)10.7 ACord Length (ft.)10 ft
Discharge Flow @ 0 ft. (gallons/hour)6500Discharge Flow @ 0 ft. (gallons/min)108
Discharge Flow @ 10 ft. (gallons/hour)5050Discharge Flow @ 10 ft. (gallons/min)84
Discharge Flow @ 15 ft. (gallons/min)84FeaturesBottom/End Suction, Corrosion Resistant, Solids Handling, Submersible, Thermal Overload Protection
Housing MaterialStainless steelImpeller MaterialCast Iron
Maximum Horsepower (hp)3/4Maximum Pressure (PSI)16 PSI
Maximum Working Temperature (F)120Minimum Sump Basin Diameter11 to 14
Minimum working temperature (F)33Outlet Diameter Connection (in.)2 NPT
Pack Size1Power Type RequiredAC
Product Weight (lb.)27.8 lbPump Switch TypeVertical
Returnable90-DayVertical Lift (ft.)37
Voltage115v

Warranty / Certifications

Certifications and ListingsCSA-US Certified, SSPMA CertifiedManufacturer Warranty10-Year
caret

Questions & Answers

10Questions
caret
Q:Can this be used to drain a pool? If so, can it be plugged into an extension cord?
by|Feb 18, 2024
0 Answer
Answer This Question
caret
Q:can this pump be used with the quick cam connect 25 foot hose provided with the submersible utility pump?
by|Jan 8, 2024
1 Answer
Answer This Question

A:  Hi Mike, As long as the cam lock or quick connecter has a 1-1/2" or 2" male threads, yes it can. Thanks

by|Jan 14, 2024
    caret
    Q:What sump basin depth is recommended?
    by|Oct 11, 2023
    1 Answer
    Answer This Question

    A:  Hi There, The pump will activate at a depth of about 8-1/2" so the basin should be at least 10" deep. Thanks

    by|Dec 19, 2023
      1 found this answer helpful
      caret
      Q:Can this pump handle sewage and not only water??
      by|Sep 18, 2023
      1 Answer
      Answer This Question

      A:  Hi there, NO! This is a sump pump and not designed for sewage. It is made for water. Thanks

      by|Sep 18, 2023
        Showing 1-4 of 10
        caret

        Customer Reviews

        4.7 out of 5
        • 4.7 out of 75 reviews
        • 95% recommend this product
        Filter by:
        Showing 1-10 of 75 reviews
        It was time for a replacement and this just fit
        Our pump is running every few minutes from November through April every year so there is a lot of use. Our previous 1/3 HP pump's float switch was getting stuck occasionally over the past months and almost overflowing the pit several times. We were tired of worrying and decided to replace it. This is a faster pump with the same HP and power consumption as our last one. It's also significantly quieter. Installation was fast and we are very happy with it.
        by
          • Recommended
          Perfect for our needs!
          This is the perfect sumo pump for our house. We had a really wet winter and spring and seemed as if we were always pumping throughout the day. The float control works great and best of all, it's quiet! Install was easy, came with most everything I needed to get it in place and going. I recommend to anyone that battles the problems that wet spring conditions bring, and have a nice dry basement everyday!
          by
          Response from Pedrollo GroupSep 12, 2023
          Thank you for the review! SuperiorPump
          • Recommended
          Upgrading to 1hp DeWalt
          Upgrading to this 1 hp. submersible sump pump from a competitor's 1/2 hp. pump. We have only one sump pit in the basement, and with some storms, the 1/2 hp. pump was forced to run continuously on-off-on-off. It's nerve-wracking knowing that if the pump failed, the basement would quickly flood. Prior to installation, you should know that a check-valve is not included with this particular model. We are replacing the old check-valve as well. We chose this pump for the dependability of the DeWalt brand, for it's unique Stainless steel/cast iron construction, for the motor size and GPM rating, and its impressive 10-year warranty.
          by
          • Recommended
          1 found this review helpful
          Solid Sump Pump From Quality Manufacturer
          This DeWalt sump pump is a bruiser! Just picking it up, you can tell it's a solid pump ...constructed of cast iron and stainless steel, I would expect it to last well beyond its 10 year warranty. You can't go wrong with the DeWalt name ...I've never been disappointed with any of their products. Checking in at 1 hp, I would think this pump would have no trouble clearing out any residential sump well in a matter of seconds. Installation is easy ...the pump even has a built-in anti-airlock hole, so you won't need to drill a hole in your drain pipe. Has a unique piggy-back plug setup so you can bypass the float switch if you need to run the pump manually. Great design and outstanding quality.
          by
          • Recommended
          1 found this review helpful
          Solid and reliable
          This sturdy pump is a reasonably powerful ½ HP. The box clearly lists how many GPM based on discharge height. Note that the pump does NOT come with the discharge hose and discharge check valve, so you’ll need to get PVC or flexible piping in either 2” or 1-½” diameter because this unit has a 2” with a 1-½” adapter. The bigger the discharge hose, the faster the output. The pump does come with a 10-year warranty. The design, as shown in the pictures, is such that the pump can be used manually by not plugging the pump into the pass-through plug for the float valve. I guess it could then be used as a utility pump.
          by
          • Recommended
          Works As Expected and Should Last
          The DEWALT 1 hp. Stainless Steel/Cast Iron Submersible Sump Pump does its job and does it well. The first thing I noticed right out of the box is its weight. It was far heavier than any other plastic pump I've ever owned. Secondly, the float is super easy to set and freely moves up and down with the water level inside the sump. Finally, it was very easy to install for any moderate DIY'er. So, if you are in the market for a new sump pump, I suggest the DEWALT 1 hp. Stainless Steel/Cast Iron Submersible Sump Pump.
          by
          • Recommended
          HEAVY duty, nice features,
          Right out of the box, this made a good impression! The famous DeWalt color scheme here does more than just look good. Thick yellow powder coating will protect steel parts from rust. Any other exposed metal parts are made of stainless steel, which is naturally rust resistant. I noticed the WEIGHT. It's heavy and built for heavy duty.That's why it's so nice to have that LARGE sturdy handle ON TOP. That will make installation and maintenance much easier! This has TWO separate power plugs that can "nest" together. That means you won't usurp two sockets to power this in its normal "automatic mode." But if there is an emergency, you can operate the pump in manual mode by using the separate plug. I like the clear instructions and graphics of the manual. It's concise, clear, and easy to read. Before installation, I checked the motor by plugging it in for a short test run. It runs smooth and quiet; very little vibration. That's always a good indicator of motor quality. I also checked the float switch and cut-off. Everything operates smoothly with no "catches" or "hiccups". The manufacturer claims the cut-off switch and float mechanism is rated for over one million throws! I took these "glamour" photos outside in daylight, just so you can see how nice it looks. My experience with pump motors goes back several decades. This is the nicest looking model I've ever seen.
          by
          • Recommended
          Best Pump on the Market.
          The Dewalt 1HP Stainless Steel/Cast Iron Sump pump is truly a beast. It is heavy and well made, it as a floater that I use sometime and sometimes not. It really helped us with the storms here in California, I put it through it paces and it did a great job. I also use it to flush my tankless water heater and it work great. Would recommend everyone have this in their Garage. It has been a life saver for us.
          by
          • Recommended
          Getting better and better
          This is a beast of a sump pump! So much better than my last sump pump. It is all cast iron and stainless steel with a 1 hp motor. It will dump 117 gallons a minute when in use. That means you can empty a 275 gallon tote in about 2 minutes and 20 seconds. This should give you ample service in even the worst of emergencies. It will pull a full 12 amps when in use so it would be best to have it on its own circuit; otherwise you could be tripping circuit breakers when you need your sump pump running the most. The built in float switch provides for effortless operation. I'm looking forward to NOT ever needing this but I know I am covered should the river rise out of its banks again.
          by
          • Recommended
          Great alternative for basement pumping
          For those interested in country of origin, this product was made in CHINA. Needed a reliable pump with good volume to address a strange basement issue. House has a three level basement, with the lowest level being where the furnace and hot water heater are located. Add to the situation that the house on the farthest side is only 6 feet high, being built over ledge that weeps water when there is a high water level condition. Currently have a two prong response to water issue: sensor and submersible pump. But to test you need to put both units in bucket of water to energize, a rather difficult and timely process. And the submersible pump has plastic impellor blades. This pump is steel, so there is little problem with corrosion. Trigger switch is below the low level of the furnace so water will not flood it. Unit can be easily tested by just forcing the float ball to upper position.
          by
          • Recommended
          Showing 1-10 of 75 reviews
