3/4 HP Pro Snap Action Sump Pump

$309.00
Apply Now
Pay $259.00 after $50 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Efficient PSC motor with powder-coated housing for durability
  • Heavy-duty cast-iron construction offers strength and durability
  • Sturdy impeller can pass 1/2 in. solids without clogging
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
Product Details
EVERBILT Brand Banner
This is a Sump Pump pump.
This pump is made of Cast-Iron material.
This pumps dimensions are 10.6 in. Depth x 10.6 in in. Height x 8.55 in. Width.
The discharge flow rate of this pump @ 0 ft. is 100 GPM.
This pump has a horsepower of 3/4 hp.
This pumps voltage is 115v.

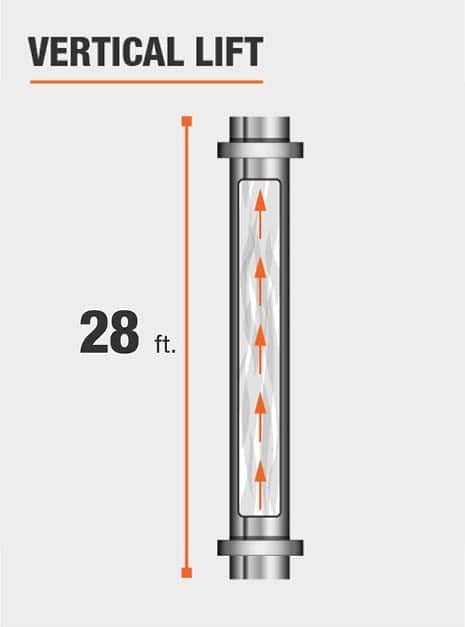

This pump has a vertical lift of 28 feet.
The warranty on this pump is 3 Years.
Illustrations may vary from actual product.

About This Product

The Everbilt 3/4 HP submersible sump pump is constructed of heavy-duty cast iron and features a PSC motor for energy efficiency and savings. The fasteners for the HDS75 are corrosion resistant stainless steel and the pump is protected by a powder coated epoxy finish. The Everbilt HDS75 is engineered to pass a 1/2 in. solids and features a vortex non-clogging impeller making it an ideal pump for sump, effluent and dewatering applications, such as basement sumps, mound systems and septic tanks.

Highlights

Product Information

Internet # 308300784

Model # HDS75

Store SKU # 1004120345

Store SO SKU #1004032705

Specifications

Dimensions: H 10.6 in, W 8.55 in, D 10.62 in

Dimensions

Product Depth (in.)

10.62 in

Product Height (in.)

10.6 in

Product Width (in.)

8.55 in

Switch-Off Height (in.)

3.2

Switch-On Height (in.)

7.5

Details

Amperage (A)

9.0

Cord Length (ft.)

10

Discharge Flow @ 0 ft. (gallons/hour)

6000

Discharge Flow @ 0 ft. (gallons/min)

100

Discharge Flow @ 10 ft. (gallons/hour)

4800

Discharge Flow @ 10 ft. (gallons/min)

80

Discharge Flow @ 15 ft. (gallons/min)

60

Features

Bottom/End Suction, Corrosion Resistant, Non-Clogging, Self-Priming, Solids Handling, Submersible, Thermal Overload Protection

Housing Material

Cast-Iron

Impeller Material

Cast Iron

Maximum Horsepower (hp)

3/4

Maximum Pressure (PSI)

12.12

Maximum Working Temperature (F)

104

Minimum Sump Basin Diameter

14 1/2 to 17 7/8

Minimum working temperature (F)

32

Outlet Diameter Connection (in.)

1-1/2 FPT

Pack Size

1

Power Type Required

AC

Product Weight (lb.)

33 lb

Pump Switch Type

Vertical

Returnable

90-Day

Vertical Lift (ft.)

28

Voltage

115v

Warranty / Certifications

Certifications and Listings

CSA Certified

Manufacturer Warranty

3 year

Questions & Answers

43Questions
caret
Q:How many gallons per minute will this pump with a height of 10' coming out of the basement and then a 50' run of horizontal pipe? Will be using 1.5" PVC pipe.
by|Apr 10, 2024
1 Answer
Answer This Question

A:  Robert, thank you for the question. In this application you should see around 60 gpm. Best regards Everbilt Customer Service.

by|Apr 11, 2024
    caret
    Q:Can I transition the 1 1/2 discharge to a larger 3" pipe.
    by|Apr 10, 2024
    1 Answer
    Answer This Question

    A:  JohnnyWishbone Thank you for your question. The application is dependent on the head or height that you are pumping. Is this going to be used in a standard basement where your total pumping head is roughly 10'? If so, then yes this will work. If the application is different, we would need to know more information prior to sizing the correct pump. Regards, Everbilt Customer Service

    by|Apr 12, 2024
      caret
      Q:Can this pump be used in a basement sewage pit?
      by|Apr 1, 2024
      1 Answer
      Answer This Question

      A:  WinginIT Thank you for your question. No, this pump is a sump pump. You will need to purchase a sewage pump (we would recommend a ESE50-HD) for a sewage application. Regards, Everbilt Customer Service

      by|Apr 1, 2024
        caret
        Q:I have this setup as an outdoor landscaping sump drain. Is there a recommended way of getting excess water out of the pit after heavy rain? Concerned with stagnant water being a place for insects to breed.
        by|Mar 11, 2024
        1 Answer
        Answer This Question

        A:  This pump is designed to pump down to a water level of 3.2 inches. You will be unable to get the water level further down without getting a separate pump such as a transfer pump or a pump that is designed to pump down to a lower level. Best Regards Everbilt Customer Service

        by|Mar 12, 2024
          Showing 1-4 of 43

          Customer Reviews

          4.2 out of 5

          • 4.2 out of 210 reviews
          • 71% recommend this product
          Filter by:
          Showing 1-10 of 210 reviews
          Junk false advertising
          This pump is supposed to be powder coated and rust proof. After 24 hours my pool is rusted and the whole pump is rusted. Contacted the manufacturer...waiting for a response. Will be returning! It’s definitely not powder coated!
          by
          Response from Everbilt Customer ServiceApr 21, 2020
          The HDS75 is powder coated, and constructed of heavy duty cast iron. Cast iron will rust over time which is normal and it is no different than any pro level cast iron pump. Of course this rust does not rust completely through the heavy duty cast iron which allows the pump to last for years. Lastly, this pump is designed for use in water removal from a basin located in a house (usually in the basement).
          Our customer service department can walk you through the process of selecting the correct pump for all of your applications. In this particular application, we would have suggested a thermoplastic Utility pump (air filled vs. oil filled motor) which is designed for such applications. We would not recommend using a sump pump for this type of application (shorter cord, product not to be used with an extension cord, etc.). This is one of the reasons why The Home Depot carries a wide variety of pumps for different applications. 844-883-1872. Thanks.
            4 found this review helpful
            This submersible pump should be installed by a qualified professional who is knowledgable about w...
            This submersible pump should be installed by a qualified professional who is knowledgable about what these pumps are designed to do and the specs regarding each pump. Each one is different. First, the electrical cord is 10' long and needs to be close to an GFCI outlet rated for the amps. The basin needs to be 14" in diameter however, 20" is better to allow you to work with the pump. The minimum depth is 22" and we went to 24". This pump is hefty at 33 lbs, however it does come with a handle which makes it easy to lower into the basin. The float is adjustible for the amount of water in the basin for shut off. Has an excellent pump action and the discharge allows for 1/2" solids. This pump is going into a driveway channel. We have slab construction, however the driveway slopes to the garage opening. Putting a drainage grate in front wasn't enough so a basin and discharge line to a yard drain is being installed. My contractor assures me that this unit will be perfect for this situation. Instructions are excellent and give detailed diagrams for installation parameters. The diagrams are excellent plus the online manual gives a lot of good information.
            by
            Response from Everbilt Customer ServiceAug 9, 2019
            Thank you for leaving your detailed feedback. You mentioned several key points that could be beneficial to others looking into replacing their sump pump or installing a new one. Thank you.
            • Recommended
            3 found this review helpful
            This review is for the Everbilt 3/4 HP submersible sump pump, Item # 1004-120-345. I have had ot...
            This review is for the Everbilt 3/4 HP submersible sump pump, Item # 1004-120-345. I have had other products from Everbilt and found them to be great. I didn't have a need specifically for a sump pump, but I got this pump as I do have a need to at times remove water from my 20,000 gallon swimming pool; be it to remove all of the water every 3 years, excess rain water or to lower the level to add fresh water to maintain the chemical balance of the pool. And this pump is 'exactly' what I needed. It is a very well built pump designed to last and give years of service. Living in the desert Southwest and it's sun, I tend to avoid plastic items that will be used outside. This pump is manufactured with cast iron and stainless steel. And at 3/4 HP, this pump can really move a lot of water which is exactly what I wanted. Just lower it into the water and the float switch will float up and turn it on. Works great. It does not come with water hoses nor connectors, a separate purchase that I made this morning, but this makes sense considering the many variables of use a pump like this will see. I also suggest a rope tied to the pump handle to raise and lower it instead of using the power cord. I also added a one-way valve on the out fall line to ensure nothing I don't want comes back into the pool. After connecting the proper plumbing pieces for my specific installation,I connected the discharge line and plugged it in. This pump MOVES water. My 20,000 gallon pool level dropped inches in just an hour. Rather impressive. A great sturdy made pump to fulfill many projects for many years. I love it.
            by
            Response from Everbilt Customer ServiceJun 26, 2019
            Phoenixmike,
            Thank you for the detailed feedback. We hope this can help others who are looking to purchase a sump pump in the future.
            • Recommended
            2 found this review helpful
            The sub pump works great, and it was really easy to assemble and put it in the hall
            by
            • Verified Purchase
            Doesn’t work properly.
            by
            • Verified Purchase
            by
            • Verified Purchase
            by
            • Verified Purchase
            Fantastic product. went WAY BEYOND MY EXPECTATIONS!!
            by
            • Verified Purchase
            by
            • Verified Purchase
            Do not buy this product.
            Do not buy this product. It’s poor quality and will fail. It also rust very fast. Home Depot also refused my request to return or exchange it. It’s a hassle to go through the manufacturer. DO NOT BUY THIS PRODUCT.
            by
            Response from Everbilt Customer ServiceApr 1, 2024
            Vera
            We are sorry you had an issue with your pump. This pump is a very high quality pump made out of cast iron. Cast iron is the preferred material (whether that is in a residential or municipal application) due to its' cooling properties for the motor. Yes, cast iron will rust. Can you tell us more on why the store denied your return?
            Regards,
            Everbilt Customer Service
              Showing 1-10 of 210 reviews
