Internet #312075321

Model #SFDPA1-030-045-33

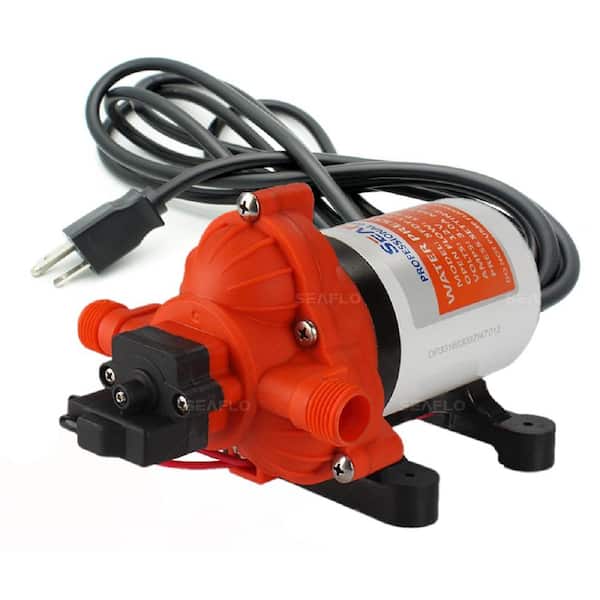

115-Volt 3.0 GPM 0.18 HP Water Pressure Diaphragm Pump

  • Designed for freshwater and saltwater applications
  • Pressure switch enables automatic pump operation
  • Thermally protected 0.18 HP motor ensures safe operation
  • See More Details

Frequently Bought Together

+
+
Price:
$8999

Product Overview

SEAFLO 115-Volt General Purpose 3.0 GPM Automatic-Demand Electric Utility Pump with 4 ft. Power Cord. This general purpose pump can be used for a wide variety of applications. It is designed for Agricultural Spraying, Transferring Liquid Fertilizers, Herbicides, or Pesticides, Fluid Transfer, RV Water Supply, Remote Cabin Water Supply, Industrial Applications, Draining Water Heaters, Draining Aquariums, Pumping Out Basements, Suctioning Water From Rivers or Streams, Transferring Water to an RV, Pumping Out Stock Tanks or other Liquid Transfer Applications. The built-in pressure switch turns the pump on-and-off automatically. If you install a valve, or hose on the outlet side, when you open the valve the pump automatically turns on. When you close the valve the pump will automatically turn off. This is a diaphragm pump, which makes it superior to an impeller pump because there is no impeller to wear out or fail. Also this greatly improves the pumps ability to reach higher pressure levels. This pump is Self-Priming, run-dry safe, and has very quiet operation and low power draw. The inlet and outlet ports are 1/2 in. threaded male fittings. The pump also comes with an intake strainer, and two 1/2 in. barbed fittings. This pump has a built-in check valve which prevents backflow and allows for city water connection if being used in an RV water supply application. This pump is not submersible. Intermittent duty. It comes with a 4-Year Warranty. CSA Listed.
  • California residents
  • Ignition protected

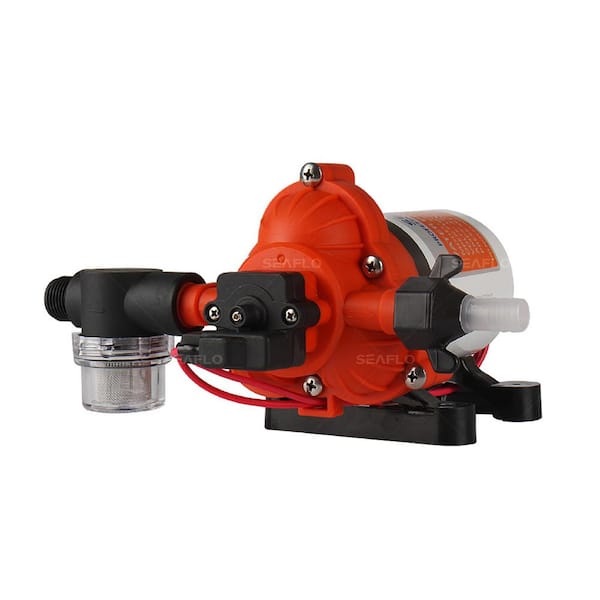

  • 2 barbed fittings and 1 strainer included
  • Valve: EPDM
  • Diaphragm: Santoprene
  • Can be used for salt and fresh water
  • For use with non-flammable liquids
  • 16 AWG
  • Control type: adjustable pressure switch factory set at 45 psi
  • 3 chamber positive displacement diaphragm pump
  • Built-in check valve
  • Housing material: nylon/polypropylene
  • Capable of supplying multiple fixtures
  • Rubber mounting base dampens vibration, no rust and industry standard mounting pattern
  • 9 vertical feet suction lift
  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Transfer Pumps

Pitcher Pump
current product
115-Volt 3.0 GPM 0.18 HP Water Pressure Diaphragm Pump
18-Volt ONE+ Hybrid Transfer Pump12-Volt 0.12 HP 5.5 GPM Water Pressure Diaphragm Pump
BrandWater SourceSEAFLORYOBISEAFLO
NamePitcher Pump115-Volt 3.0 GPM 0.18 HP Water Pressure Diaphragm Pump18-Volt ONE+ Hybrid Transfer Pump12-Volt 0.12 HP 5.5 GPM Water Pressure Diaphragm Pump
Price
$5962
$8999
/box
$10800
$10999
/box
Ratings
(86)
(63)
(426)
(6)
Power TypeMechanicalElectricElectricElectric
Discharge Flow @ 0 ft. (gallons/hour)1180325330
Voltage 115v18v12v
Power Type Required DCAC or DCDC
View ProductView ProductView ProductView Product

Specifications

Dimensions

Product Depth (in.)
7.98 in
Product Height (in.)
4.84 in
Product Width (in.)
5.11 in

Details

Amperage (amps)
1.2
Cord Length (ft.)
4
Discharge Flow @ 0 ft. (gallons/hour)
180
Discharge Flow @ 0 ft. (gallons/min)
3
Discharge Flow @ 10 ft. (gallons/hour)
180
Discharge Flow @ 10 ft. (gallons/min)
3
Features
Run-Dry Capable,Self-Priming,Thermal Overload Protection
Head Pressure (ft.)
120
Housing Material
Metal
Included
Mounting Bracket,Pump Hookup
Inlet Connection
Threaded male
Maximum Discharge Flow (gallons/hour)
180
Maximum Horsepower (hp)
0.18
Maximum Pressure (psi)
45
Maximum Working Temperature (F)
140
Minimum working temperature (F)
33
Outlet Connection
Threaded male
Pack Size
1
Power Type
Electric
Power Type Required
DC
Product Weight (lb.)
4.2 lb
Pump Switch Type
Diaphragm,Pressure
Returnable
180-Day
Vertical Lift (ft.)
120
Voltage
115v

Warranty / Certifications

Certifications and Listings
CSA Certified,CSA Listed,CSA-US Certified,ISO Certified,USCG Certified
Manufacturer Warranty
4 Year Warranty

Questions & Answers

18Questions8Answers

If this pump is below the water line of the intake reservoir, will it create a syphon and continu...

Asked by Tim November 18, 2020
1
Answer

Good morning. By design the diaphragm pump is a check valve itself when its not powered up. Water is essentially "locked" in place when the power is shut off. It will not flow water in either direction.

For the Seaflo SFDPA1-033-035-33 was is the "cut-in" pressure. I am told to pressurize my pressur...

Asked by homesteader October 10, 2020
1
Answer

Hello. The pump we sell now is the 033-45-33. You will set the tank at approx 25-26 psi as the cut in for that switch is 28 psi.

This product says the pump has a 9 ft. vertical lift. Does that mean I can't use it to water anyt...

Asked by AbbyK October 8, 2020
1
Answer

Hello Abby What would happen in the case you mentioning is that the performance of the pump would start to diminish due to "head pressure".

Will it push water through a cabin

Asked by Tracy September 27, 2020
2
Answers

Yes it will push water through cabin if only one floor. Not sure it has enough power to lift to a second floor.

will it run a lawn sprinkler

Asked by john September 10, 2020
0
Answers

Is there a teperature limit. Looking to hook to outdoor wood boiler.

Asked by Eve August 14, 2020
1
Answer

The pump has a max temp of 140. Also realize this is not a continuous rated motor. 5 minutes on, 5 minutes off.

Will this pump a pool out

Asked by danny August 12, 2020
1
Answer

It certainly will but it will take a long time. Its 3.3 gpm or 198 gph.

Can I use this pump to improve the city water pressure in my home?

Asked by Hondo July 19, 2020
0
Answers

Can i use this pump to boost pressure from my 55gal rain barrel to a garden sprayer at hose end 5...

Asked by Denis June 2, 2020
1
Answer

It should do the job with out issues

Why does it work and does not turn off even when the tap is closed?

Asked by PD June 1, 2020
0
Answers
