50 Amp Plasma Cutter Colossal Tech. 3/4 in. Clean Cut 110/230-Volt Compatible DC Inverter Cutting Machine
CUT-50 is a newly designed with the meterCUT-50 is a newly designed with the meter and adjustment attached to the front of the machine and the filter is located inside the machine. The new and improved model makes it more convenient and easier to use. New digitally controlled 15-50 amps Plasma Cutter Machine with advanced inverter technology and high cutting performance. Designed for portable repair work and small business project use, CUT-50 Plasma Cutter cuts a thickness of 3/4 in., and the max severance thickness is 1.0 in. Type: DC Air Plasma Cutter. Supply Power: 110-Volt/230-Volt/60Hz/1-Phase. Rated Input Current: AC 110-Volt/35.7 Amp, 230-Volt/27.1 Amp. Cutter Current Range: 110-Volt at 15-35 Amp, 230-Volt at 15-50 Amp. Nominal DC Open Circuit Voltage: 260-Volt. Output Voltage 104F (40c): 100-Volt. Duty Cycle: 60% at 50 Amp. Efficiency: 85%. Power factor: 0.93. Output Terminal Type: Direct Wire. Cooling Method: Fan Air Cooled. Gas Supply: Clean Dry Oil-Free Air. Gas Pressure Range: 30 psi to 75 psi. Gas Flow: 4.5scfm at 75 psi. Movement Speed: 12.5 inch/min. Recommended Severance Cutting Thickness: Mild Steel 5/8”, Stainless Steel 1/2”, Aluminum 1/2”. Net Weight: 22.0 lbs. Product Size: 17.91 in. x 7.87 in. x 13.86 in. Package Weight: 31.0 lbs. Shipping Size: 20.66 in. x 12.2 in. x 16.53 in. Package Included: 13 Feet (SG55/AG60) Plasma Cutter Gun Assembly, 10 Feet 300A Work Clamp with Cable, 230-Volt to 110-Volt Power Adapter, Air Filter and Pressure Gage (Installed inside the machine), Owner’s Manual.See Full Product Description

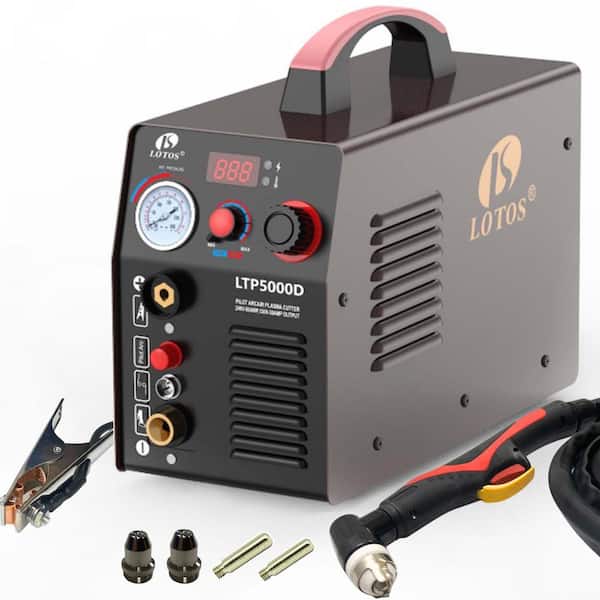

50 Amp Non-Touch Pilot Arc Inverter Plasma Cutter for Metal, Dual Voltage 110V/220V, 1/2 in. Clean Cut
As one of the largest manufacturers of plasmaAs one of the largest manufacturers of plasma cutting, TIG/stick, arc (MMA) welding equipment, Lotos Technology employs the latest high frequency inverter technology, which utilizes MOS-FET to deliver a far more constant, concentrated and precise current to the cutting surface. This technology substantially reduces the size and weight of the plasma cutter and TIG welder. It helps the operator to easily achieve smooth, clean cuts of a wide range of surfaces and materials (e.g. stainless steel, alloy steel, brass, aluminum and other conductive material) with reduced heat and without distortion of metal. Lotos plasma cutters are designed especially for DIY (do-it-yourself) users, while fully accommodating the demands of professional operators.See Full Product Description
APC-60HF, 60 Amp Non-touch Pilot Arc Plasma Cutter, 1.0 in. Clean Cut, 80% Duty Cycle 90-Volt to 300-Volt Wide Voltage
APC-60HF is the newest model of the professionalAPC-60HF is the newest model of the professional digital control plasma cutting machine with built-in advanced inverter technology. Its high-quality design was manufactured in accordance with industrial level standards. The machine has a high-cutting performance and is very user-friendly with a beautiful appearance and exquisite production technology. The instrument and air pressure regulator are installed inside the machine on the panel, making it more convenient and easier to use. The air filter is installed in the machine and is controlled automatically by a solenoid valve, which greatly improves the work efficiency. The normal cutting thickness of APC-60HF air plasma cutting machine is 1.0 inch, and the maximum cutting thickness is 1.2 inches. Specifications - Supply Power: AC 90-Volt to 300-Volt, 50Hz/60Hz; Rated Input Current: 230V/46 Amp, 115V/55 Amp; Cutter Current Range: 230V/20-60 Amp, 115V/20-50 Amp; Nominal DC Open Circuit Voltage: 265-Volt; Output Voltage: 104-Volt; Duty Cycle @ 104F(40c): 80% @ 60 Amp; Gas Supply: Clean Dry Oil-Free Air; Gas Pressure Range: 30-80 psi; Recommended Gas Inlet Flow: 5.5scfm @ 80 psi; Standard Severance Cutting Thickness: 1.0 in.; Maximum Severance Cutting Thickness: 1.2 in.; Movement Speed: 15.0 in./min; Net Weight: 30.0 lbs.; Product Size: 20.0 x 8.7 x 15.7 in.; Included - AP-80 13-Feet / 80-Amp Plasma Torch Gun Assembly; 10-Feet 300A Work Clamp Assembly; 230-Volt to 115-Volt Power Adapter.See Full Product Description
50 Amp Non-Touch Pilot Arc Plasma Cutter, 4/5 in. Clean Cut, 80% Duty Cycle 90-Volt to 300-Volt Wide Voltage
APC-50HF is the newest model of the professionalAPC-50HF is the newest model of the professional digital control plasma cutting machine with built-in advanced inverter technology. Its high-quality design was manufactured in accordance with industrial level standards. The machine has a high-cutting performance and is very user-friendly with a beautiful appearance and exquisite production technology. The instrument and air pressure regulator are installed inside the machine on the panel, making it more convenient and easier to use. The air filter is installed in the machine and is controlled automatically by a solenoid valve, which greatly improves the work efficiency. The normal cutting thickness of APC-50HF air plasma cutting machine is 4/5 inch, and the maximum cutting thickness is 1.0 inches. Specifications - Supply Power: AC 90-Volt to -300-Volt, 50Hz/60Hz; Rated Input Current: 230V/37 Amp, 115V/52 Amp; Cutter Current Range: 20-50 Amp; Nominal DC Open Circuit Voltage: 265-Volt; Output Voltage: 100-Volt; Duty Cycle @104F(40c): 80% @ 50 Amp; Gas Supply: Clean Dry Oil-Free Air; Gas Pressure Range: 30-75 psi; Recommended Gas Inlet Flow: 4.5scfm @ 75 psi; Standard Severance Cutting Thickness: 4/5 in.; Maximum Severance Cutting Thickness: 1.0 in.; Movement Speed: 12.5 in./min; Net Weight: 30.0 lbs.; Product Size: 20.0 x 8.7 x 15.7 in.; Package Weight: 41.0 lbs. Included - AP-80 13-Feet / 80-Amp Plasma Torch Assembly; 10-Feet 300A Work Clamp Assembly; 230-Volt to 115-Volt Power Adapter.See Full Product Description
